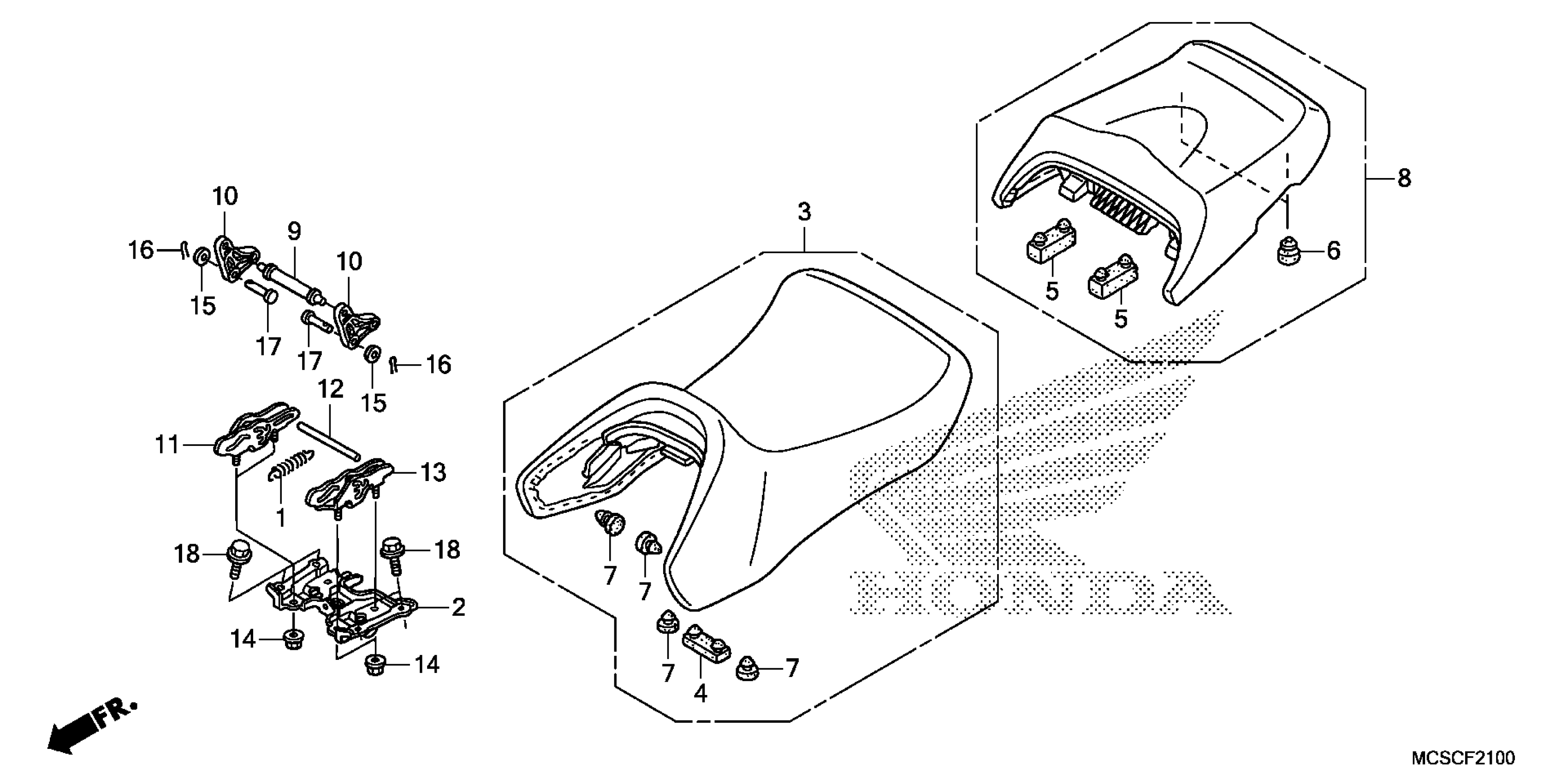

Honda ST1300AAC (13) MOTORCYCLE, JPN, VIN# JH2SC511-DK100001 SEAT Diagram

SPRING B, BRAKE LOCK CABLE RETURN

46510-KJ9-000

$3.68

PLATE, FR. CROSS

50215-MCS-G00

$44.46

SEAT, MAIN

77100-MCS-G00

$302.51

RUBBER, SEAT SETTING

77204-312-000

$4.70

RUBBER B, SEAT SETTING

77205-286-000

$4.92

RUBBER, SEAT CUSHION

77206-GF0-000

$5.07

RUBBER B, SEAT STOPPER

77215-GC2-000

$4.70

SEAT, PILLION

77300-MCS-G00

$224.62

BAR, SEAT ADJUSTER

77531-MCS-G00

$18.83

GUIDE, SEAT ADJUSTER

77533-MCS-G00

$15.80

BRACKET, R. SEAT ADJUSTER

77534-MCS-G00

$17.29

PIN, SEAT ADJUSTER HOOK

77536-MCS-G00

$6.26

BRACKET, L. SEAT ADJUSTER

77537-MCS-G00

$17.29

NUT, FLANGE (6MM)

94050-06080

$0.59

WASHER, PLAIN (6MM)

94101-06800

Unavailable

PIN, SPLIT (1.6X12)

94201-16120

$0.94

PIN A, PILLION STEP

95015-81000

$2.01

BOLT, FLANGE (6X10)

95701-06010-08

$1.46
