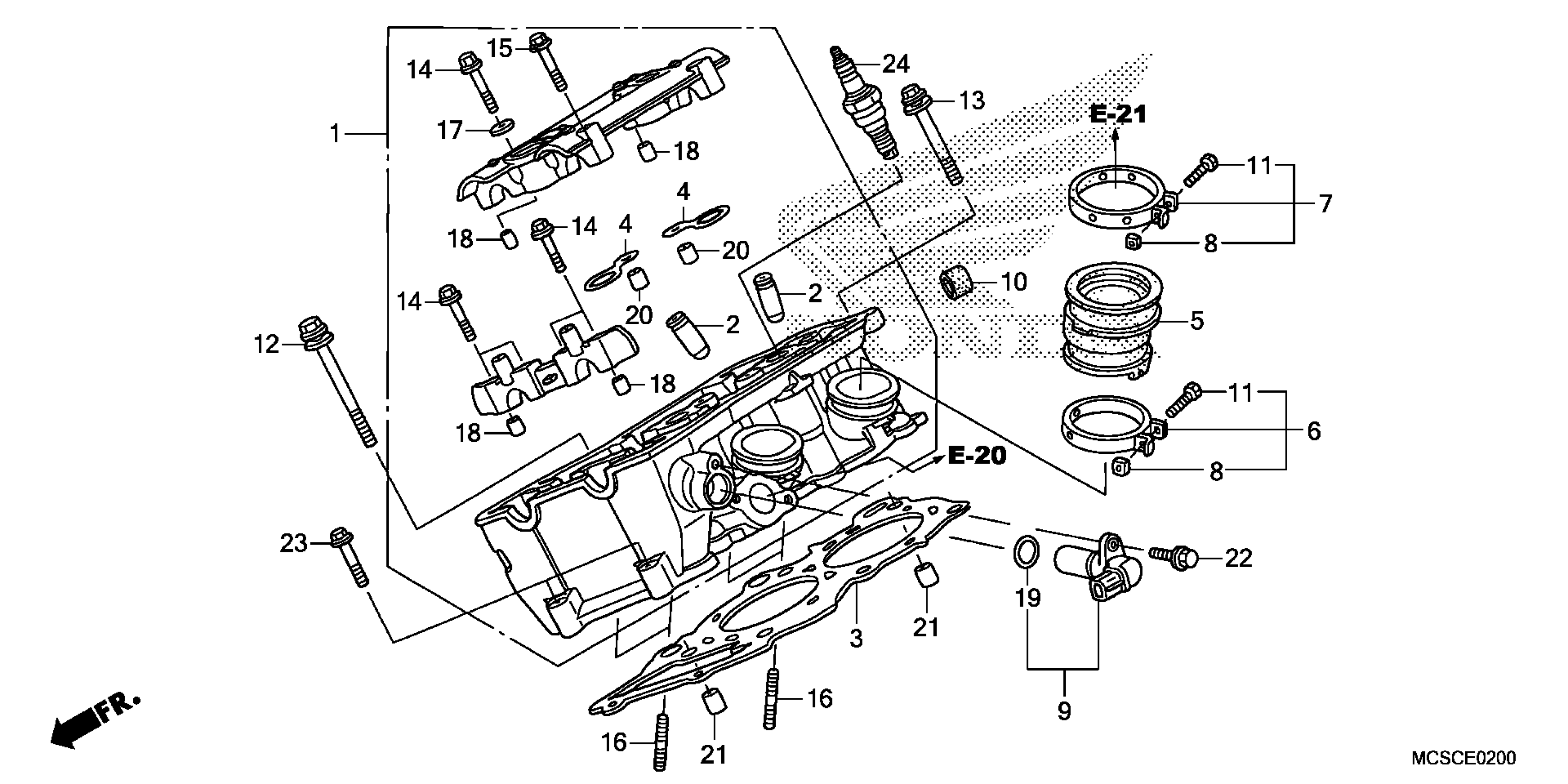

Honda ST1300AAC (13) MOTORCYCLE, JPN, VIN# JH2SC511-DK100001 RIGHT CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY., R. | Use up to Engine SN 2615582

12010-MCS-D80

$980.77

1

CYLINDER HEAD ASSY., R. | Use from Engine SN 2615583

12010-MCS-D81

$966.59

2

GUIDE, VALVE (OVER SIZE)

12205-MCS-305

$15.80

3

GASKET, R. CYLINDER HEAD

12251-MCS-D81

$48.49

4

GASKET, PLUG HOLE

12395-MCS-000

$4.84

5

INSULATOR, THROTTLE BODY

16211-MCS-000

$18.64

6

BAND A, INSULATOR

16217-MCS-000

$3.91

7

BAND B, INSULATOR

16218-MCS-000

$4.52

8

NUT, SQUARE (5MM)

16222-MV4-300

$1.96

9

PICK-UP ASSY.

28810-P7Z-004

$217.70

10

TUBE, BRAKE PEDAL SPRING

46515-MN1-670

$2.97

11

BOLT, RECESSED (5X28)

90005-MAS-E00

$2.91

12

BOLT-WASHER (10X105)

90007-MAT-000

$9.83

13

BOLT-WASHER (10X90)

90007-MCS-000

$5.06

14

BOLT, FLANGE (6X48)

90018-425-000

$3.12

15

BOLT, FLANGE (6X39.5)

90019-MA6-000

$2.80

16

BOLT, STUD (8X24)

90035-MM5-000

$4.76

17

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

18

PIN, DOWEL (8X16) This part replaces 90702-HC4-000.

94301-08160

$1.90

18

PIN, DOWEL (8X16)

94301-08160

$1.90

19

O-RING (16X2.1) (NOK)

91309-PX4-003

$2.80

20

PIN, DOWEL (10X16)

94301-10160

$2.24

21

PIN, DOWEL (12X20)

94301-12200

$2.25

22

BOLT, FLANGE (6X18)

95701-06018-07

$1.48

23

BOLT, FLANGE (6X40)

95701-06040-00

$1.71

24

SPARK PLUG (CR7EH9) (NGK)

98059-57916

$7.24

24

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-57926.

98059-59916

$6.79

24

SPARK PLUG (CR8EH9) (NGK) | (Optional).

98059-58916

$7.31

24

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-58926.

98059-59916

$6.79

24

SPARK PLUG (CR9EH-9) (NGK) | (Optional). This part replaces 98059-58926.

98059-59916

$6.79

24

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-59910.

98059-59916

$6.79

24

SPARK PLUG (CR9EH-9) (NGK) | (Optional). This part replaces 98059-59910.

98059-59916

$6.79

24

SPARK PLUG (CR9EH-9) (NGK)

98059-59916

$6.79

24

SPARK PLUG (CR9EH-9) (NGK) | (Optional).

98059-59916

$6.79

24

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-59926.

98059-59916

$6.79

24

SPARK PLUG (CR9EH-9) (NGK) | (Optional). This part replaces 98059-59926.

98059-59916

$6.79
