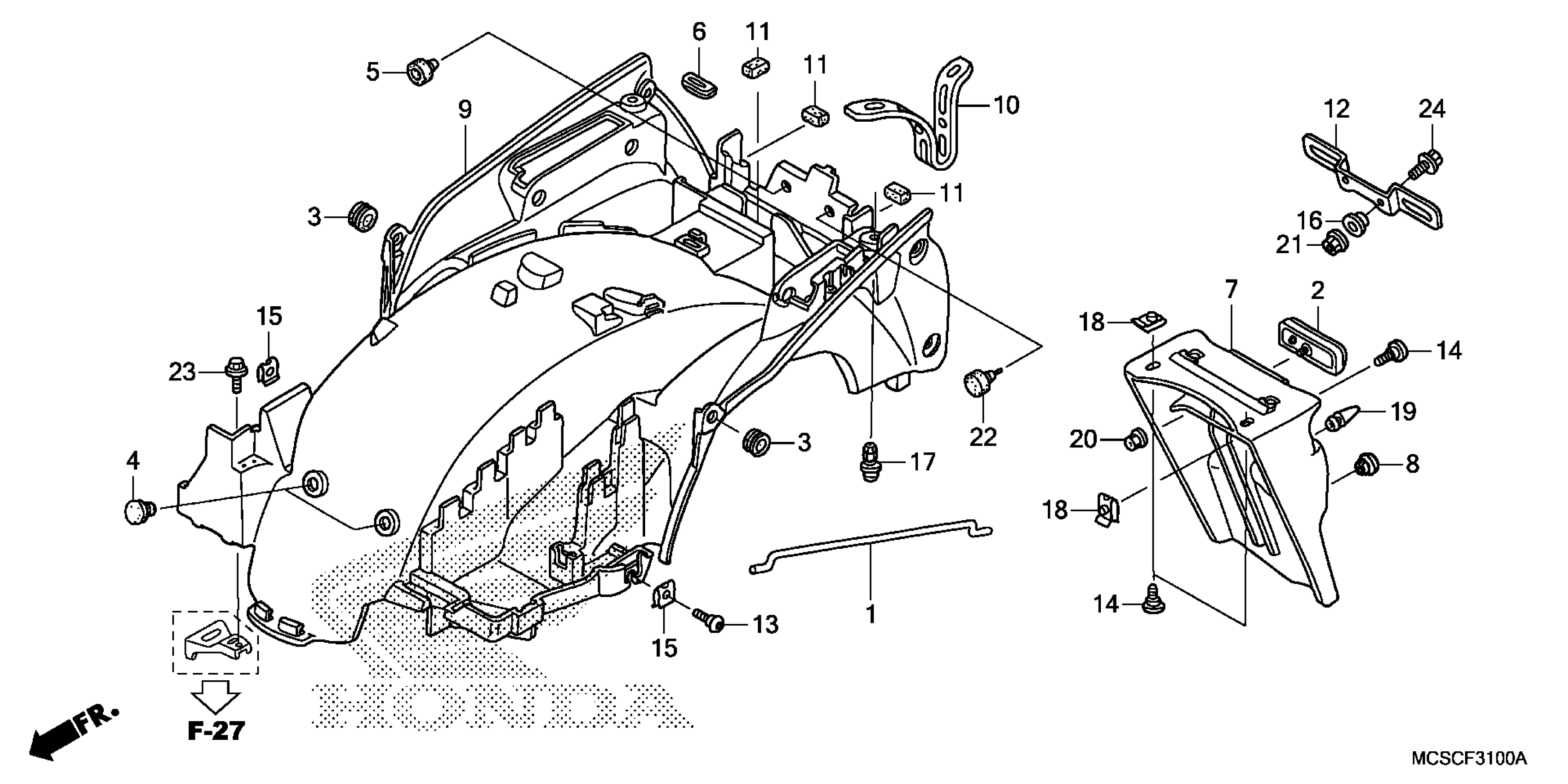

Honda ST1300AAC (13) MOTORCYCLE, JPN, VIN# JH2SC511-DK100001 REAR FENDER Diagram

#

Description
Price

1

ROD, TANK OPEN

17891-MCJ-750

$14.87

2

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.93

3

GROMMET, TUBE

36130-ZA8-801

$2.60

4

PLUG, HOLE

50318-041-600

$2.11

5

RUBBER, SEAT CUSHION

77206-GF0-000

$5.46

6

GROMMET, TOOL TRAY

77309-KK6-000

$2.70

7

FENDER A, RR.

80100-MCS-770

$40.49

8

PLUG, RR. FENDER

80103-192-600

$4.02

9

FENDER B, RR.

80106-MCS-D90

$144.51

10

BAND, UNIT

80109-MCS-D90

$6.97

11

SEAL, RUBBER

83605-MCS-G00

$1.87

12

BRACKET, NUMBER PLATE

84700-MCS-770

$13.59

13

SCREW, SPECIAL (6MM)

90106-MBL-610

$2.23

14

SCREW, SPECIAL (5X12)

90106-MBY-000

$2.67

15

NUT, SPRING (6MM)

90320-747-000

$2.35

16

WASHER, CHAIN SLIDER

90556-KR3-000

$3.08

17

CLIP, SPLASH SHIELD

90657-SB0-003

$5.26

18

NUT, CLIP (5MM)

90677-KAN-961

$4.07

19

PLUG, CONE

90899-KL8-000

$3.26

20

NUT, FLANGE (5MM)

94050-05000

$1.49

21

NUT, FLANGE (6MM)

94050-06000

$1.49

22

RUBBER B, STAND STOPPER

95011-62000

$1.49

23

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

24

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
