Description

Price

1

STAY, RR. BRAKE HOSE

43157-MCS-G01

$10.57

2

PIPE A, RR. BRAKE

43311-MCS-G00

$15.36

3

PIPE B, RR. BRAKE

43312-MCS-G00

$27.29

4

PIPE A, SUB-BRAKE

43321-MCS-G01

$35.48

5

PIPE B, SECOND BRAKE MASTER CYLINDER

43332-MCS-G00

$21.14

6

PIPE C, SECOND BRAKE MASTER CYLINDER

43333-MCS-G00

$42.78

7

PIPE D, SECOND BRAKE MASTER CYLINDER

43334-MCS-G00

$19.46

8

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.39

9

CAP, BLEEDER

43353-461-771

$4.70

10

BRACKET, RR. ABS MODULATOR

43615-MCS-G00

$3.75

11

JOINT ASSY., BLEEDER (TWO-WAY)

45160-MCS-G00

$21.81

12

VALVE ASSY., PROPORTIONING CONTROL

46200-MCS-R01

$420.22

13

STAY, PCV

46210-MCS-G00

$4.28

14

CLIP C, BRAKE PIPE

50304-HE0-003

$3.23

15

MODULATOR ASSY., ABS

57100-MCA-971

$1,320.38

16

SCREW, PAN (6X12)

90106-MAV-000

$1.99

17

BOLT, FLANGE (6X28)

90114-MCS-G00

$1.28

18

BOLT, OIL (10X10.6)

90145-MCA-971

$5.86

19

NUT, U (6MM) (FUSE RASHI)

90301-473-003

$3.79

20

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.12

20

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.12

21

WASHER, OIL BOLT

90545-300-000

$3.72

22

CLAMP, BRAKE PIPE

90651-MAT-000

$3.16

23

CLIP, WIRE

91406-166-000

$3.65

24

BOLT, FLANGE (6X50)

95801-06050-08

$1.03

25

BOLT, FLANGE (6X12)

96001-06012-00

$1.64

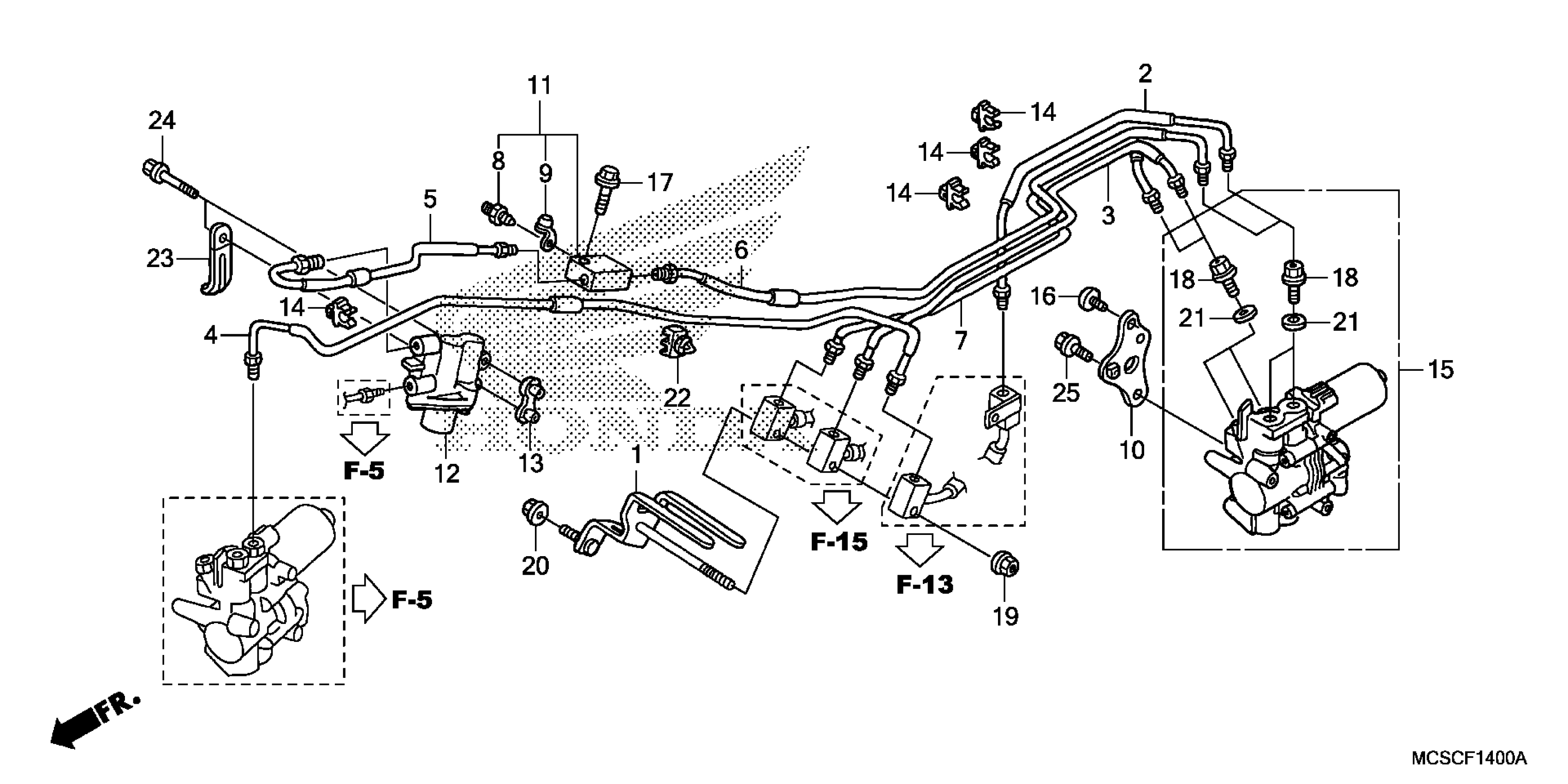

Honda ST1300AAC (13) MOTORCYCLE, JPN, VIN# JH2SC511-DK100001 PROPORTIONING CONTROL VALVE Diagram
