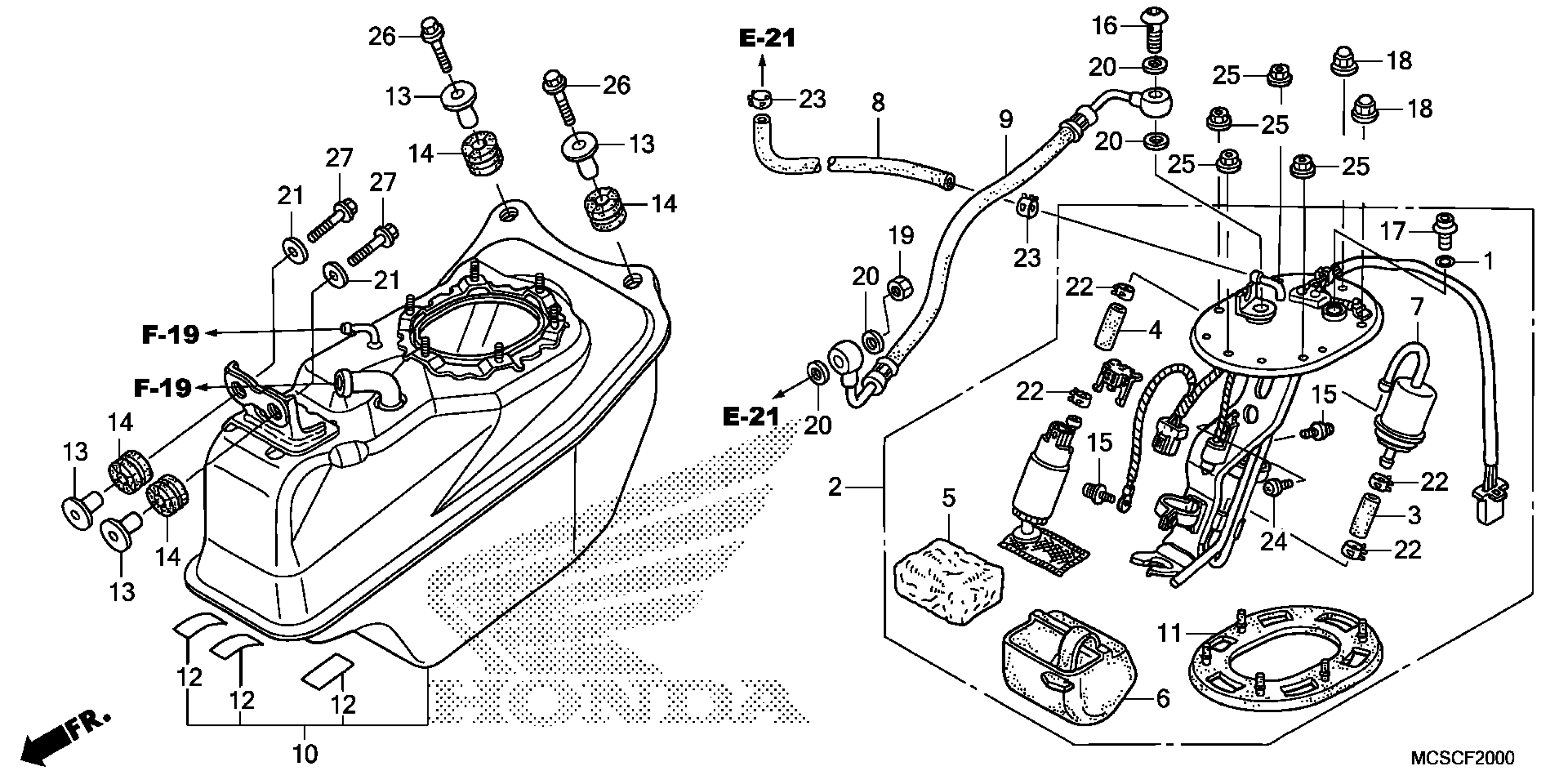

Honda ST1300AAC (13) MOTORCYCLE, JPN, VIN# JH2SC511-DK100001 FUEL PUMP Diagram

#

Description
Price

1

O-RING (1.9X9.3)

16075-GHB-820

$2.20

2

PUMP ASSY., FUEL (MSDS)

16700-MCS-G02

$642.91

3

HOSE A, PUMP

16711-MCS-G00

$3.22

4

HOSE B, PUMP

16712-MAT-D01

$3.48

5

FILTER, FUEL RETURN

16714-MBG-000

$8.20

6

RUBBER, FUEL PUMP UNIT

16716-MCS-G01

$12.60

7

FILTER, FUEL

16900-MBG-013

$62.49

8

HOSE, FUEL RETURN

17525-MCS-R11

$36.35

9

HOSE, FUEL FEED

17528-MCS-G01

$67.43

10

TANK, FUEL SUB

17550-MCS-D90

$512.30

11

GASKET, BASE

17574-MN5-000

$9.08

12

FILM, FRAME PIPE (UPPER)

50159-KR3-300

$3.80

13

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.22

13

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.22

14

RUBBER, RR. FENDER MOUNTING

80106-382-770

$3.97

15

SCREW-WASHER, LOCK (4X8)

90105-MBG-000

$1.38

16

BOLT, BANJO (12MM)

90108-MBG-000

$9.39

17

BOLT, RR. SPINDLE

90178-SR3-A00

$3.86

18

NUT, FLANGE CAP (6MM)

90201-MEJ-770

$1.64

19

NUT A, SEALING (12MM)

90201-PD1-000

$4.53

20

WASHER, SEALING (12MM)

90428-PD6-003

$4.84

21

WASHER (18MM) This part replaces 90482-567-000.

90581-831-650

$1.70

21

WASHER (18MM) This part replaces 90581-701-000.

90581-831-650

$1.70

21

WASHER (18MM)

90581-831-650

$1.70

22

CLAMP, TUBE (D12)

91405-PD1-004

$8.06

23

CLAMP, FUEL HOSE (D10.5)

91406-SL4-931

$4.54

24

SCREW-WASHER (5X12)

93893-05012-08

$1.22

25

NUT, FLANGE (6MM)

94050-06080

$0.59

26

BOLT, FLANGE (6X25)

96001-06025-07

Unavailable

27

BOLT, FLANGE (6X32)

96001-06032-07

$1.41
