Description

Price

1

DUST SEAL, BRAKE CAM (NOK)

45134-KB7-005

$2.97

2

COLLAR, PIVOT

45452-MZ2-000

$10.04

3

FORK ASSY., R. FR. This part replaces 51400-MCS-305.

51400-MCS-G03

$979.10

4

SPRING, FR. FORK

51401-MCS-G01

$109.95

5

COLLAR, SPRING

51402-MCS-G01

$13.39

6

PLATE, SPRING JOINT

51403-MBR-003

$3.69

7

PIPE, FR. FORK

51410-MCS-G02

$342.36

8

RING, BACK-UP

51412-KZ3-003

$9.43

9

BUSH, GUIDE

51414-MCH-003

$22.97

10

BUSH, SLIDER

51415-MCS-G01

$6.07

11

CASE, R. (LOWER)

51420-MCS-G01

$378.98

12

DAMPER, FR.

51430-MCS-G02

$251.13

13

PIECE, OIL LOCK

51432-MCS-G01

$18.10

14

RING, OIL SEAL STOPPER

51447-KZ3-003

$5.12

15

CAP, FORK PIPE (SHOWA)

51449-MN5-003

$9.05

16

NUT, HEX. (10MM)

51451-MAJ-G41

$2.90

17

BOLT, FR. FORK

51454-MCS-G01

$46.54

18

PROTECTOR, FORK PIPE

51460-MCS-G01

$11.09

19

SEAL SET, FR. FORK

51490-MCA-003

$37.19

20

FORK ASSY., L. FR. This part replaces 51500-MCS-305.

51500-MCS-G03

$979.05

21

CASE, L. (LOWER)

51520-MCS-G01

$378.98

22

BOLT, SOCKET (8X45)

90103-MT7-000

$14.21

23

BOLT, SOCKET (8MM)

90117-MCS-G01

$3.35

24

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.87

25

BEARING, NEEDLE (14X20X20)

91051-MCW-D01

$14.51

26

DUST SEAL

91254-MCA-003

$8.52

27

O-RING (37.2X2.4) (SHOWA)

91356-MW0-003

$2.92

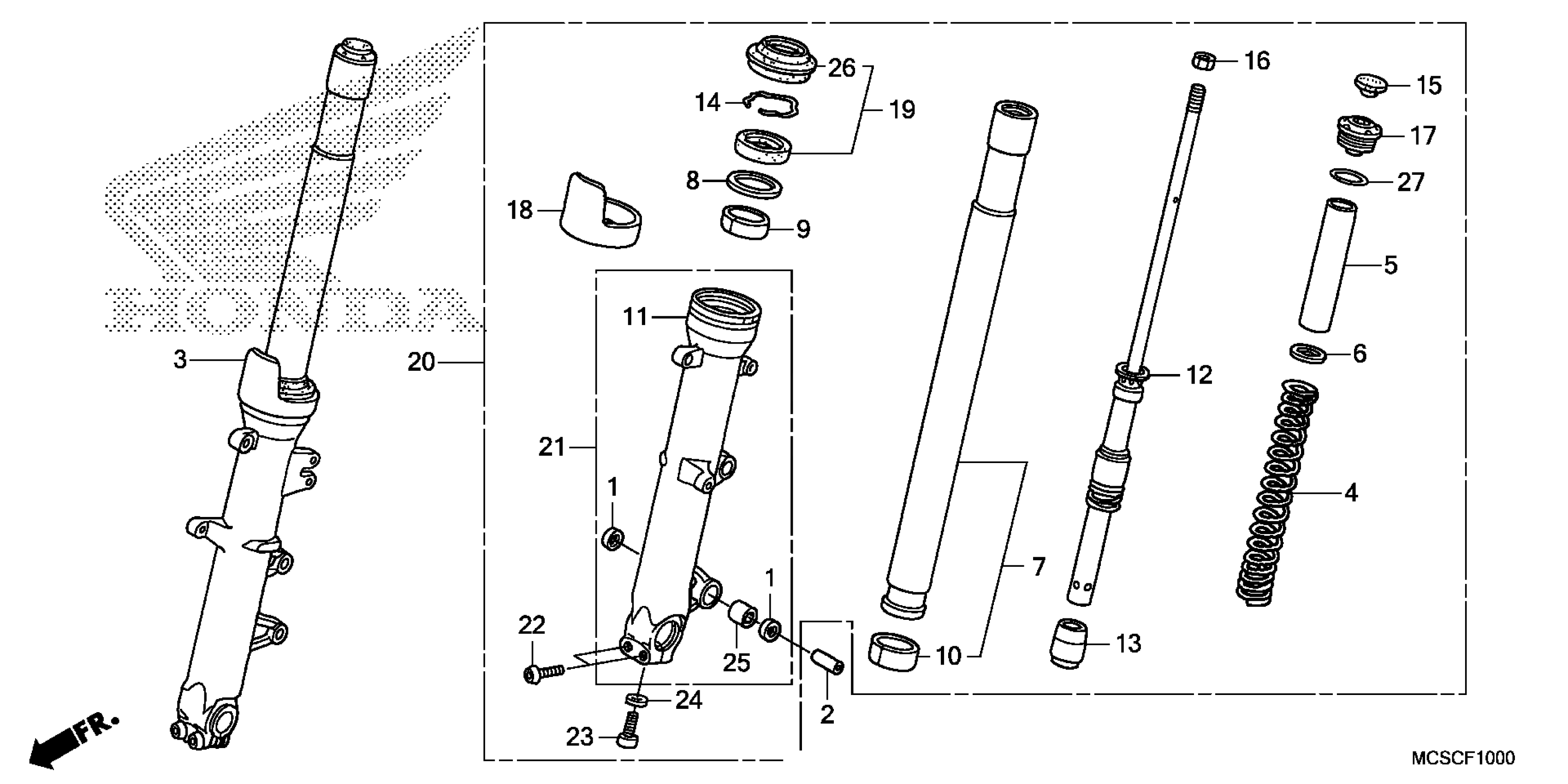

Honda ST1300AAC (13) MOTORCYCLE, JPN, VIN# JH2SC511-DK100001 FRONT FORK Diagram
