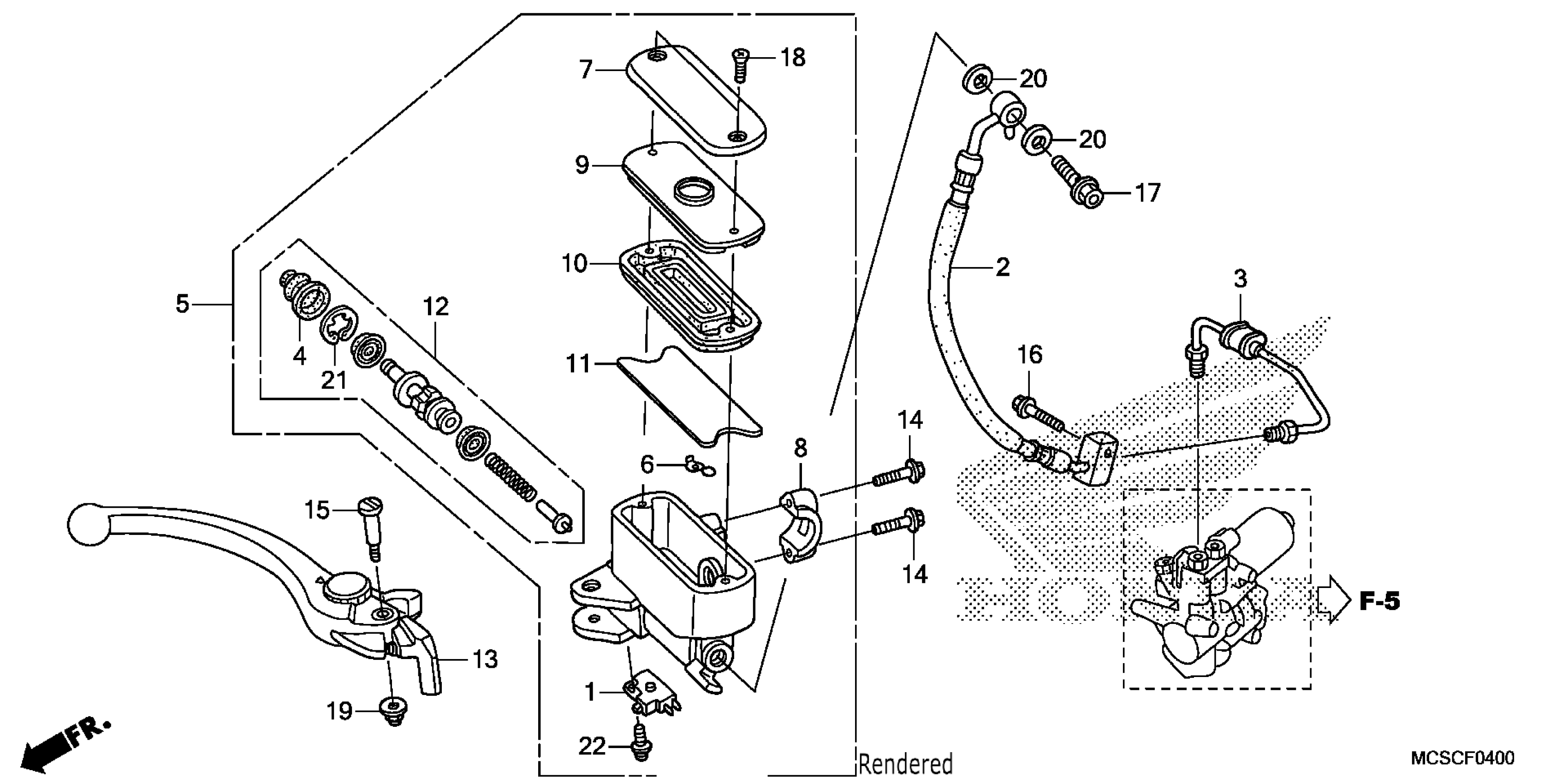

Honda ST1300AAC (13) MOTORCYCLE, JPN, VIN# JH2SC511-DK100001 FRONT BRAKE MASTER CYLINDER Diagram

SWITCH ASSY., FR. STOP

35340-MM5-600

$22.13

HOSE A, FR. BRAKE

45125-MCS-G02

$72.11

PIPE A, FR. BRAKE

45126-MCS-G02

$13.38

BOOT

45504-MCF-006

$11.87

MASTER CYLINDER SUB-ASSY., FR. (COO)

45510-MCS-305

$269.70

PROTECTOR

45512-MA6-006

$4.28

CAP, MASTER CYLINDER (NISSIN)

45513-MR1-016

$30.62

HOLDER, MASTER CYLINDER

45517-MCS-761

$11.41

PLATE, DIAPHRAGM

45518-MM5-006

$10.65

DIAPHRAGM

45520-MM5-006

$15.12

FLOAT, FR. MASTER CYLINDER (NISSIN)

45523-MN5-006

$4.49

MASTER CYLINDER SET

45530-MCS-R01

$50.61

LEVER ASSY., R. HANDLE This part replaces 53170-MCS-305.

53170-MCS-R01

$51.67

BOLT, FLANGE (6X22) This part replaces 90010-GHB-660.

96001-06022-00

$1.49

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

BOLT, HANDLE LEVER

90114-MCF-006

$5.81

BOLT, FLANGE (6X28)

90114-MCS-G00

$1.49

BOLT, OIL (10X22)

90145-MS9-612

$7.54

SCREW, FLAT

90158-MT7-000

$2.15

NUT, CAP (6MM)

90201-415-000

$2.05

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MCF-006

$2.26

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49
