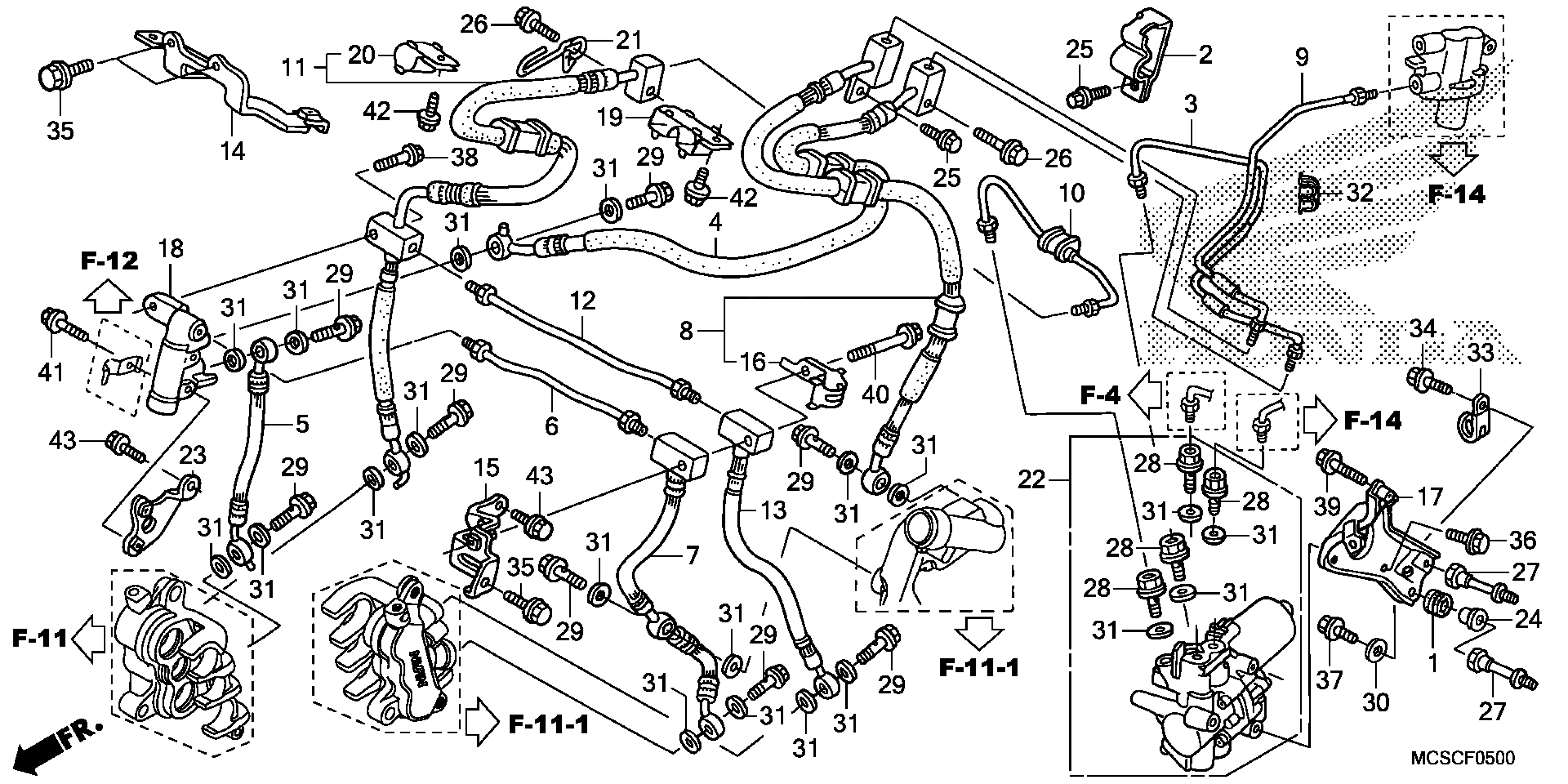

Honda ST1300AAC (13) MOTORCYCLE, JPN, VIN# JH2SC511-DK100001 FRONT BRAKE HOSE Diagram

#

Description
Price

1

RUBBER, CUSHION

17622-GB7-900

$4.47

2

CLAMP, RR. BRAKE PIPE

43155-MCS-G00

$4.94

3

PIPE B, SUB-BRAKE

43322-MCS-G02

$24.38

4

HOSE B, SUB-BRAKE

43323-MCS-G01

$44.61

5

HOSE C, SUB-BRAKE

43324-MCS-R11

$26.81

6

PIPE C, SUB-BRAKE

43325-MCS-G00

$7.80

7

HOSE D, SUB-BRAKE

43326-MCS-R11

$45.51

8

HOSE A, SECOND BRAKE MASTER CYLINDER

43330-MCS-G02

$67.29

9

PIPE A, SECOND BRAKE MASTER CYLINDER

43331-MCS-G02

$22.07

10

PIPE B, FR. BRAKE

45127-MCS-G02

$13.77

11

HOSE B, FR. BRAKE

45128-MCS-R11

$97.19

12

PIPE C, FR. BRAKE

45129-MCS-G00

$8.48

13

HOSE C, FR. BRAKE

45131-MCS-R11

$36.99

14

STAY A, FR. BRAKE HOSE

45156-MCS-760

$12.23

15

STAY B, FR. BRAKE HOSE

45157-MCS-G00

$8.81

16

CLAMP, FR. BRAKE HOSE

45158-MCS-G00

$5.48

17

BRACKET, FR. ABS MODULATOR

45165-MCS-G00

$34.38

18

VALVE ASSY., DELAY

46300-MCS-G02

$165.46

19

CLAMP, BRAKE HOSE

52115-MAT-000

$5.71

20

CLAMP, BRAKE HOSE

52115-ML8-670

$4.94

21

GUIDE, THROTTLE CABLE

53121-MCS-G00

$6.94

22

MODULATOR ASSY., ABS

57100-MCA-971

$1,320.38

23

STAY, FR. FENDER

61103-MCS-G00

$9.42

24

COLLAR, TAILLIGHT MOUNTING

84706-163-670

$3.80

25

BOLT, FLANGE (6X12)

90103-MCS-G00

$1.17

26

BOLT, FLANGE (6X28)

90114-MCS-G00

$1.28

27

BOLT, MIDDLE COWL

90135-MCS-G01

$10.71

28

BOLT, OIL (10X10.6)

90145-MCA-971

$5.86

29

BOLT, OIL (10X22)

90145-MS9-612

$6.82

30

WASHER, PLAIN (6MM)

90525-428-900

$1.84

31

WASHER, OIL BOLT

90545-300-000

$3.72

32

CLAMP, BRAKE PIPE

90661-MCA-003

$1.96

33

CLIP, CORD

91405-943-000

$3.08

34

BOLT, FLANGE (6X10)

95701-06010-07

$1.48

35

BOLT, FLANGE (6X14)

95701-06014-07

$1.32

36

BOLT, FLANGE (6X14)

95701-06014-08

$1.48

37

BOLT, FLANGE (6X16)

95701-06016-07

$1.48

38

BOLT, FLANGE (6X25)

95701-06025-07

$1.64

39

BOLT, FLANGE (6X40)

95701-06040-07

$1.71

40

BOLT, FLANGE (6X45)

95701-06045-07

$1.97

41

BOLT, FLANGE (6X38) (SOURCE: VINTAGE PARTS INC.)

95801-06038-07

Unavailable

42

BOLT, FLANGE (6X12)

96001-06012-07

Unavailable

43

BOLT, FLANGE (6X16)

96001-06016-07

$0.96
