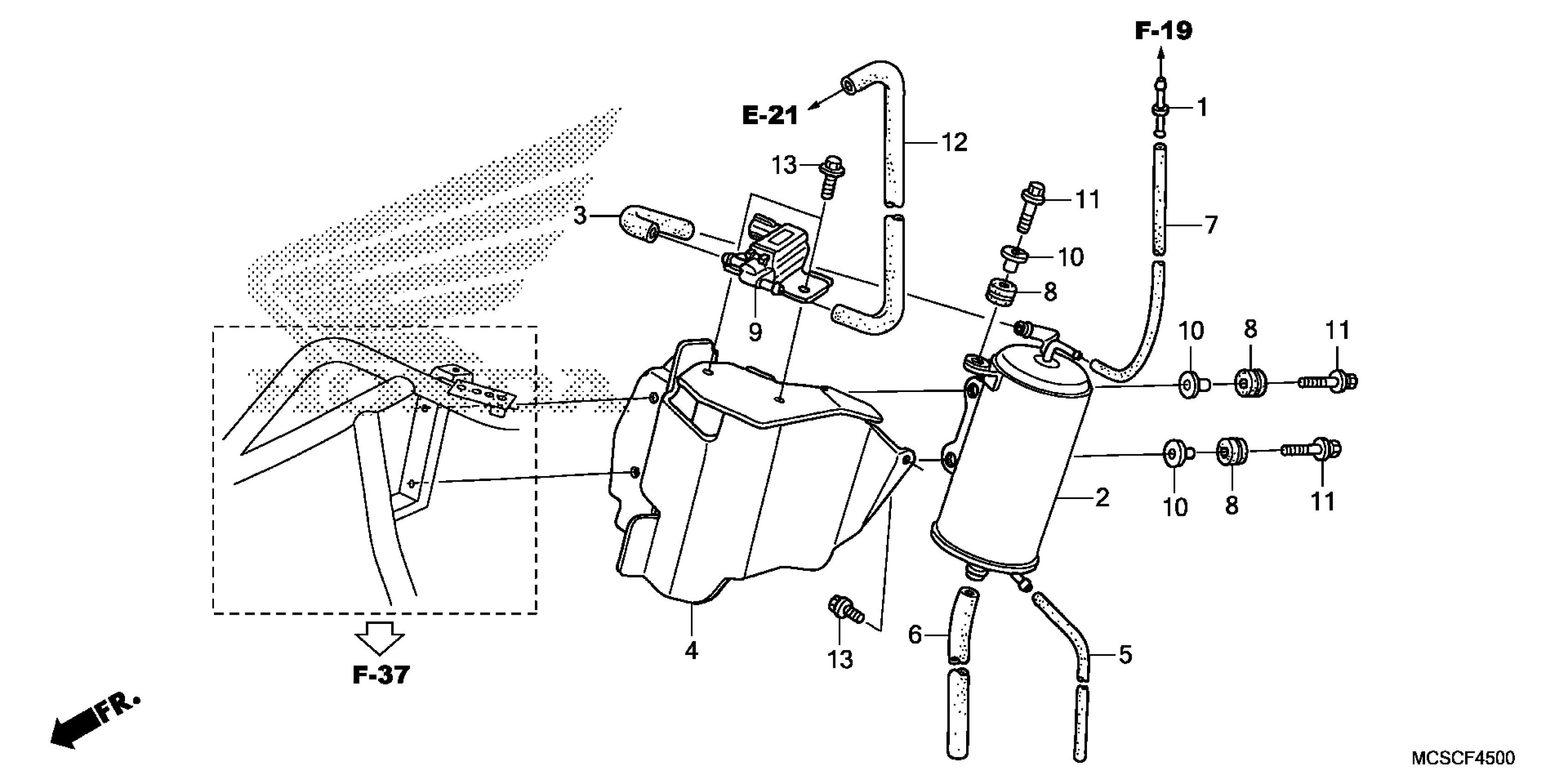

Honda ST1300AAC (13) MOTORCYCLE, JPN, VIN# JH2SC511-DK100001 EVAP CANISTER Diagram

#

Description

Price

1

JOINT, FUEL TUBE

16958-GJ6-000

$4.40

2

EVAPORATIVE EMISSION CANISTER

17410-MCS-L01

$251.99

3

TUBE, CANISTER

17412-MCS-L00

$4.16

4

GUARD, CANISTER HEAT

17413-MCS-L00

$109.68

5

TUBE, CANISTER DRAIN

17414-MCS-710

$41.90

6

TUBE, CANISTER OPEN AIR

17415-MCS-710

$41.90

7

TUBE A, CANISTER

17416-MCS-R10

$11.26

8

RUBBER B, TAILLIGHT MOUNTING

33706-KW7-900

$4.88

9

VALVE ASSY., PURGE CONTROL SOLENOID

36162-P2M-A01

$468.87

10

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

Unavailable

10

COLLAR, FR. FENDER (WHITE)

61104-428-010

Unavailable

10

COLLAR, FR. FENDER (BLACK)

61104-428-730

$4.01

11

BOLT-WASHER (6X25)

93404-06025-00

$1.01

12

BULK HOSE, VACUUM (8X1000) (8X400)

95005-80001-20M

$29.17

13

BOLT, FLANGE (6X12)

95701-06012-00

$2.03
