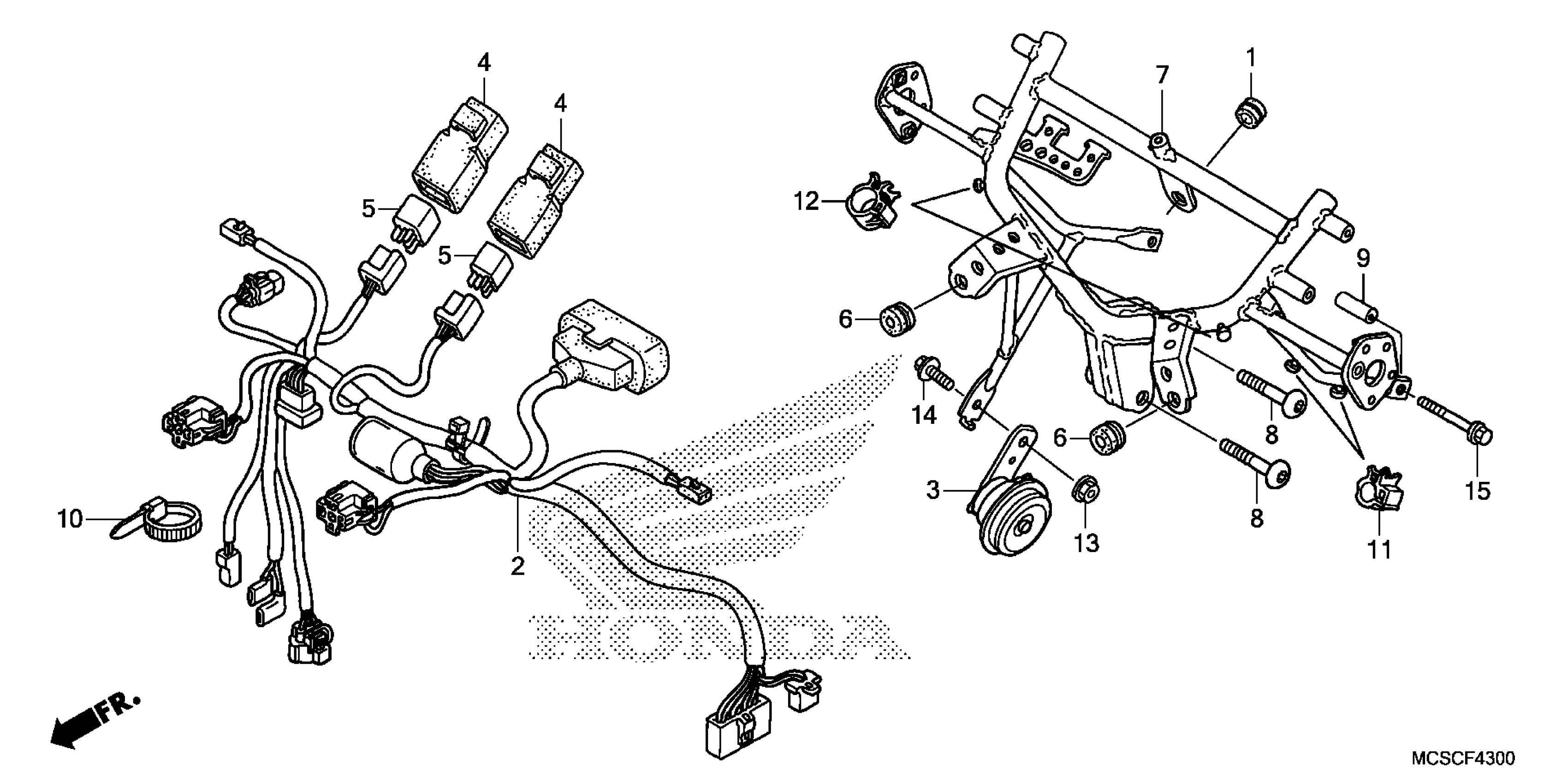

Honda ST1300AAC (13) MOTORCYCLE, JPN, VIN# JH2SC511-DK100001 COWL STAY Diagram

RUBBER, PROTECTOR GASKET

18293-GZ5-000

$2.80

SUB-HARNESS, FAIRING

32105-MCS-R10

$168.38

HORN (LOW)

38120-MY3-780

$67.53

SUSPENSION, POWER RELAY

38306-MCA-000

$12.18

RELAY, POWER (MICRO ISO 5P)

38502-MCS-G01

$9.52

RUBBER A, BATTERY HOLDER

50328-HA7-670

$3.99

STAY, COWL (UPPER)

64500-MCS-G00

$336.22

BOLT, SOCKET (10X42)

90125-MCS-G00

$2.32

COLLAR (6X30)

90501-MCS-G02

$1.85

BAND, WIRE (95MM)

90650-KV6-003

$2.97

CLIP, CABLE (15MM)

90690-GHB-651

$2.01

CLIP, CABLE (20MM)

90690-GHB-661

$2.01

NUT, FLANGE (6MM)

94050-06070

$1.44

BOLT, FLANGE (6X12)

95701-06012-07

Unavailable

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.75

BOLT, FLANGE (6X45)

95701-06045-07

$2.75
