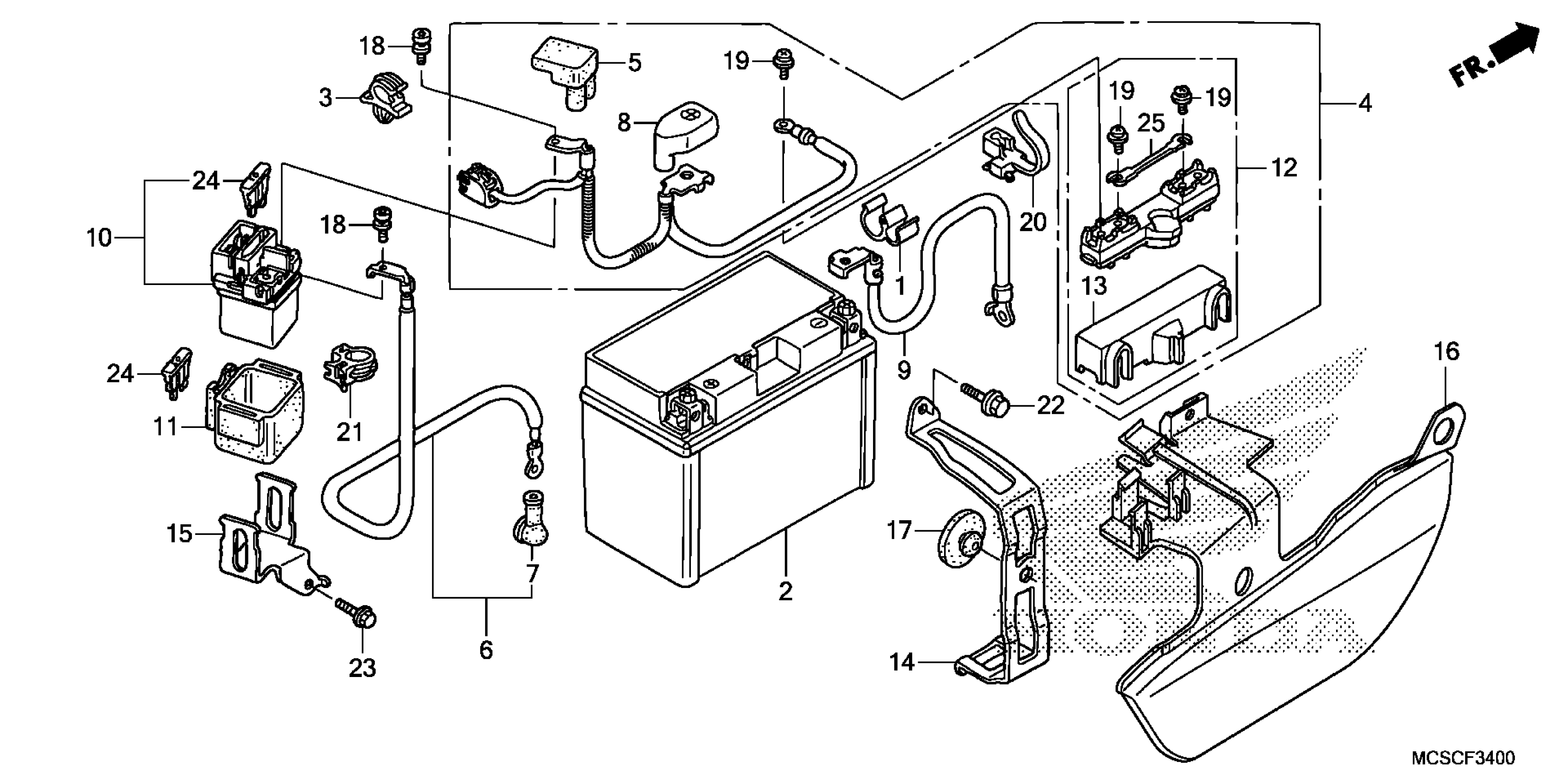

Honda ST1300AAC (13) MOTORCYCLE, JPN, VIN# JH2SC511-DK100001 BATTERY Diagram

#

Description
Price

1

CLAMP, PIPE

11152-KS4-003

$6.63

2

BATTERY (YTZ14S) (YUASA) (MSDS) This part replaces 31500-MCR-D02AH.

31500-MCR-D03

$184.48

3

CLIP B, HARNESS

32172-GJ1-003

$3.57

4

CABLE, STARTER BATTERY

32401-MCS-D91

$84.14

5

COVER, STARTER MAGNETIC TERMINAL

32406-MT4-010

$5.83

6

CABLE, STARTER MOTOR

32410-MCS-G00

$30.19

7

COVER, STARTER MOTOR TERMINAL

32411-230-000

$5.96

7

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$5.96

8

COVER, BATTERY TERMINAL

32414-MCF-000

$5.90

9

CABLE, BATTERY GROUND

32601-MCS-G00

$21.33

10

SWITCH ASSY., STARTER MAGNETIC This part replaces 35850-MT4-000.

35850-MT4-003

$70.03

10

SWITCH ASSY., STARTER MAGNETIC

35850-MT4-003

$70.03

11

RUBBER, SHOCK

35856-MBG-003

$8.30

12

BOX ASSY., REVERSE FUSE

38260-MN5-003

$24.25

13

COVER, FUSE BOX

38265-MN5-003

$5.78

14

BAND, BATTERY

50320-MCS-G00

Unavailable

15

BRACKET, STARTER MAGNETIC SWITCH

80114-MCS-G00

$4.88

16

COVER, R. SIDE (LOWER)

83410-MCS-D90

$11.57

17

RUBBER, BATTERY BOX

83618-323-000

$2.36

18

BOLT, SOCKET (5X9)

90111-MR5-000

$2.38

19

SCREW-WASHER (5X10)

90153-SB2-003

$4.96

20

CLIP, HARNESS BAND (15)

90690-GHB-601

$2.06

21

CLIP, CABLE (20MM)

90690-GHB-661

$1.99

22

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

23

BOLT, FLANGE (6X12)

96001-06012-00

$1.64

24

FUSE, BLADE (30A)

98200-33000

$1.19

25

FUSE (65A)

98200-66500

$2.09
