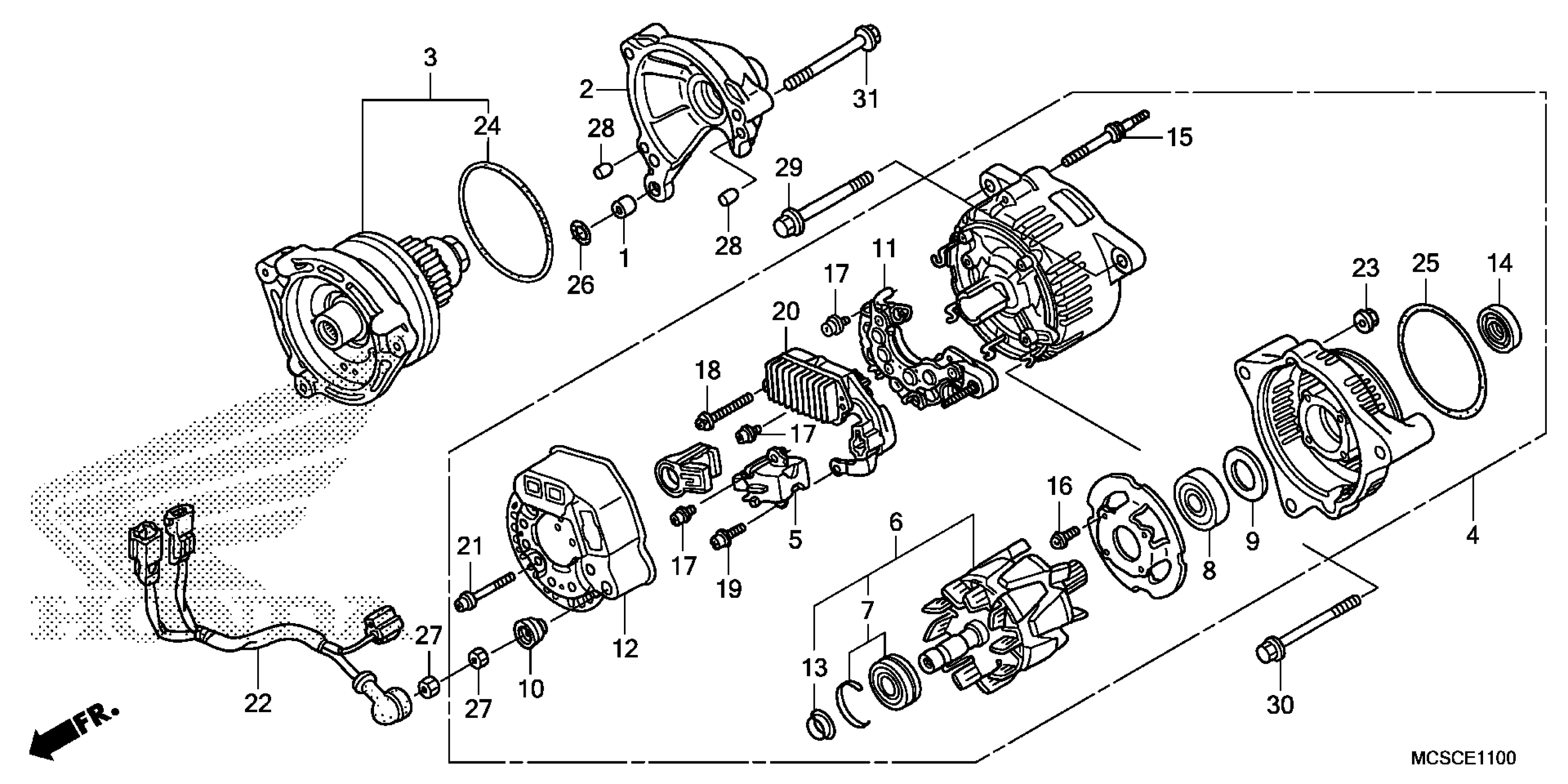

Honda ST1300AAC (13) MOTORCYCLE, JPN, VIN# JH2SC511-DK100001 ALTERNATOR Diagram

#

Description
Price

1

ORIFICE (1.2MM)

11104-MCS-000

$2.39

2

HOLDER, ALTERNATOR BEARING

11203-MCS-000

$82.23

3

GEAR ASSY., ALTERNATOR DRIVEN

13430-MCS-020

$441.00

4

ALTERNATOR ASSY. | Use up to Engine SN 2615961 This part replaces 31100-MCS-003.

31100-MCS-013

$948.93

4

ALTERNATOR ASSY.

31100-MCS-013

$948.93

5

HOLDER ASSY., BRUSH

31105-MAJ-G41

$42.05

6

ROTOR ASSY.

31110-MCS-003

$407.03

7

BEARING, RR.

31111-MAJ-G41

$28.98

8

BEARING, FR. | Use up to Engine SN 2615961 This part replaces 31114-MCS-003.

31114-MCS-013

$11.67

8

BEARING, FR.

31114-MCS-013

$11.67

9

COVER, BEARING

31116-MCS-003

$10.70

10

BUSH, INSULATION

31119-MAJ-G41

$7.28

11

RECTIFIER ASSY.

31127-MCS-003

$222.39

12

COVER, RR. END

31135-MAJ-G41

$24.34

13

COVER, BEARING

31138-PD1-004

$10.48

14

OIL SEAL

31141-MCS-003

$6.48

15

BOLT, STUD

31145-PE9-941

$6.26

16

SCREW

31146-MAJ-G41

$3.20

17

SCREW-WASHER

31147-PT0-003

$3.21

18

SCREW-WASHER (4X25)

31148-PD1-004

$3.27

19

SCREW

31149-PZ1-003

$1.93

20

REGULATOR ASSY.

31150-PZ3-003

$328.10

21

BOLT

31153-PZ1-003

$2.00

22

SUB-HARNESS, ALTERNATOR

32130-MCS-000

$24.23

23

NUT-WASHER (5MM)

90231-PD1-014

$3.71

24

O-RING (95.5X2.4)

91303-MCS-003

$6.16

25

O-RING

91304-MAJ-G41

$6.22

26

O-RING (9.8X2.4)

91305-422-000

$2.47

27

NUT, HEX. (6MM)

94001-06080-0S

$1.49

28

PIN B, DOWEL (8X10)

94302-08100

$2.14

29

BOLT, FLANGE (8X65)

95701-08065-00

$1.72

30

BOLT, FLANGE (8X85)

95701-08085-00

$2.48

31

BOLT, FLANGE (8X90)

95701-08090-00

$2.95
