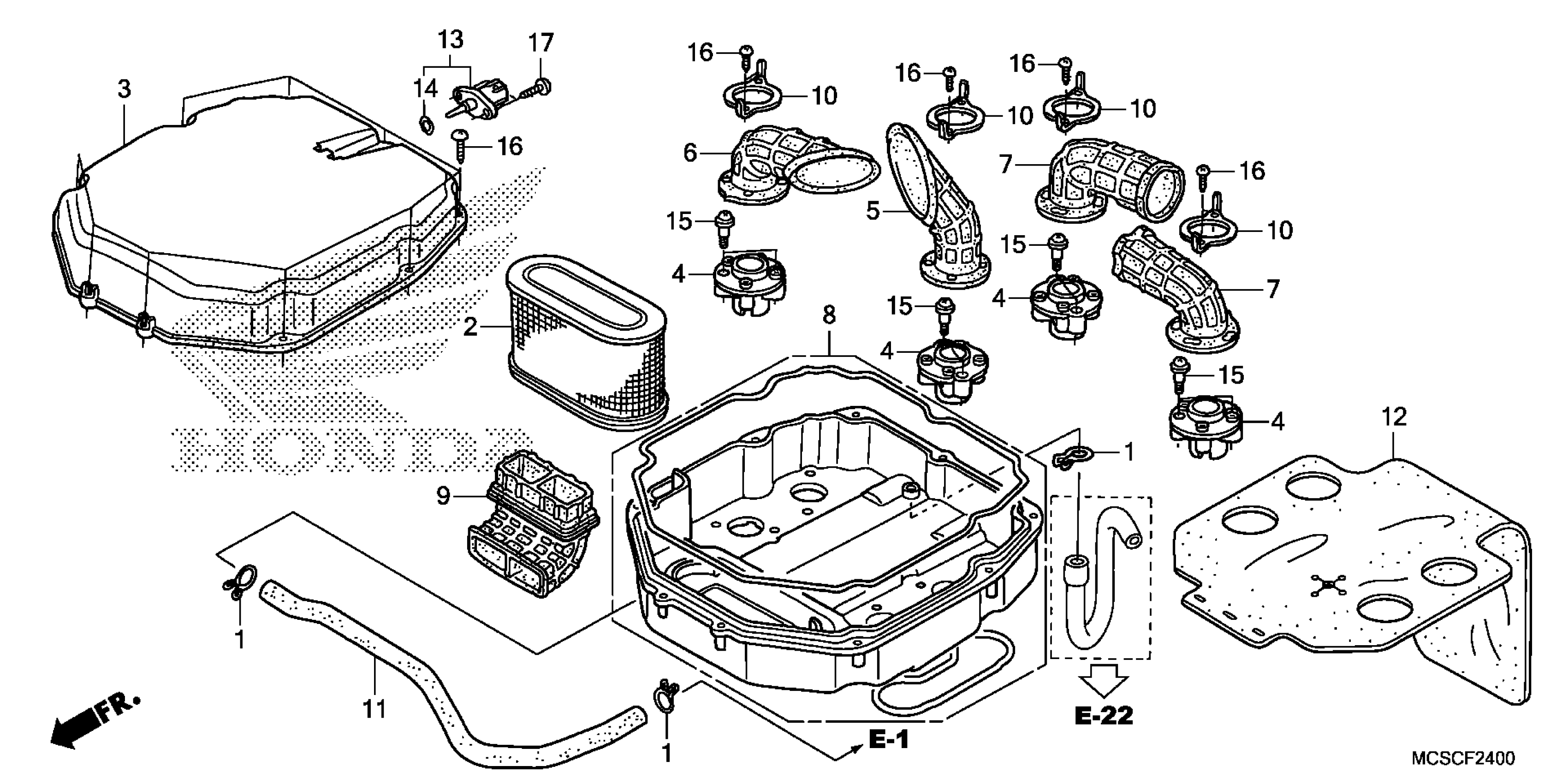

Honda ST1300AAC (12) MOTORCYCLE, JPN, VIN# JH2SC511-CK000001 TO JH2SC511-CK099999 AIR CLEANER Diagram

CLIP, DRAIN TUBE (B20)

15772-GB5-670

$3.39

ELEMENT, AIR CLEANER

17210-MCS-G00

$45.75

COVER, AIR CLEANER This part replaces 17221-MCS-G01.

17221-MCS-G02

$128.67

BASE, FUNNEL

17225-MCS-G01

$12.10

FUNNEL, AIR (#1)

17226-MCS-G00

$26.15

FUNNEL, AIR (#2)

17227-MCS-G00

$26.13

FUNNEL, AIR & (#3) (#4)

17228-MCS-G00

$26.13

HOUSING, AIR CLEANER

17231-MCS-G00

$131.02

DUCT, AIR CLEANER IN. This part replaces 17253-MCS-G00.

17253-MCS-G01

$30.90

PLATE SET, AIR FUNNEL This part replaces 17254-MCS-G00.

17254-MCS-305

$4.89

TUBE, BREATHER

17365-MCS-G00

$16.77

RUBBER, HEAT GUARD

19126-MCS-G00

$58.18

SENSOR ASSY., AIR TEMPERATURE

37880-P05-A00

$33.51

O-RING (7.5X1.5)

91303-PK2-005

$2.81

SCREW, PAN (5MM)

91508-MM5-000

$4.08

SCREW, TAPPING (5X20)

93903-25480

$1.49

SCREW, TAPPING (5X16)

93911-25420

$1.49
