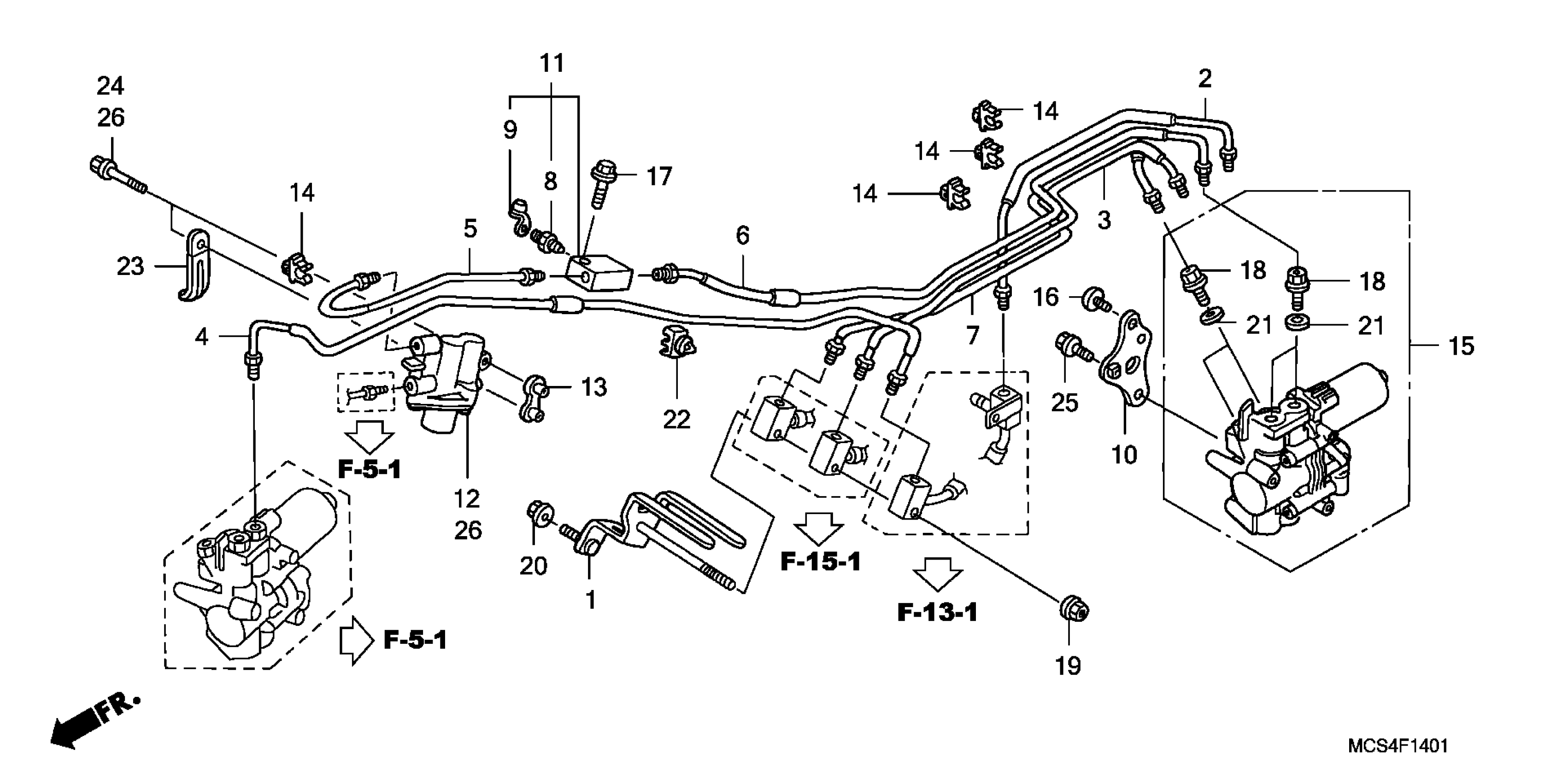

Honda ST1300AAC (03) ST1300A, JPN, VIN# JH2SC514-3M100001 TO JH2SC514-3M199999 PROPORTIONING CONTROL VALVE (ST1300A) Diagram

STAY, RR. BRAKE HOSE

43157-MCS-G01

$11.61

PIPE A, RR. BRAKE

43311-MCS-G00

$16.87

PIPE B, RR. BRAKE

43312-MCS-G00

$29.97

PIPE A, SUB-BRAKE

43321-MCS-G01

$38.97

PIPE B, SECOND BRAKE MASTER CYLINDER

43332-MCS-G00

$23.21

PIPE C, SECOND BRAKE MASTER CYLINDER

43333-MCS-G00

$46.98

PIPE D, SECOND BRAKE MASTER CYLINDER

43334-MCS-G00

$21.38

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

BRACKET, RR. ABS MODULATOR

43615-MCS-G00

$4.11

JOINT ASSY., BLEEDER (TWO-WAY)

45160-MCS-G00

$23.95

VALVE ASSY., PROPORTIONING CONTROL This part replaces 46200-MCS-G01.

46200-MCS-G02

Unavailable

VALVE ASSY., PROPORTIONING CONTROL

46200-MCS-G02

Unavailable

STAY, PCV

46210-MCS-G00

$4.69

CLIP C, BRAKE PIPE

50304-HE0-003

$3.39

MODULATOR ASSY., ABS

57100-MCA-971

$1,450.21

SCREW, PAN (6X12)

90106-MAV-000

$2.18

BOLT, FLANGE (6X28)

90114-MCS-G00

$1.49

BOLT, OIL (10X10.6)

90145-MCA-971

$6.43

NUT, U (6MM) (FUSE RASHI)

90301-473-003

$4.07

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

WASHER, OIL BOLT

90545-300-000

$3.99

CLAMP, BRAKE PIPE

90651-MAT-000

$3.48

CLIP, WIRE

91406-166-000

$3.83

BOLT, FLANGE (6X50)

95801-06050-08

$1.49

BOLT, FLANGE (6X12)

96001-06012-00

$1.80
