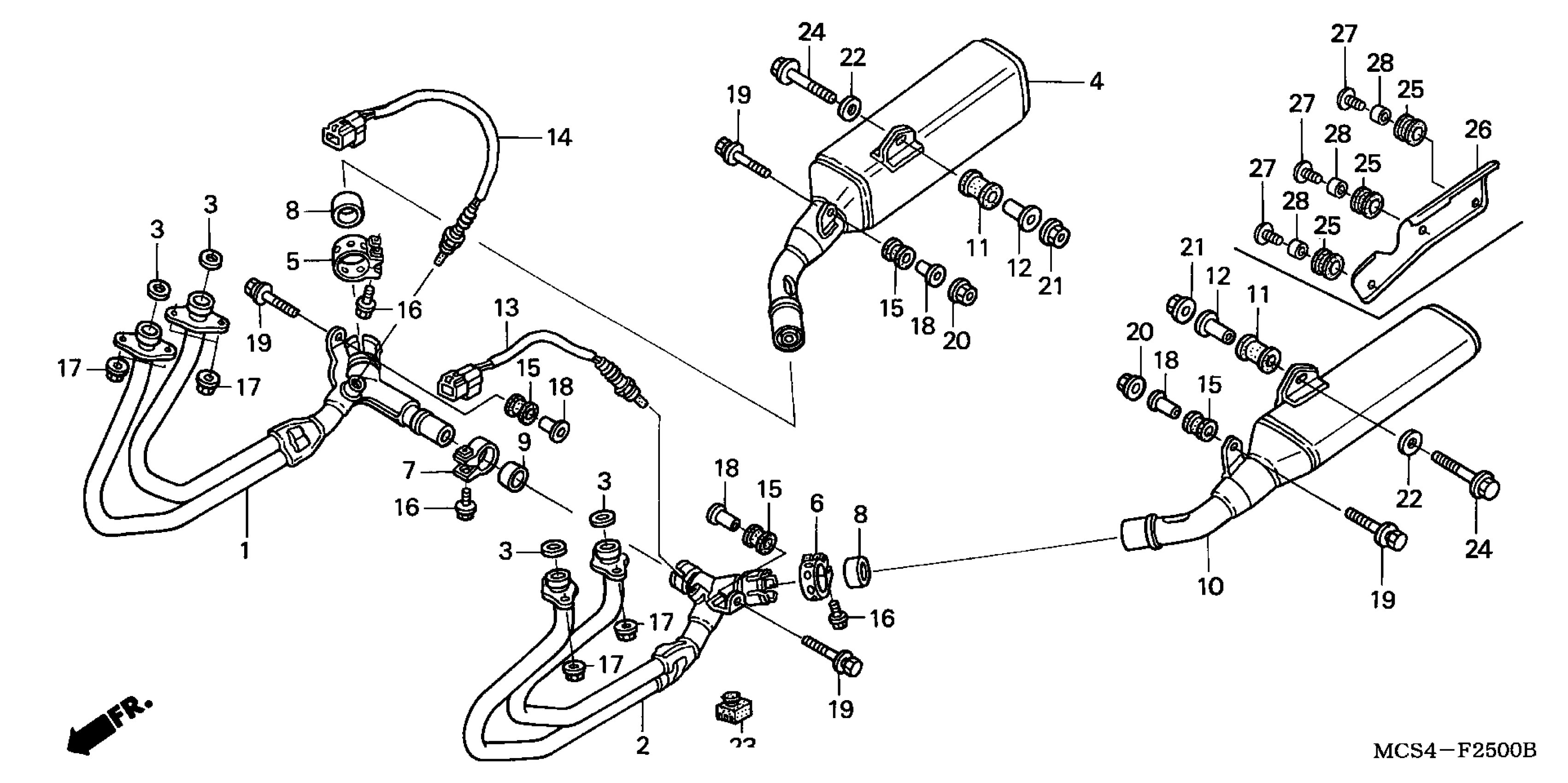

Honda ST1300AAC (03) ST1300A, JPN, VIN# JH2SC514-3M100001 TO JH2SC514-3M199999 MUFFLER Diagram

PIPE, R. EX.

18150-MCS-G01

$365.06

PIPE, L. EX.

18170-MCS-G01

$365.06

GASKET, EX. PIPE

18291-MN4-920

$5.07

MUFFLER, R.

18310-MCS-L01

$730.63

BAND, MUFFLER

18371-MAT-000

$28.69

BAND, MUFFLER

18372-MAT-000

$30.49

BAND, R. FR. MUFFLER

18373-413-000

$35.97

GASKET, MUFFLER

18391-ML0-003

$26.89

GASKET, MUFFLER

18392-MK4-000

$12.54

MUFFLER, L. This part replaces 18410-MCS-L01.

18410-MCS-710

$730.63

MUFFLER, L.

18410-MCS-710

$730.63

RUBBER, MUFFLER MOUNTING

18421-MB0-000

$6.05

COLLAR, CHAMBER MOUNTING

18424-MN5-000

$7.87

SENSOR, OXYGEN

36531-MCS-G01

Unavailable

SENSOR, OXYGEN

36532-MCS-G01

Unavailable

RUBBER, SEAT SETTING

77206-MJ0-000

$3.74

BOLT, FLANGE (8X35)

90103-KCM-620

$1.46

NUT, FLANGE (7MM)

90304-MM5-000

Unavailable

COLLAR (6X14.8)

90501-438-000

$4.83

BOLT-WASHER (6X28)

93404-06028-00

$0.94

NUT, FLANGE (6MM)

94050-06000

$0.60

NUT, FLANGE (8MM)

94050-08000

$0.87

WASHER, PLAIN (8MM)

94103-08000

$0.60

RUBBER, STAND STOPPER

50505-GR1-000

$4.58

BOLT, FLANGE (8X45)

96300-08045-00

$1.93
