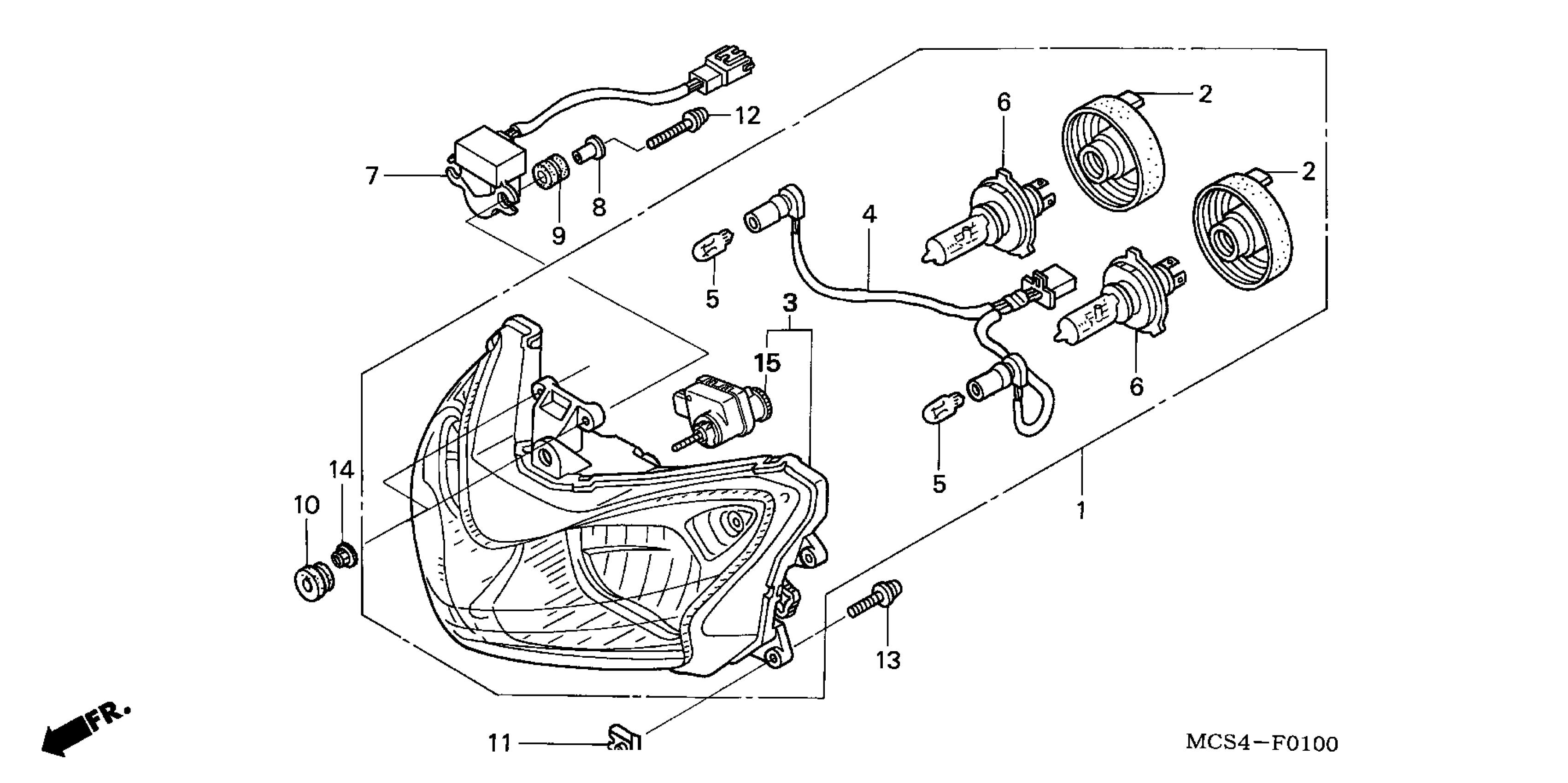

Honda ST1300AAC (03) ST1300A, JPN, VIN# JH2SC514-3M100001 TO JH2SC514-3M199999 HEADLIGHT Diagram

HEADLIGHT ASSY. (COO) This part replaces 33100-MCS-L01.

33100-MCS-305

$731.00

HEADLIGHT ASSY. (COO)

33100-MCS-305

$731.00

COVER, RUBBER

33112-MBW-D21

$12.48

HEADLIGHT UNIT (COO) This part replaces 33120-MCS-L01.

33120-MCS-305

$646.19

HEADLIGHT UNIT (COO)

33120-MCS-305

$646.19

SOCKET, POSITION LIGHT

33140-MCJ-D00

$19.29

BULB (12V 5W) (STANLEY)

33301-SA0-741

$3.66

BULB, HEADLIGHT (12V45/45W) (STANLEY) This part replaces 34901-MS2-671.

34901-MS2-672

$33.64

BULB, HEADLIGHT (12V 45/45W) (STANLEY)

34901-MS2-672

$33.64

SENSOR, BANK ANGLE This part replaces 35161-MCS-G01.

35161-MCS-G02

$95.28

SENSOR, BANK ANGLE

35161-MCS-G02

$95.28

COLLAR

35162-MN5-003

$6.75

GROMMET

35163-MN5-003

$2.93

GROMMET, SIDE COVER

83601-MN5-000

$2.80

NUT, FLOATING (5MM)

90306-SA0-000

$8.70

SCREW-WASHER (4X30)

93893-04030-07

$0.77

SCREW-WASHER (5X22)

93894-05022-07

$0.99

NUT, FLANGE (4MM)

94050-04000

$1.12

ADJUSTER UNIT, R. HEADLIGHT

33130-MCA-003

$88.07
