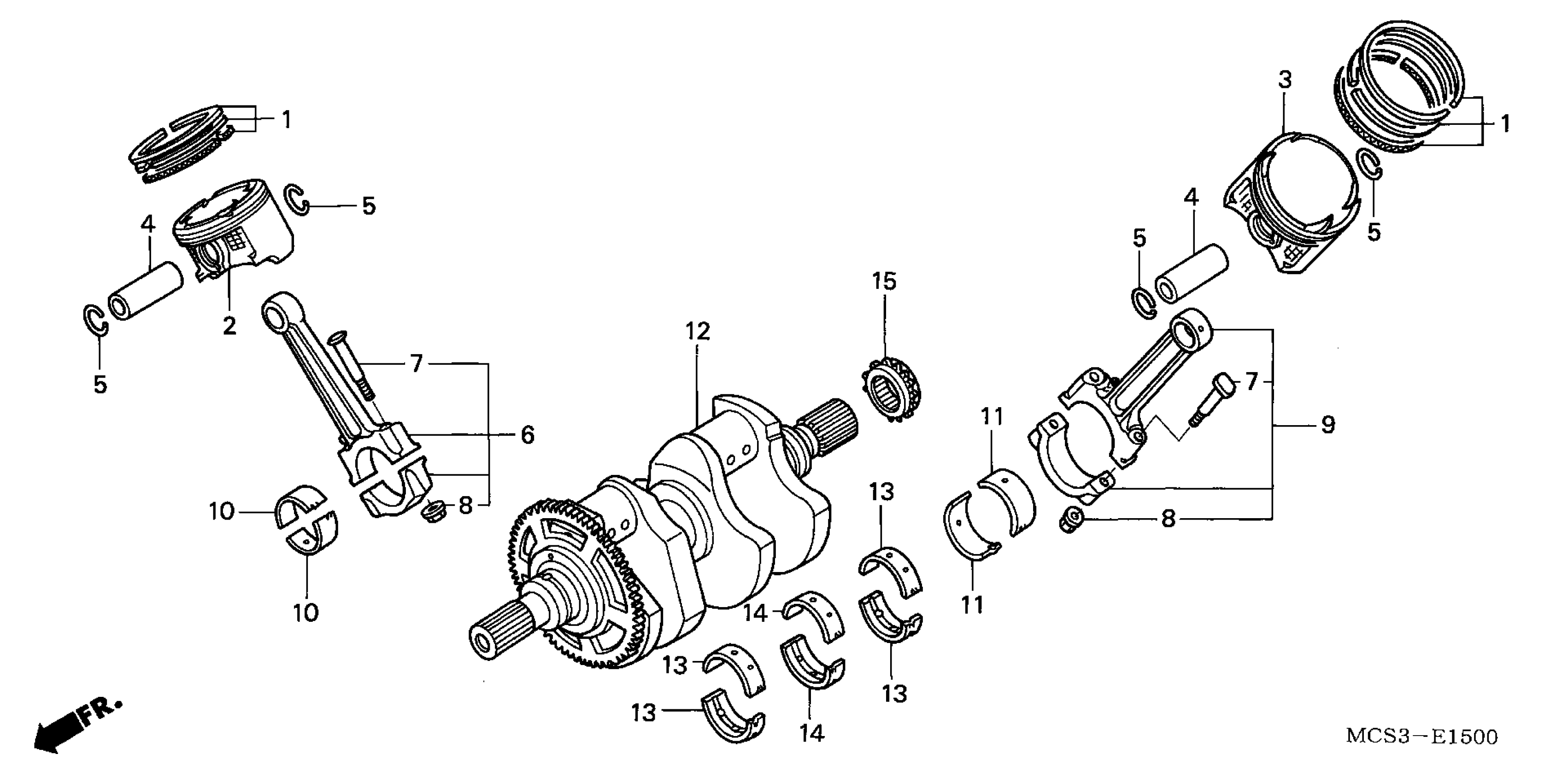

Honda ST1300AAC (03) ST1300A, JPN, VIN# JH2SC514-3M100001 TO JH2SC514-3M199999 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

RING SET, PISTON (STD)

13011-MCS-305

$51.43

1

RING SET, PISTON (O.S. 0.25) | (Optional).

13021-MCS-305

$51.43

1

RING SET, PISTON (O.S. 0.50) | (Optional).

13031-MCS-305

$51.43

2

PISTON, R. (STD)

13101-MCS-000

$90.03

2

PISTON, R. (O.S. 0.25) | (Optional).

13103-MCS-305

$90.03

2

PISTON, R. (O.S. 0.50) | (Optional).

13104-MCS-305

$90.03

3

PISTON, L. (STD)

13102-MCS-000

$90.03

3

PISTON, L. (O.S. 0.25) | (Optional).

13105-MCS-305

$90.03

3

PISTON, L. (O.S. 0.50) | (Optional).

13106-MCS-305

$90.03

4

PIN, PISTON

13111-MCS-000

$11.56

5

CLIP, PISTON PIN (19MM)

13112-MAT-000

$2.11

6

ROD ASSY., R. CONNECTING

13210-MCS-000

$173.39

7

BOLT, CONNECTING ROD

13213-MCS-003

$4.67

8

NUT, CONNECTING ROD

13215-ML7-000

$3.89

9

ROD ASSY., L. CONNECTING

13220-MCS-000

$173.39

10

BEARING A, R. CONNECTING ROD (BLUE)

13224-MCS-003

$9.79

10

BEARING B, R. CONNECTING ROD (BLACK)

13225-MCS-003

$10.72

10

BEARING C, R. CONNECTING ROD (BROWN)

13226-MCS-003

$10.72

10

BEARING D, R. CONNECTING ROD (GREEN)

13227-MCS-003

$10.72

10

BEARING E, R. CONNECTING ROD (YELLOW)

13228-MCS-003

$10.72

11

BEARING A, L. CONNECTING ROD (BLUE)

13234-MCS-003

$10.72

11

BEARING B, L. CONNECTING ROD (BLACK)

13235-MCS-003

$10.72

11

BEARING C, L. CONNECTING ROD (BROWN)

13236-MCS-003

$10.72

11

BEARING D, L. CONNECTING ROD (GREEN)

13237-MCS-003

$10.72

11

BEARING E, L. CONNECTING ROD (YELLOW)

13238-MCS-003

$10.72

12

CRANKSHAFT

13300-MCS-000

$1,065.03

13

BEARING A, CRANKSHAFT (BLUE)

13313-MCS-003

$11.20

13

BEARING B, CRANKSHAFT (BLACK)

13314-MCS-003

$11.20

13

BEARING C, CRANKSHAFT (BROWN)

13315-MCS-003

$11.20

13

BEARING D, CRANKSHAFT (GREEN)

13316-MCS-003

$11.20

13

BEARING E, CRANKSHAFT (YELLOW)

13317-MCS-003

$11.20

14

BEARING A, CRANKSHAFT CENTER (BLUE)

13363-MCS-003

$10.72

14

BEARING B, CRANKSHAFT CENTER (BLACK)

13364-MCS-003

$10.72

14

BEARING C, CRANKSHAFT CENTER (BROWN)

13365-MCS-003

$10.72

14

BEARING D, CRANKSHAFT CENTER (GREEN)

13366-MCS-003

$10.72

14

BEARING E, CRANKSHAFT CENTER (YELLOW)

13367-MCS-003

$10.72

15

SPROCKET, OIL PUMP DRIVE (22T)

13371-MCS-000

$43.90
