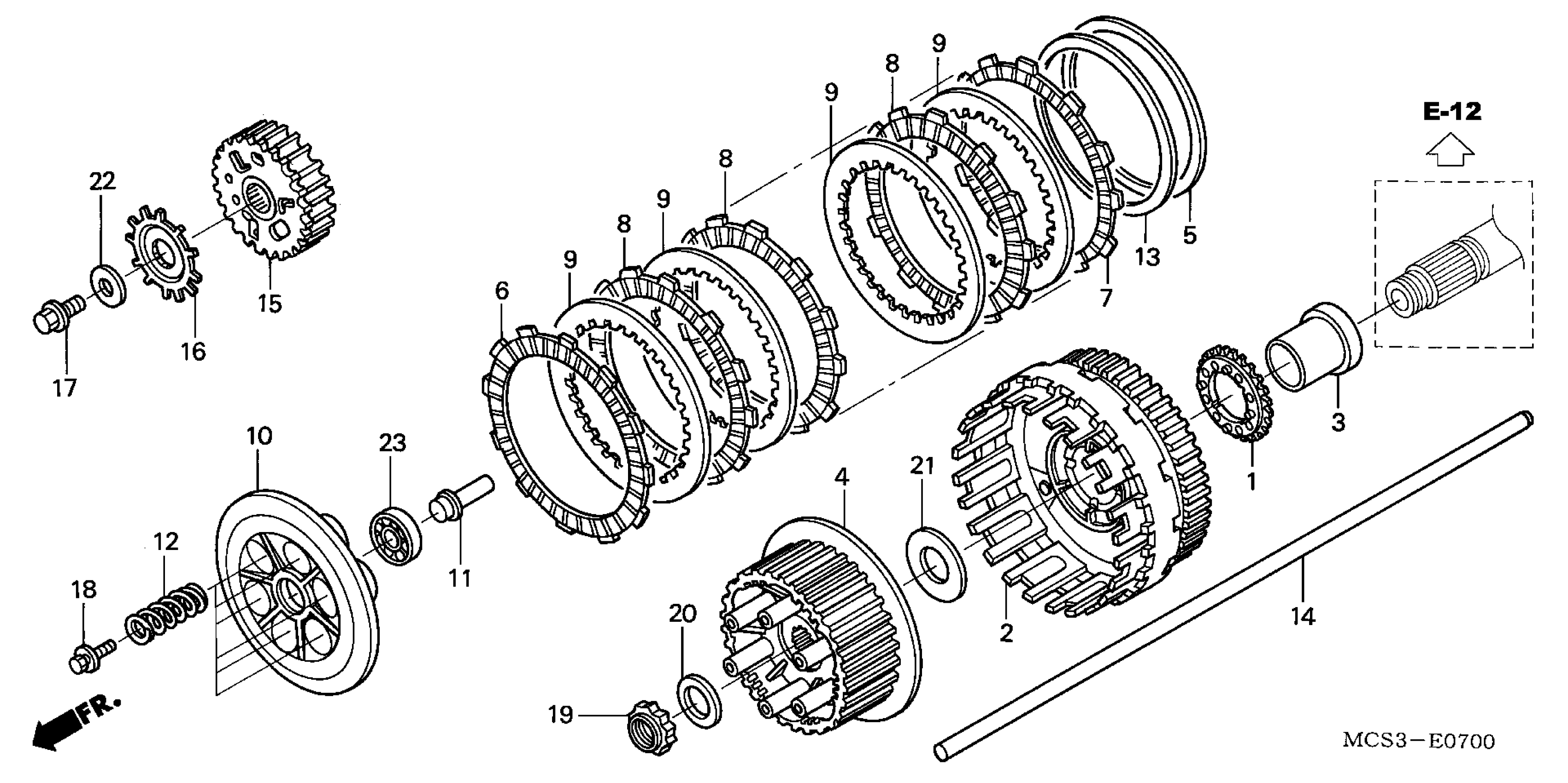

Honda ST1300AAC (03) ST1300A, JPN, VIN# JH2SC514-3M100001 TO JH2SC514-3M199999 CLUTCH Diagram

SPROCKET, WATER PUMP DRIVE (33T)

19230-MCS-000

$49.95

CLUTCH OUTER

22100-MCS-000

$369.97

COLLAR, CLUTCH (OUTER)

22116-MCS-000

Unavailable

CENTER, CLUTCH

22120-MCS-000

$119.82

SEAT, JUDDER SPRING

22125-MAT-000

$12.10

DISK, CLUTCH FRICTION

22201-MCA-000

$18.04

DISK B, CLUTCH FRICTION

22202-MCS-000

$15.70

DISK A, CLUTCH FRICTION

22203-MCA-000

$18.93

PLATE A, CLUTCH

22321-MN5-000

$13.97

PLATE, CLUTCH PRESSURE

22350-MCH-000

$76.67

PIECE, CLUTCH JOINT

22366-MS2-611

$17.03

SPRING, CLUTCH

22401-MCS-000

$4.45

SPRING, JUDDER

22402-MAT-000

$24.22

ROD, CLUTCH LIFTER

22851-MCS-000

$27.98

GEAR ASSY., PRIMARY DRIVE (42T)

23100-MCS-000

$215.87

ROTOR, PULSER

30291-MCS-000

$15.11

BOLT, FLANGE (12X30)

90005-MN5-000

$8.41

BOLT-WASHER (6X35)

90022-MAT-E00

$4.87

NUT, LOCK (25MM)

90231-MS2-610

$18.78

WASHER (25.1X37X5)

90401-MBB-000

$3.97

WASHER, THRUST (28.2X56X2)

90401-MS2-610

$15.87

WASHER (12.5X36X6)

90402-MBB-000

$4.03

BEARING, RADIAL BALL (16003) This part replaces 91008-362-000.

91011-KK6-013

$15.40
