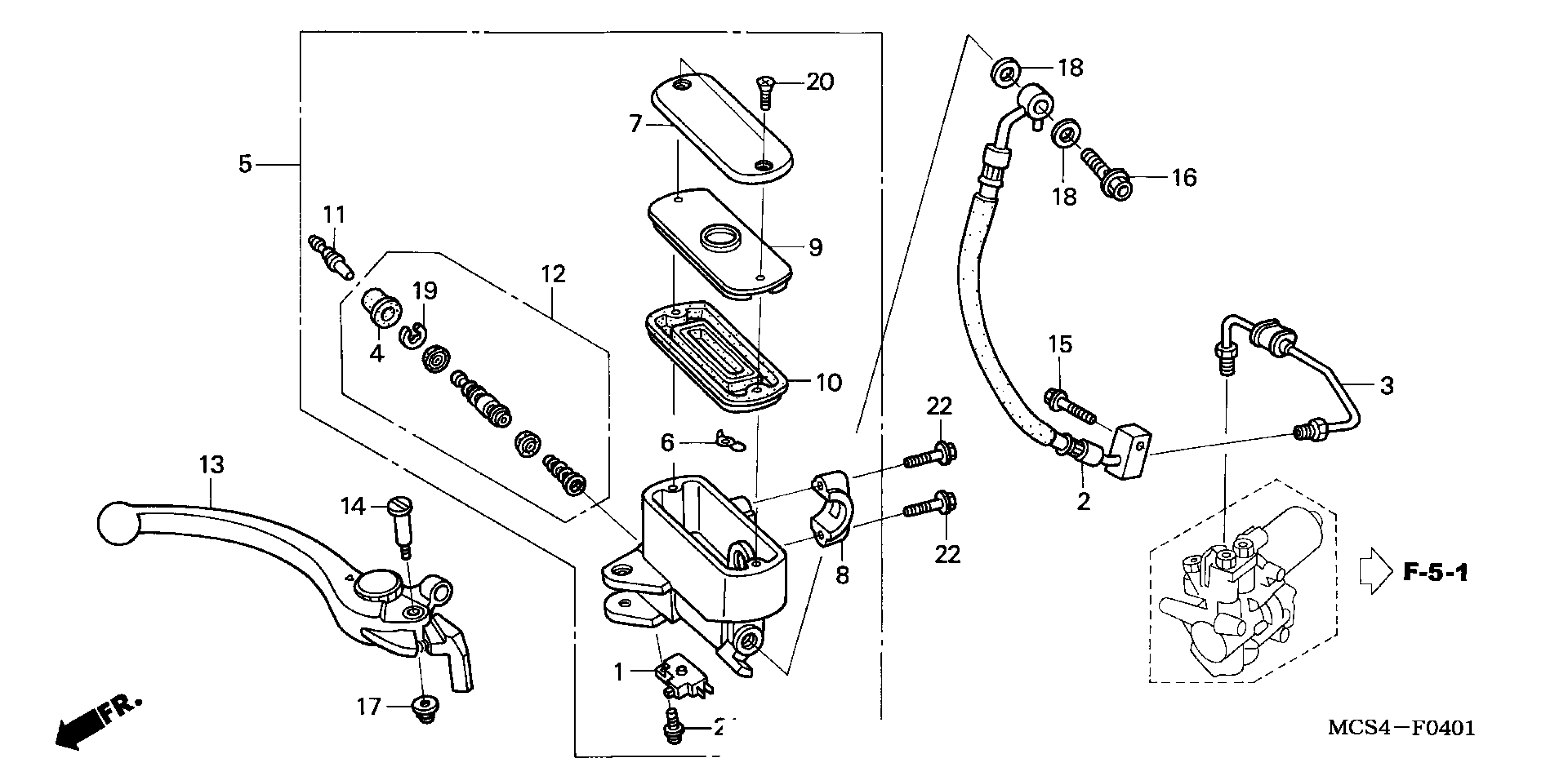

Honda ST1300AA (06) ST1300A, JPN, VIN# JH2SC514-6M400001 FRONT BRAKE MASTER CYLINDER (ST1300A) Diagram

SWITCH ASSY., FR. STOP

35340-MM5-600

$19.72

HOSE A, FR. BRAKE

45125-MCS-G02

$66.63

PIPE A, FR. BRAKE

45126-MCS-G02

$12.35

BOOT

45504-410-003

$11.17

MASTER CYLINDER SUB-ASSY., FR. (NISSIN)

45510-MCS-761

$244.06

PROTECTOR

45512-MA6-006

$4.09

CAP, MASTER CYLINDER (NISSIN)

45513-MR1-016

$28.10

HOLDER, MASTER CYLINDER

45517-MCS-761

$10.54

PLATE, DIAPHRAGM

45518-MM5-006

$9.79

DIAPHRAGM

45520-MM5-006

$13.87

ROD, PUSH

45525-MAJ-G41

$20.65

PISTON SET, FR. MASTER CYLINDER

45530-MAJ-G41

$53.60

LEVER ASSY., R. HANDLE

53170-MCS-G01

$49.84

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

Unavailable

BOLT, FLANGE (6X28)

90114-MCS-G00

$1.29

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.99

NUT, CAP (6MM)

90201-415-000

$1.99

WASHER, OIL BOLT

90545-300-000

$6.56

CIRCLIP

90651-MA5-671

$2.38

SCREW, FLAT

90158-MT7-000

$1.99

SCREW-WASHER (4X12)

93893-04012-07

$1.24

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.24

BOLT, FLANGE (6X22) This part replaces 90010-GHB-660.

96001-06022-00

$1.15

BOLT, FLANGE (6X22)

96001-06022-00

$1.15
