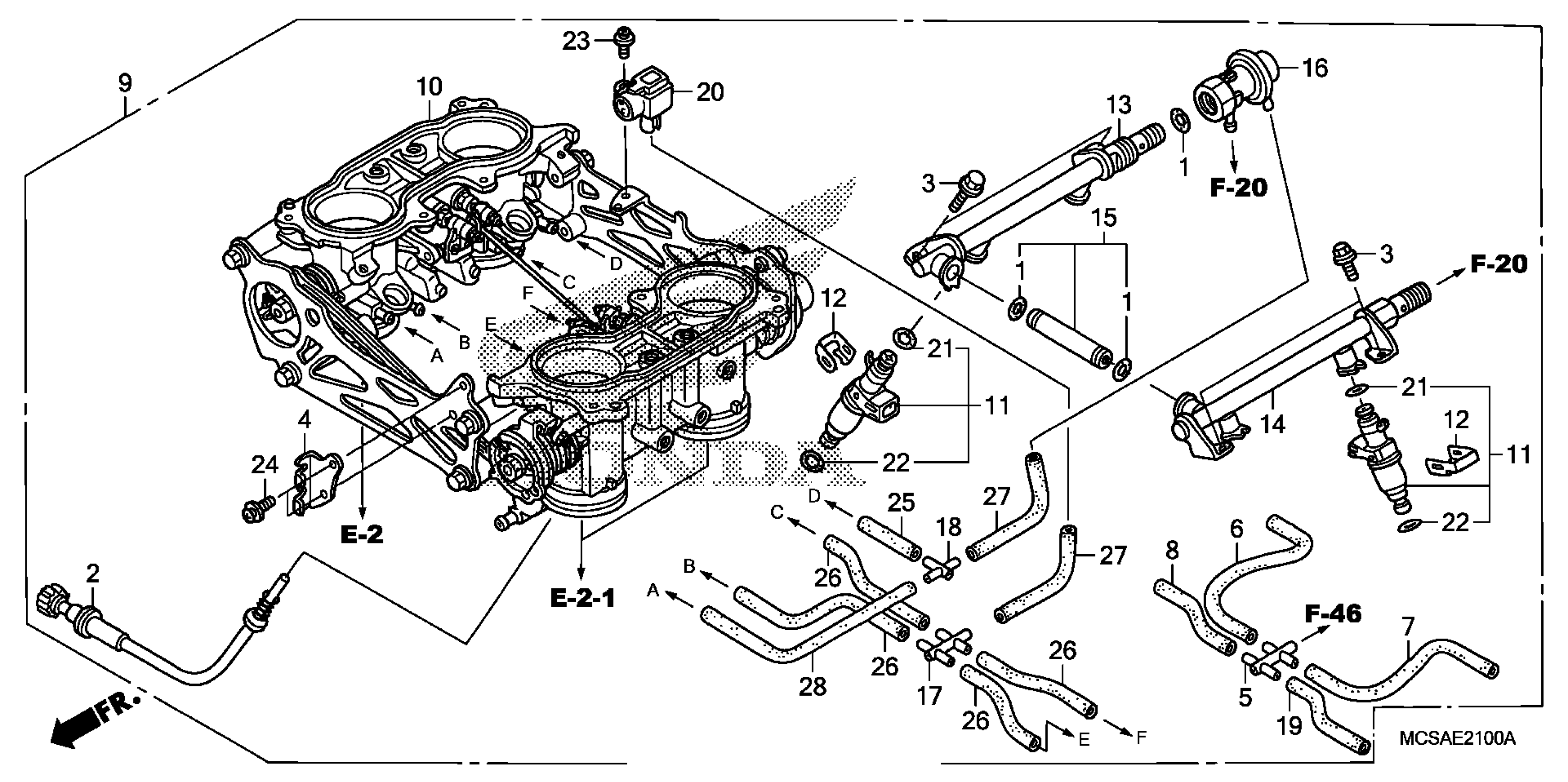

Honda ST1300A (10) MOTORCYCLE, JPN, VIN# JH2SC510-AK800001 THROTTLE BODY (ASSY.) Diagram

#

Description
Price

1

GASKET SET

16010-MCS-003

$5.79

2

SCREW SET, STOP

16029-MCS-003

$39.54

3

BOLT, FLANGE (6X12)

16080-MCJ-003

$1.54

4

STAY, WIRE

16169-MCW-013

$10.33

5

T-JOINT

16180-ME5-761

$31.64

6

TUBE

16197-MBW-L11

$5.64

7

TUBE

16198-MCW-L01

$4.89

8

TUBE

16199-MCW-L01

$3.44

9

BODY ASSY., THROTTLE (GQ35B A)

16400-MCS-772

$2,291.57

10

BODY ASSY., THROTTLE

16401-MCS-771

$1,418.66

11

INJECTOR ASSY., FUEL

16450-MCS-003

$189.89

12

CLIP, INJECTOR

16451-PLC-000

$6.20

13

PIPE, R. FUEL

16610-MCS-003

$66.74

14

PIPE, L. FUEL

16620-MCS-003

$66.74

15

PIPE SET, FUEL

16630-MCS-003

$23.43

16

REGULATOR ASSY., PRESSURE

16740-MCF-013

$64.29

17

JOINT, FIVE-WAY

17201-MCJ-003

$8.61

18

JOINT A, VACUUM TUBE

17201-MG9-000

$15.94

19

TUBE

19199-MCW-L01

$2.61

20

SENSOR, MAP

37830-MCF-003

$206.58

21

O-RING (7.47X3.6)

91301-PLC-000

$3.11

22

O-RING (7.45X3.61) (NOK)

91302-PNA-003

$2.70

23

SCREW-WASHER (4X12)

93892-04012-00

$1.49

23

SCREW-WASHER (4X12) This part replaces 93892-04012-10.

93892-04012-00

$1.49

24

SCREW-WASHER (5X10)

93892-05010-00

$1.49

24

SCREW-WASHER (5X10) This part replaces 93892-05010-10.

93892-05010-00

$1.49

25

BULK HOSE, VACUUM (3.5X1000) (3.5X40)

95005-35001-20M

$9.67

26

BULK HOSE, VACUUM (3.5X1000) (3.5X90)

95005-35001-20M

$9.67

27

BULK HOSE, VACUUM (3.5X1000) (3.5X110)

95005-35001-20M

$9.67

28

BULK HOSE, VACUUM (3.5X1000) (3.5X150)

95005-35001-20M

$9.67
