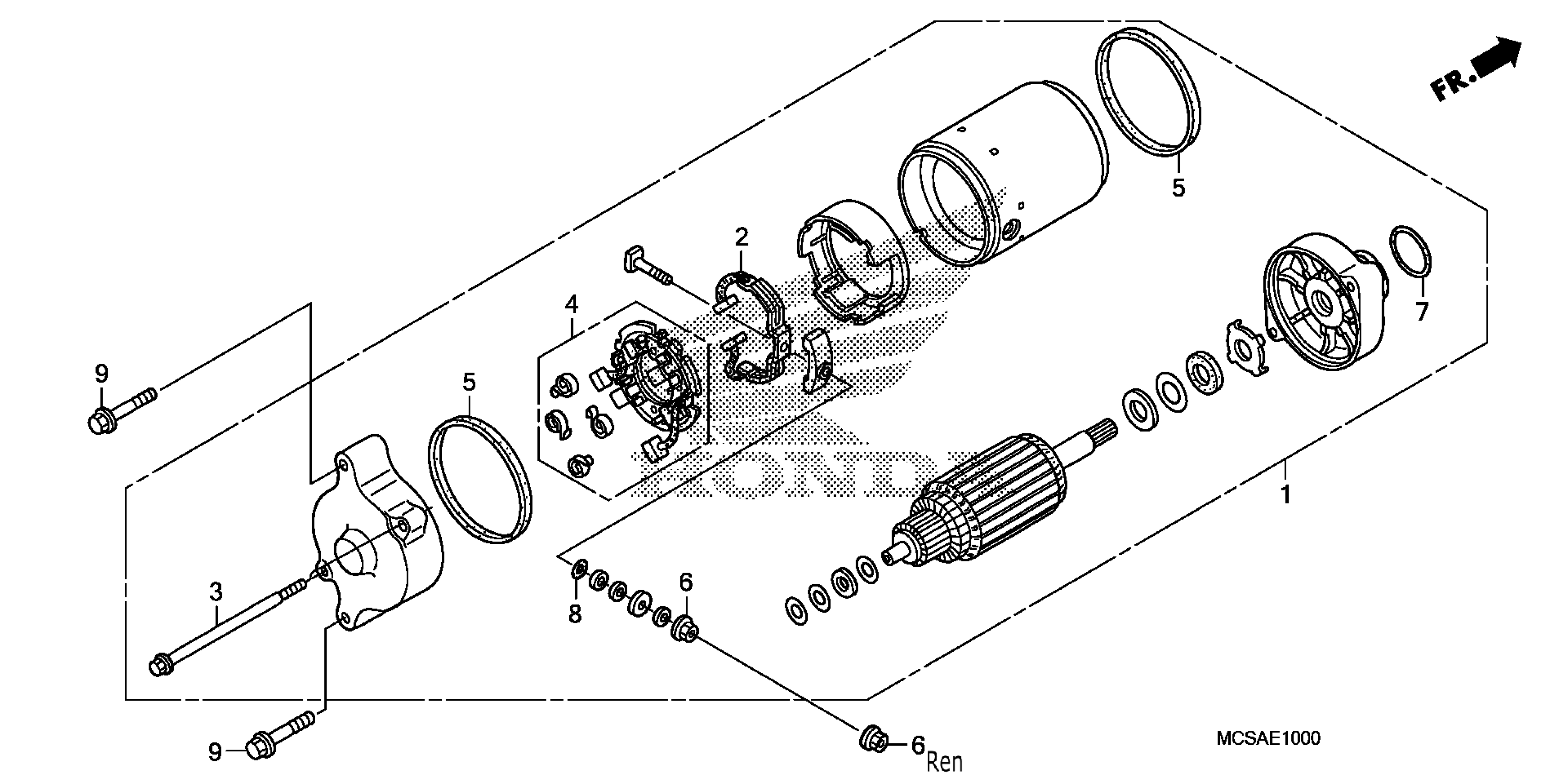

Honda ST1300A (10) MOTORCYCLE, JPN, VIN# JH2SC510-AK800001 STARTING MOTOR Diagram

STARTER MOTOR ASSY. (MITSUBA)

31200-MCS-003

$477.75

TERMINAL SET, BRUSH

31201-MR6-008

$23.39

BOLT, SETTING

31205-MR1-008

$5.26

HOLDER SET, BRUSH

31206-MR6-008

$24.58

RING

31207-KS5-901

$3.12

NUT-WASHER (6MM)

90071-MB0-000

$1.97

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

O-RING (24.4X3.1)

91312-MG7-003

$6.34

O-RING (4X2)

91320-MB0-000

$2.43

BOLT, FLANGE (6X35)

95701-06035-00

$1.80
