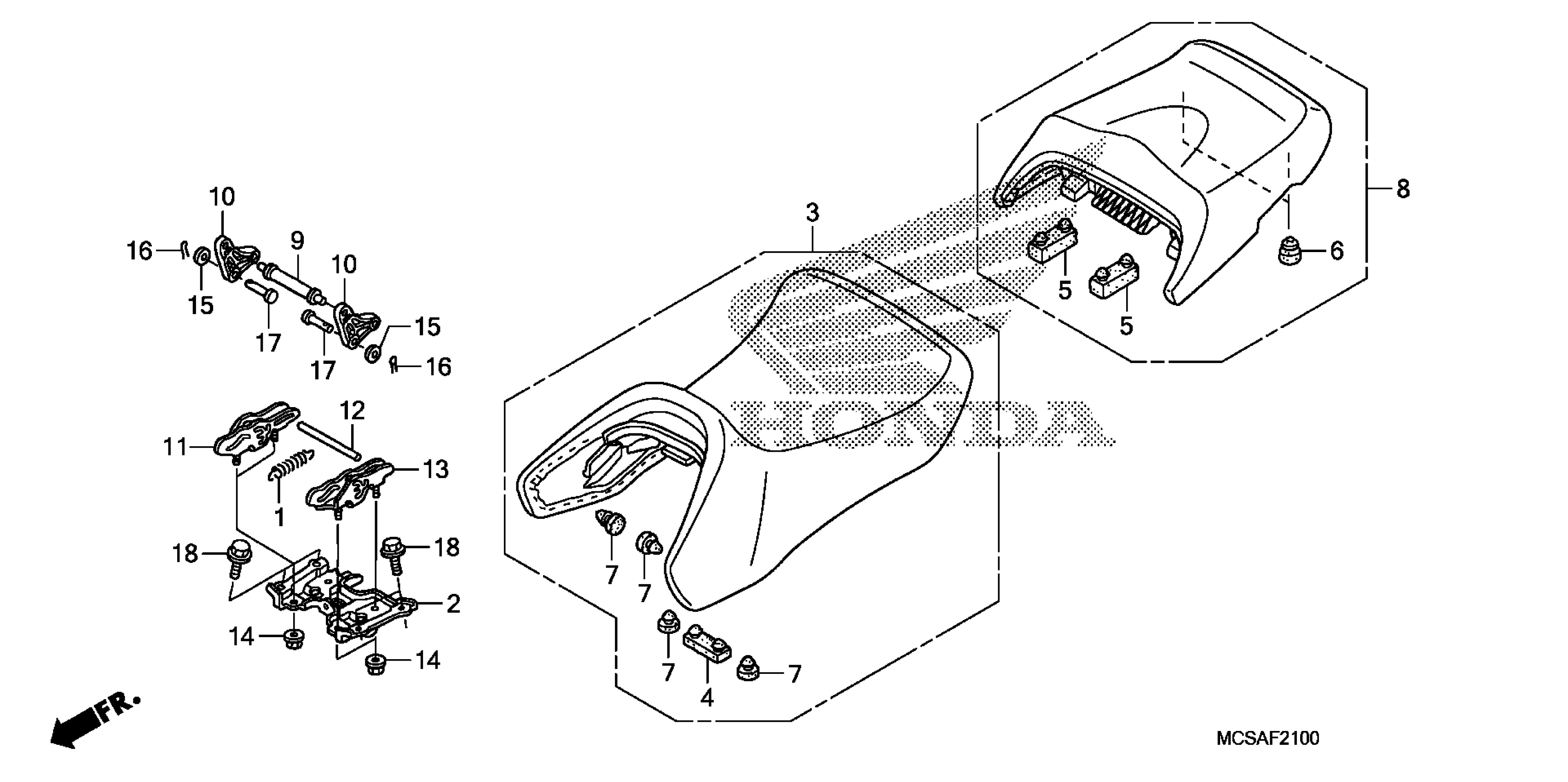

Honda ST1300A (10) MOTORCYCLE, JPN, VIN# JH2SC510-AK800001 SEAT Diagram

SPRING B, BRAKE LOCK CABLE RETURN

46510-KJ9-000

$4.05

PLATE, FR. CROSS

50215-MCS-G00

$48.82

SEAT, MAIN

77100-MCS-G00

$332.20

RUBBER, SEAT SETTING

77204-312-000

$5.05

RUBBER B, SEAT SETTING

77205-286-000

$5.28

RUBBER, SEAT CUSHION

77206-GF0-000

$5.46

RUBBER B, SEAT STOPPER

77215-GC2-000

$5.05

SEAT, PILLION

77300-MCS-G00

$246.69

BAR, SEAT ADJUSTER

77531-MCS-G00

$20.67

GUIDE, SEAT ADJUSTER

77533-MCS-G00

$17.34

BRACKET, R. SEAT ADJUSTER

77534-MCS-G00

$18.98

PIN, SEAT ADJUSTER HOOK

77536-MCS-G00

$6.87

BRACKET, L. SEAT ADJUSTER

77537-MCS-G00

$18.98

NUT, FLANGE (6MM)

94050-06080

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

PIN, SPLIT (1.6X12)

94201-16120

$1.49

PIN A, PILLION STEP

95015-81000

$2.21

BOLT, FLANGE (6X10)

95701-06010-08

$1.61
