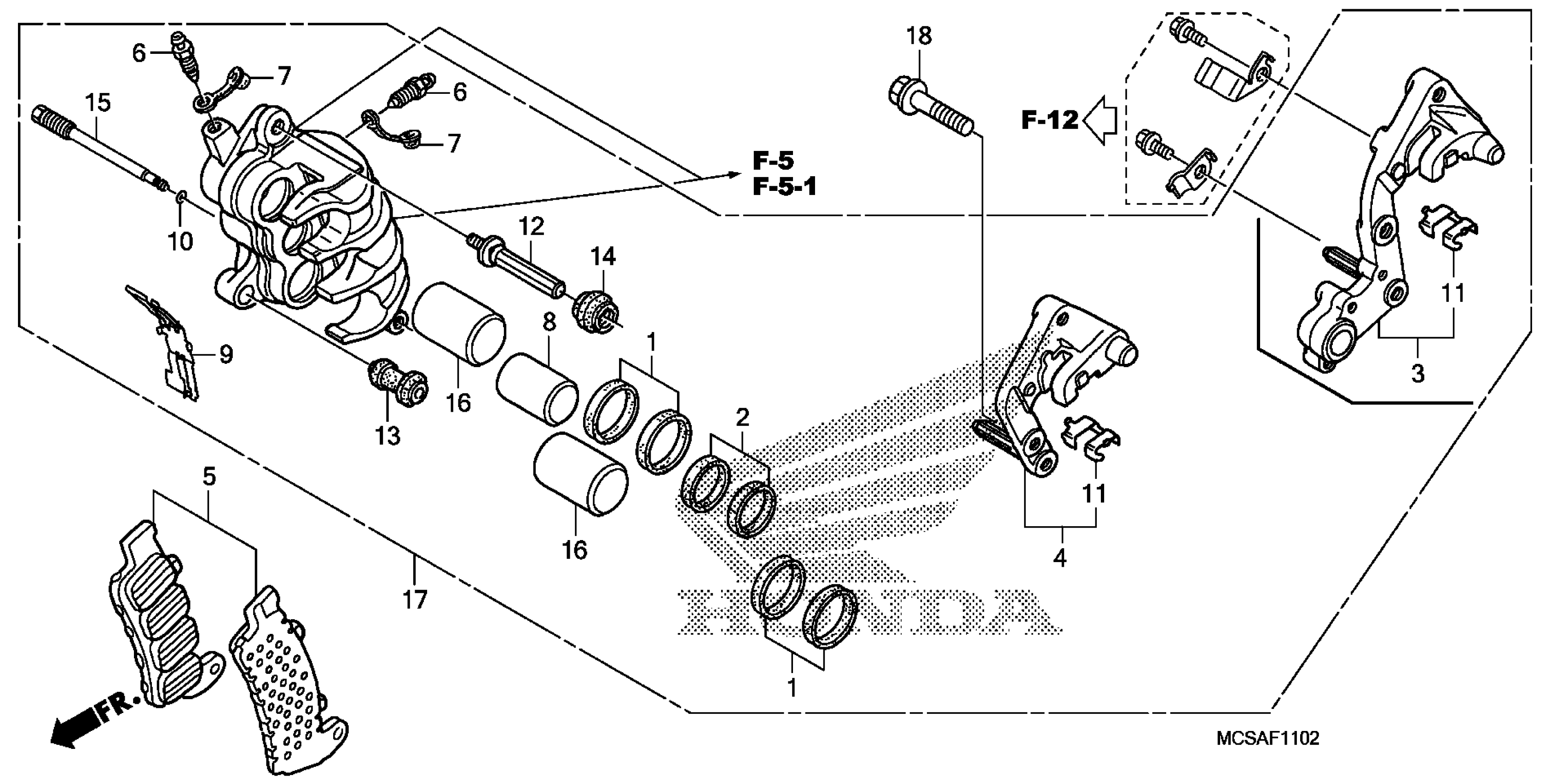

Honda ST1300A (10) MOTORCYCLE, JPN, VIN# JH2SC510-AK800001 RIGHT FRONT BRAKE CALIPER ('08-) Diagram

Description

Price

SEAL SET, PISTON

06431-MA3-405

$7.33

SEAL SET, PISTON

06451-MZ2-405

$12.55

BRACKET SUB-ASSY., R. FR.

06453-MCW-H01

$89.43

PAD SET, FR. This part replaces 06455-MCS-R01.

06455-MCS-R02

$57.73

PAD SET, FR.

06455-MCS-R02

$57.73

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

PISTON A (22X27)

45107-MAJ-G41

$39.18

SPRING, PAD

45108-MBT-D52

$7.54

RING, STOPPER

45111-MAJ-G41

$3.80

RETAINER, BRACKET

45112-MZ2-006

$8.85

BOLT A, PIN

45131-ML7-921

$15.44

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

PIN, HANGER

45215-MBT-D51

$6.90

PISTON B (27X35)

45218-MAJ-G41

$39.18

CALIPER SUB-ASSY., R. FR.

45250-MCS-R02

$631.43

BOLT, FLANGE (8X32) (SAGA)

90131-KBV-003

$4.75
