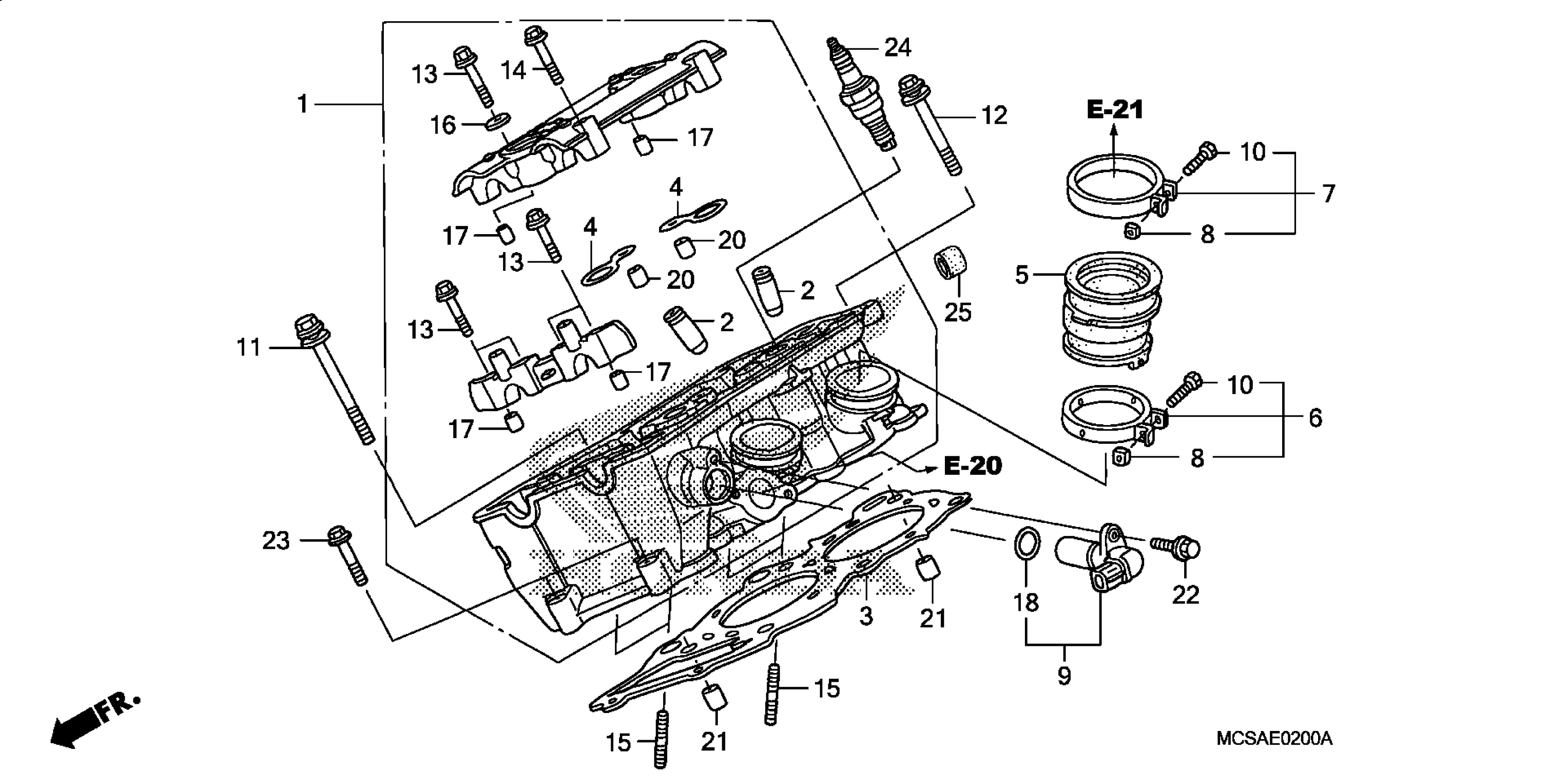

Honda ST1300A (10) MOTORCYCLE, JPN, VIN# JH2SC510-AK800001 RIGHT CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY., R. | Use up to Engine SN 2615582

12010-MCS-D80

$995.19

1

CYLINDER HEAD ASSY., R. | Use from Engine SN 2615583

12010-MCS-D81

$980.81

2

GUIDE, VALVE (OVER SIZE)

12205-MCS-305

$16.03

3

GASKET, R. CYLINDER HEAD

12251-MCS-D81

$49.21

4

GASKET, PLUG HOLE

12395-MCS-000

$4.96

5

INSULATOR, THROTTLE BODY

16211-MCS-000

$18.91

6

BAND A, INSULATOR

16217-MCS-000

$3.97

7

BAND B, INSULATOR

16218-MCS-000

$4.59

8

NUT, SQUARE (5MM)

16222-MV4-300

$1.99

9

PICK-UP ASSY.

28810-P7Z-004

$232.44

10

BOLT, RECESSED (5X28)

90005-MAS-E00

$2.96

11

BOLT-WASHER (10X105)

90007-MAT-000

$9.97

12

BOLT-WASHER (10X90)

90007-MCS-000

$5.13

13

BOLT, FLANGE (6X48)

90018-425-000

$3.19

14

BOLT, FLANGE (6X39.5)

90019-MA6-000

$2.80

15

BOLT, STUD (8X24)

90035-MM5-000

$4.88

16

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

17

PIN, DOWEL (8X16) This part replaces 90702-HC4-000.

94301-08160

$1.93

17

PIN, DOWEL (8X16)

94301-08160

$1.93

18

O-RING (16X2.1) (NOK)

91309-PX4-003

$2.80

20

PIN, DOWEL (10X16)

94301-10160

$2.80

21

PIN, DOWEL (12X20)

94301-12200

$2.80

22

BOLT, FLANGE (6X18)

95701-06018-07

$1.63

23

BOLT, FLANGE (6X40)

95701-06040-00

$1.88

24

SPARK PLUG (CR7EH9) (NGK)

98059-57916

$7.24

24

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-57926.

98059-59916

$6.79

24

SPARK PLUG (CR8EH9) (NGK) | (Optional).

98059-58916

$7.50

24

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-58926.

98059-59916

$6.79

24

SPARK PLUG (CR9EH-9) (NGK) | (Optional). This part replaces 98059-58926.

98059-59916

$6.79

24

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-59910.

98059-59916

$6.79

24

SPARK PLUG (CR9EH-9) (NGK) | (Optional). This part replaces 98059-59910.

98059-59916

$6.79

24

SPARK PLUG (CR9EH-9) (NGK)

98059-59916

$6.79

24

SPARK PLUG (CR9EH-9) (NGK) | (Optional).

98059-59916

$6.79

24

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-59926.

98059-59916

$6.79

24

SPARK PLUG (CR9EH-9) (NGK) | (Optional). This part replaces 98059-59926.

98059-59916

$6.79

25

TUBE, BRAKE PEDAL SPRING

46515-MN1-670

$3.01
