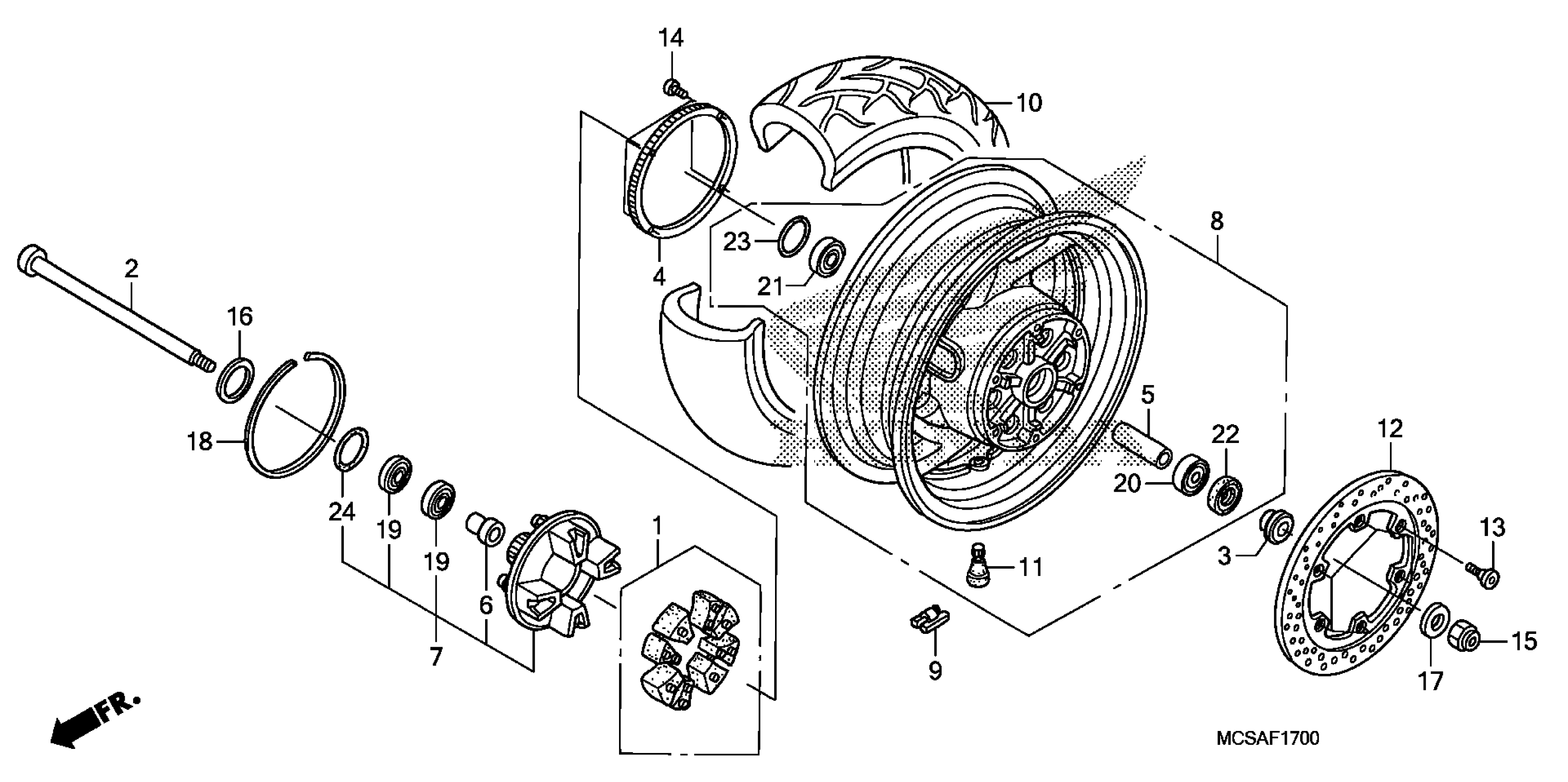

Honda ST1300A (10) MOTORCYCLE, JPN, VIN# JH2SC510-AK800001 REAR WHEEL Diagram

#

Description
Price

1

DAMPER SET, WHEEL

06410-MCS-G00

$22.97

2

AXLE, RR. WHEEL

42301-MCS-G00

$51.59

3

COLLAR, RR. WHEEL SIDE

42311-MCS-G00

$17.01

5

COLLAR, RR. AXLE DISTANCE

42620-MT3-000

$20.84

6

COLLAR A, RR. AXLE DISTANCE

42624-MCH-000

$13.25

7

FLANGE SET, FINAL DRIVEN

42630-MCS-G00

$346.09

8

WHEEL SUB-ASSY., RR. (COO)

42650-MCS-305

Unavailable

9

WEIGHT, BALANCE (10G)

42704-MCF-D60

$11.69

9

WEIGHT, BALANCE (20G)

42705-MCF-D60

$14.21

9

WEIGHT, BALANCE (30G)

42706-MCF-D60

$13.29

10

TIRE, RR. (170/60ZR17 M/C 72W) (BS)

42711-MCS-G04

$290.71

10

TIRE (170/60ZR17) This part replaces 42711-MCS-G05.

42711-MCS-G08

$333.17

10

TIRE (170/60ZR17) This part replaces 42711-MCS-G06.

42711-MCS-G08

$333.17

11

VALVE, RIM (BS)

42753-ML7-003

$11.69

11

VALVE, RIM (DUNLOP)

42753-ML7-004

$11.69

12

DISK, RR. BRAKE

43351-MCS-G00

$375.32

13

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$5.93

15

NUT, U (18MM)

90306-MCS-G00

$7.24

16

WASHER (20X31.5X2)

90401-MAS-000

$3.06

17

WASHER, SPECIAL (18MM)

90432-MCS-G00

$2.65

18

CIRCLIP (INNER) (188)

90651-MCH-000

$16.37

19

BEARING, RADIAL BALL (6905RS)

91052-KZ4-J21

$15.94

20

BEARING, RADIAL BALL (6204UU)

91052-MAE-004

$25.25

21

BEARING, RADIAL BALL (20X47X20.6) (NTN)

91053-MN5-003

$68.78

22

DUST SEAL (30X47X13)

91251-MCS-G01

$9.78

23

O-RING (61X2)

91302-MA6-003

$4.93

24

O-RING (50.5X3.5) (ARAI)

91358-MG9-003

Unavailable

24

O-RING (50.5X3.5) (ARAI) This part replaces 91358-MG9-004.

91358-MG9-003

Unavailable
