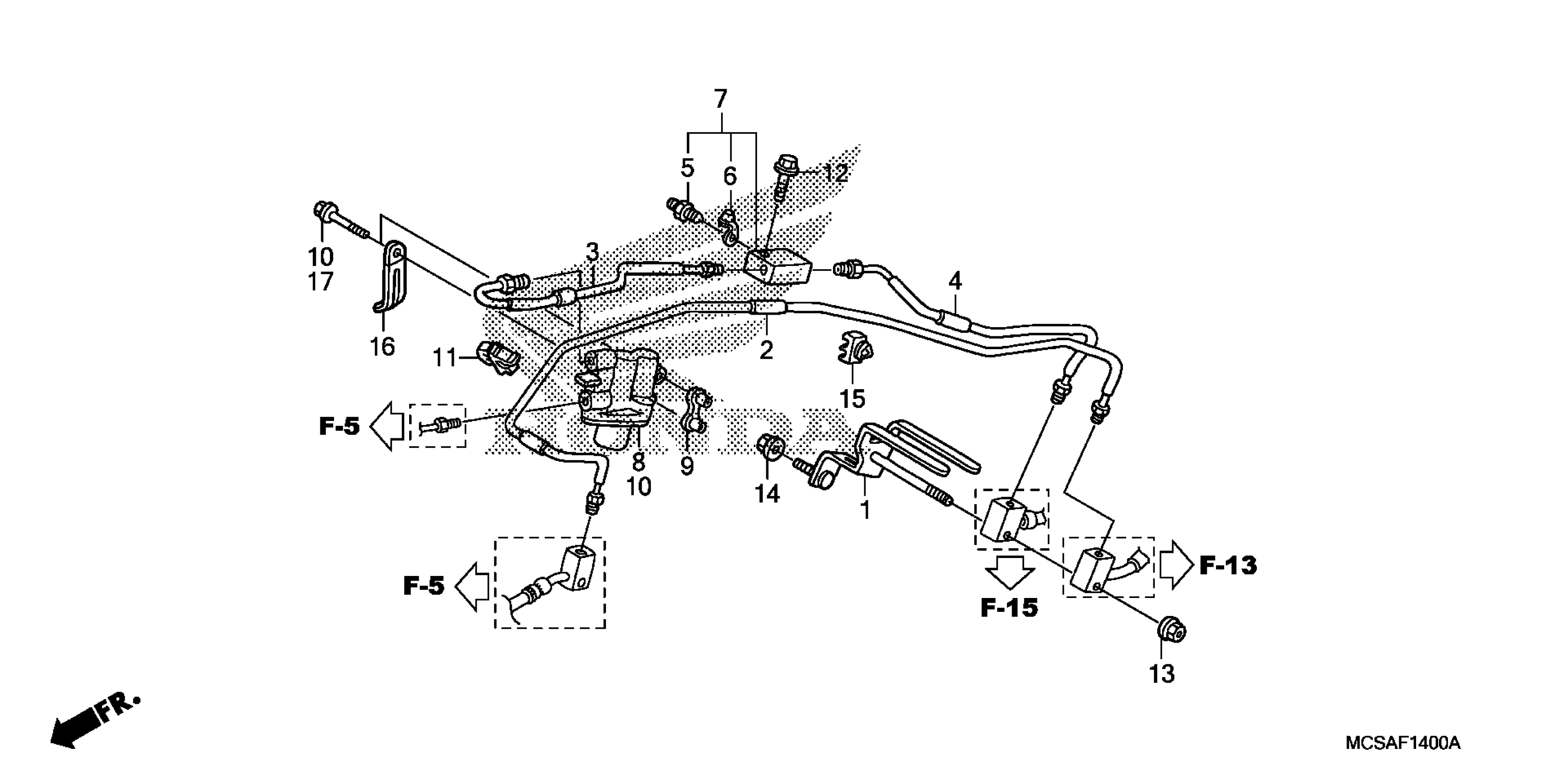

Honda ST1300A (10) MOTORCYCLE, JPN, VIN# JH2SC510-AK800001 PROPORTIONING CONTROL VALVE (ST1300) Diagram

STAY, RR. BRAKE HOSE

43157-MCS-610

Unavailable

PIPE A, SUB-BRAKE

43321-MCS-610

Unavailable

PIPE B, SECOND BRAKE MASTER CYLINDER

43332-MCS-G00

$23.21

PIPE C, SECOND BRAKE MASTER CYLINDER

43333-MCS-610

Unavailable

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

JOINT ASSY., BLEEDER (TWO-WAY)

45160-MCS-G00

$23.95

VALVE ASSY., PROPORTIONING CONTROL

46200-MCS-R01

$461.51

STAY, PCV

46210-MCS-G00

$4.69

CLIP C, BRAKE PIPE

50304-HE0-003

$3.39

BOLT, FLANGE (6X28)

90114-MCS-G00

$1.49

NUT, U (6MM) (FUSE RASHI)

90301-473-003

$4.07

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

CLAMP, BRAKE PIPE

90651-MAT-000

$3.48

CLIP, WIRE

91406-166-000

$3.83

BOLT, FLANGE (6X50)

95801-06050-08

$1.49
