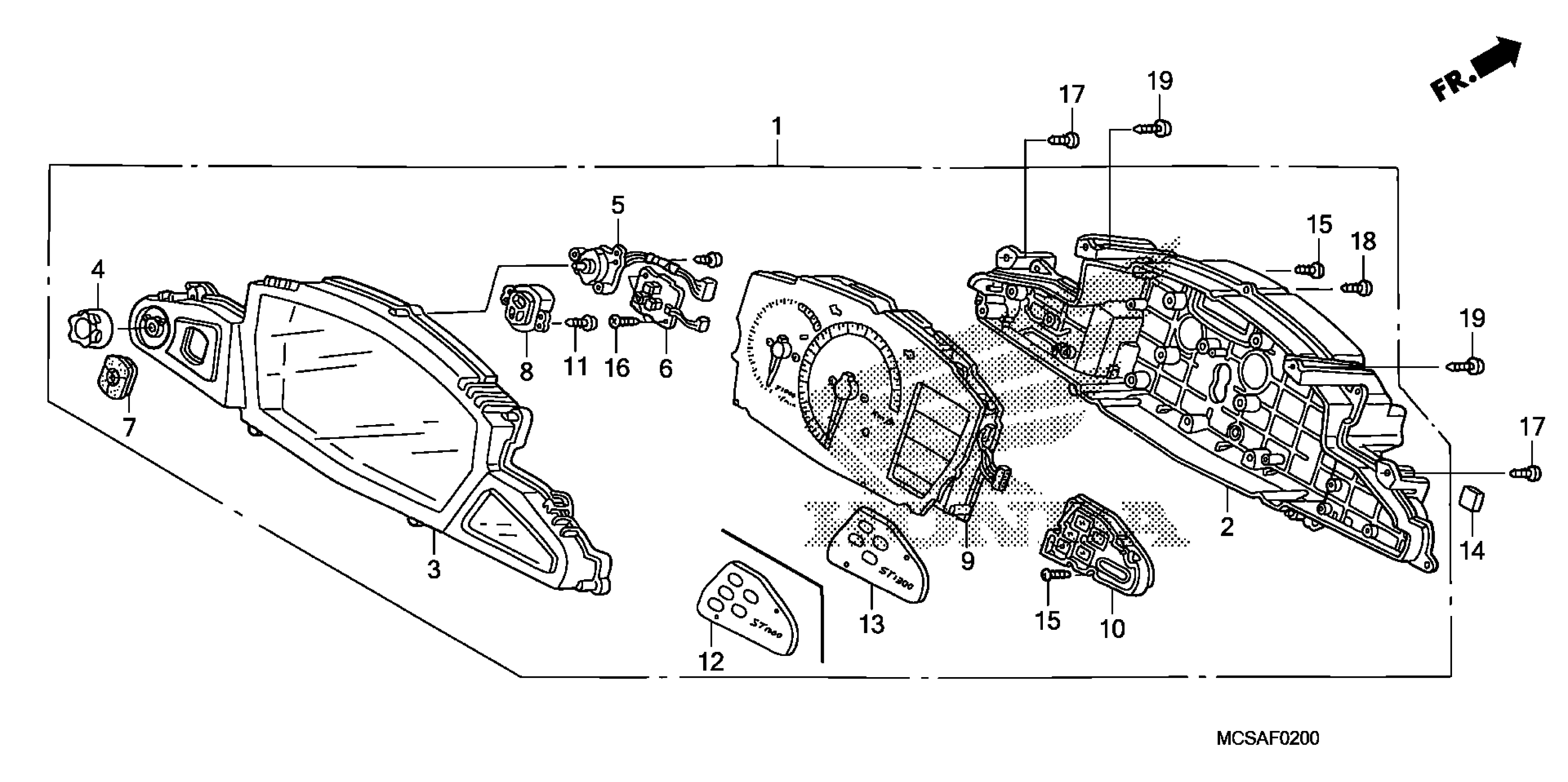

Honda ST1300A (10) MOTORCYCLE, JPN, VIN# JH2SC510-AK800001 METER Diagram

#

Description
Price

1

METER ASSY., COMBINATION (COO) This part replaces 37100-MCS-305.

37100-MCS-315

$1,568.26

1

METER ASSY., COMBINATION (COO)

37100-MCS-315

$1,568.26

2

CASE ASSY. (LOWER)

37101-MCS-G01

$93.48

3

CASE ASSY. (UPPER) (COO)

37102-MCS-305

$107.33

4

KNOB ASSY.

37103-MCS-G01

$8.13

5

SWITCH ASSY., AIMING

37104-MCS-G01

$32.05

6

SWITCH ASSY., THREE WAY

37105-MCS-G01

$25.95

7

RUBBER, SWITCH

37107-MCS-G01

$4.59

8

PLATE (3SW)

37108-MCS-G01

$4.97

9

METER, COMBINATION (MPH/KPH) This part replaces 37110-MCS-L01.

37110-MCS-L02

$1,348.57

9

METER, COMBINATION (MPH/KPH)

37110-MCS-L02

$1,348.57

10

INDICATOR ASSY.

37120-MCS-641

Unavailable

11

SCREW, TAPPING (3X14)

37214-KV7-671

$1.49

13

LENS, SHEET

37601-MCS-771

$4.72

14

RUBBER A, SIDE COVER

83605-MY5-G30

$2.61

15

SCREW, TAPPING (3X14)

90101-MCV-000

$1.49

16

SCREW, TAPPING (3X12)

93901-22320

$1.49

17

SCREW, TAPPING (4X16)

93903-24410

$1.49

18

SCREW, TAPPING (4X16)

93903-24420

$1.49

19

SCREW, TAPPING (5X12)

93903-25210

$1.49
