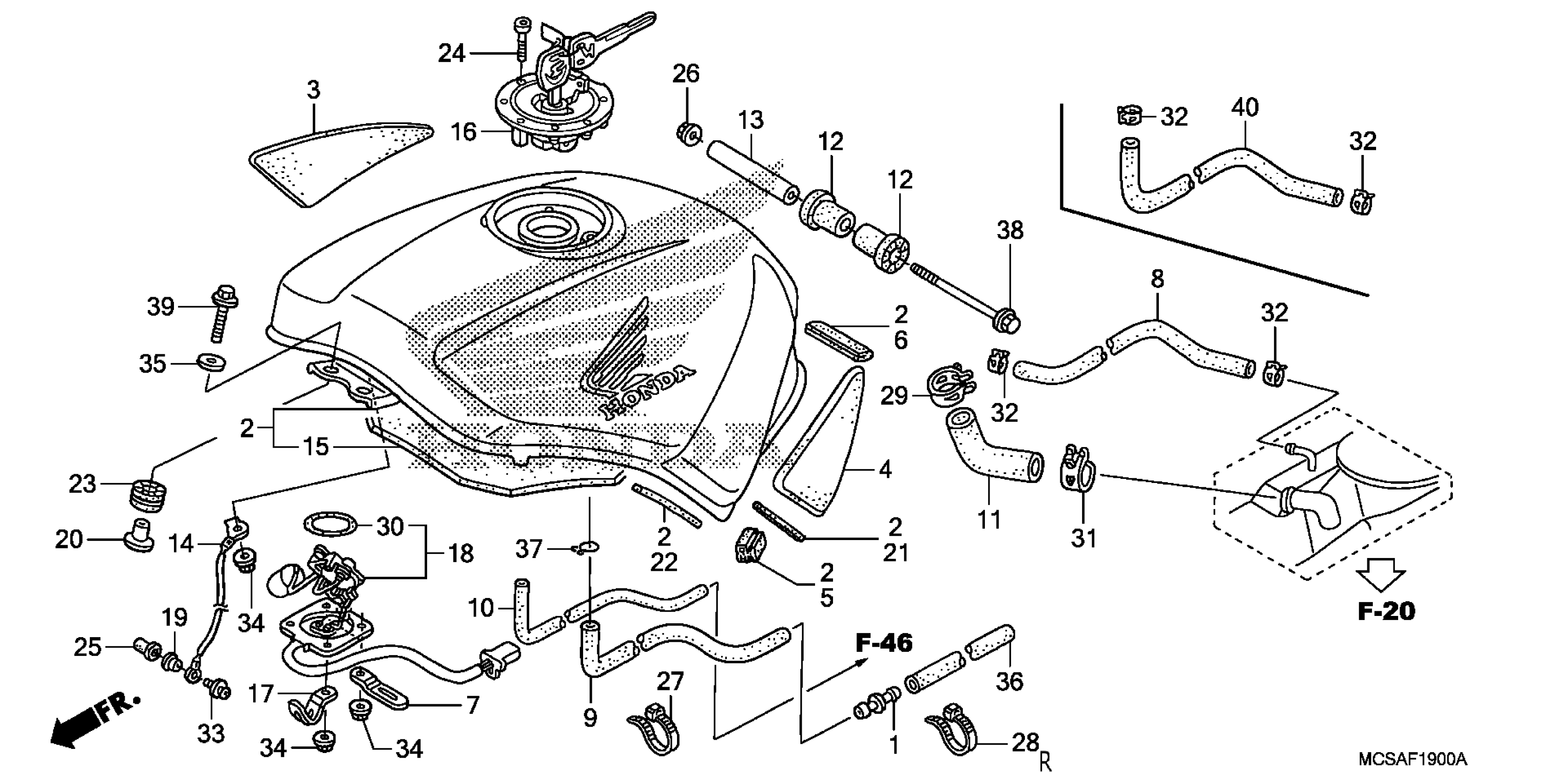

Honda ST1300A (10) MOTORCYCLE, JPN, VIN# JH2SC510-AK800001 FUEL TANK Diagram

#

Description
Price

1

JOINT, BREATHER TUBE

17359-419-670

$1.95

2

TANK SET, FUEL (TYPE2) (WL) | Graphite black NHB01;

17500-MCS-K10ZA

$1,073.70

3

PAD, R. KNEE GRIP

17506-MCS-G01

$37.87

4

PAD, L. KNEE GRIP

17507-MCS-G01

$37.87

5

CUSHION, FUEL TANK

17514-MCS-G00

$4.80

6

TRIM, FUEL TANK

17516-HC0-000

$4.49

7

CLAMP A, TUBE

17522-MCW-D00

$2.70

9

TUBE, DRAIN

17543-MCS-L00

$13.69

10

TUBE, BREATHER

17544-MCS-R10

$7.90

11

TUBE, FUEL JOINT

17545-MCS-R10

$27.97

12

CUSHION, RR. FUEL TANK PIVOT

17548-MCS-G00

$5.67

13

COLLAR, TANK SETTING

17549-MCS-G00

$4.89

14

CABLE, FUEL TANK STOPPER

17575-MCS-G01

$8.23

15

MAT, FUEL TANK

17590-MCS-G00

$12.02

16

CAP, FUEL FILLER This part replaces 17620-MAS-E02.

17620-MAS-E04

$202.36

16

CAP, FUEL FILLER This part replaces 17620-MAS-E03.

17620-MAS-E04

$202.36

17

CLIP, SUB-WIRE

32901-MA1-000

$4.95

18

FUEL UNIT SET

37080-MCS-G00

$114.01

19

COLLAR, RIVETING

61102-329-300

$2.92

20

COLLAR, SETTING

61104-422-000

$6.91

21

MAT D, HEAT GUARD

64368-MCS-G00

$1.49

22

MAT E, HEAT GUARD

64369-MCS-G00

$2.67

23

RUBBER, TAILLIGHT MOUNTING

84703-425-000

$4.72

24

BOLT, SOCKET (4X21)

90074-MT4-000

$3.04

25

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.53

26

NUT, U (6MM) (FUSE RASHI)

90301-473-003

$4.07

27

BAND, WIRE (95MM)

90650-KV6-003

$3.12

28

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

29

CLAMP, TUBE (D23.6)

91405-MCS-G00

$4.30

30

O-RING (39.5X5)

91305-MC7-000

$3.31

31

CLAMP, TUBE (D23.6)

91405-MCS-G00

$4.30

32

CLAMP, TUBE (D10)

95002-41000-08

$2.41

33

SCREW-WASHER (5X20)

93891-05020-00

$1.49

34

NUT, FLANGE (6MM)

94050-06080

$1.49

35

WASHER, PLAIN (6MM)

94103-06700

$1.49

36

BULK HOSE, FUEL (7.5X8000) (7.3X700)

95001-75008-60M

$103.82

37

CLIP, TUBE (B12)

95002-02120

$2.00

38

BOLT, FLANGE (6X115)

95701-06115-08

$3.70

39

BOLT, FLANGE (6X28)

96001-06028-07

$1.51

40

TUBE, AIR VENT

17574-MCS-R10

$13.16
