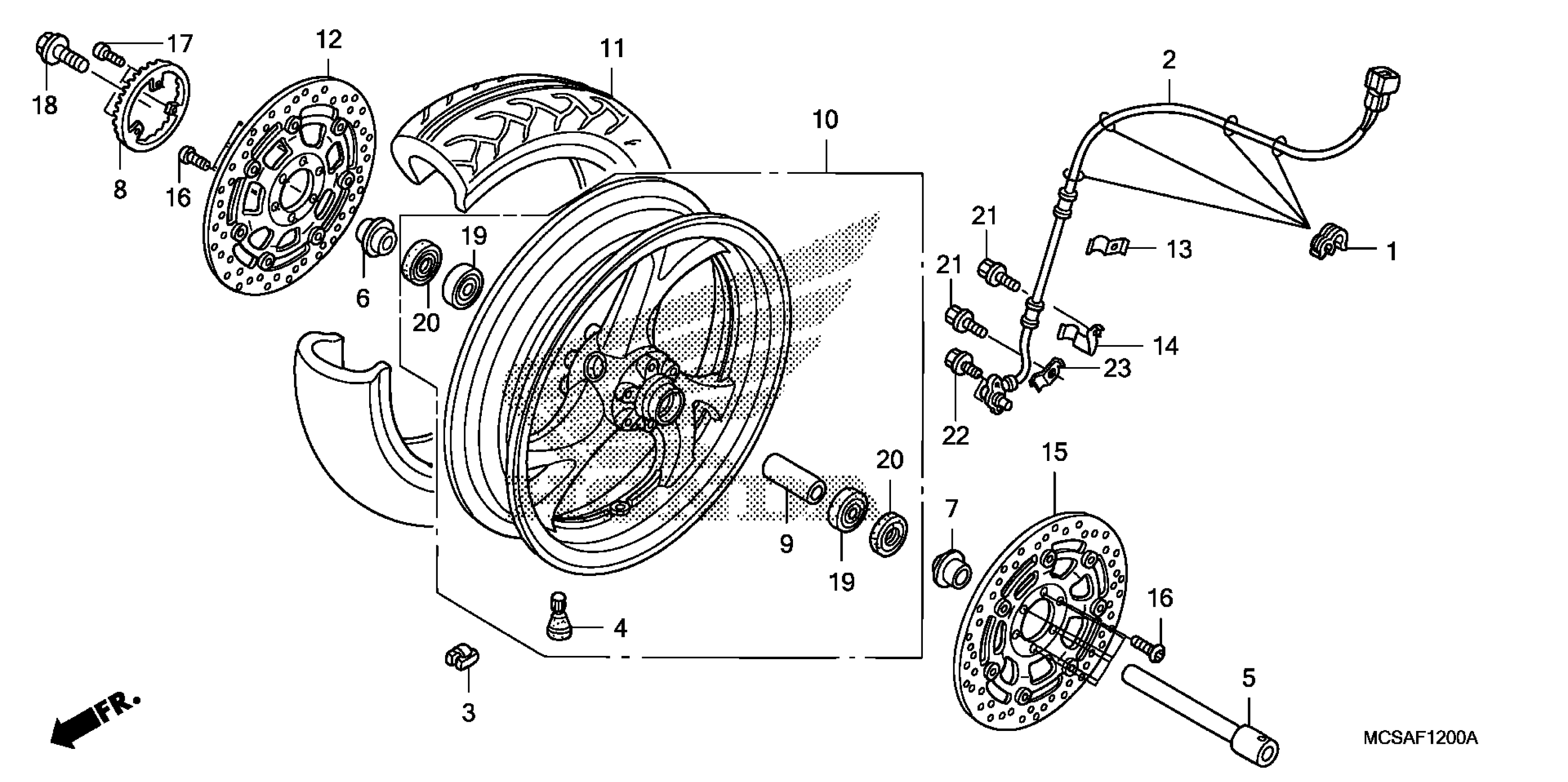

Honda ST1300A (10) MOTORCYCLE, JPN, VIN# JH2SC510-AK800001 FRONT WHEEL Diagram

#

Description
Price

3

WEIGHT, BALANCE (10G)

42704-MCF-D60

$12.74

3

WEIGHT, BALANCE (20G)

42705-MCF-D60

$15.38

3

WEIGHT, BALANCE (30G)

42706-MCF-D60

$14.48

4

VALVE, RIM (BS)

42753-ML7-003

$12.74

4

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

5

AXLE, FR. WHEEL

44301-MCS-G01

$69.80

6

COLLAR, R. FR. WHEEL SIDE

44311-MCS-G00

$23.77

7

COLLAR, L. FR. WHEEL SIDE

44312-MCS-G00

$18.66

9

COLLAR, FR. AXLE DISTANCE

44620-MCS-G00

$24.49

10

WHEEL SUB-ASSY., FR. (COO)

44650-MCS-305

Unavailable

11

TIRE, FR. (120/70ZR18 M/C 59W) (BS)

44711-MCS-G04

$201.59

11

TIRE, FR. This part replaces 44711-MCS-G05.

44711-MCS-G08

$263.68

11

TIRE, FR. This part replaces 44711-MCS-G06.

44711-MCS-G08

$263.68

11

TIRE, FR. This part replaces 44711-MCS-G07.

44711-MCS-G08

$263.68

12

DISK, R. FR. BRAKE

45120-MCS-G01

$522.93

15

DISK, L. FR. BRAKE

45220-MCS-G01

$522.93

16

BOLT, DISK (6X17) (SAGA)

90106-MT3-003

$3.80

18

BOLT, FR. AXLE

90305-MCJ-000

$14.25

19

BEARING, RADIAL BALL (6205UU)

91053-MCS-G01

$14.29

20

DUST SEAL (34X52X10)

91252-MCS-G01

$11.31
