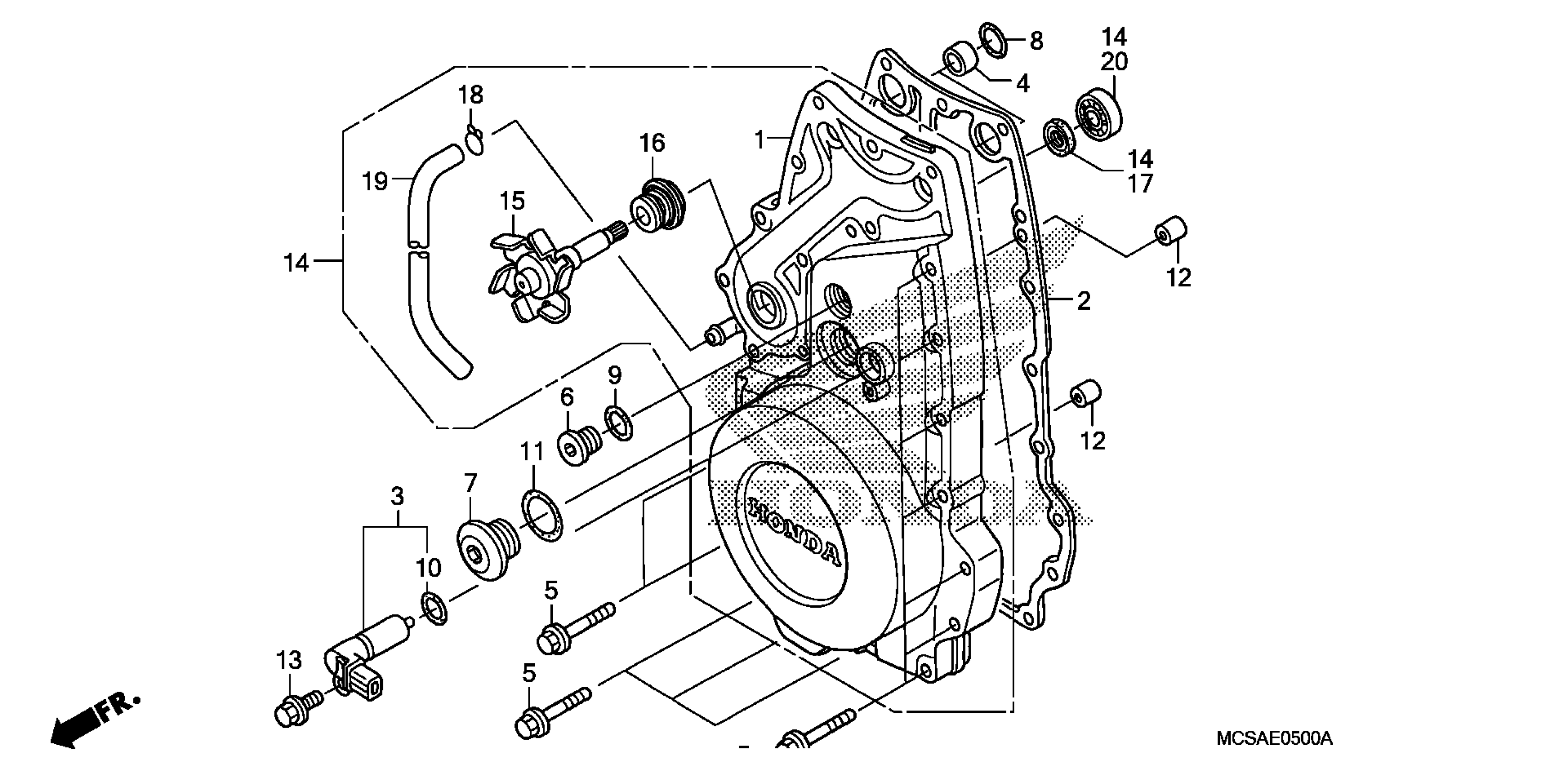

Honda ST1300A (10) MOTORCYCLE, JPN, VIN# JH2SC510-AK800001 FRONT CRANKCASE COVER Diagram

#

Description
Price

2

GASKET, FR. COVER | Use up to Engine SN 2613510 This part replaces 11394-MCS-000.

11394-MCS-020

$18.82

2

GASKET, FR. COVER This part replaces 11394-MCS-010.

11394-MCS-020

$18.82

3

GENERATOR ASSY., PULSE

30300-MCS-003

$71.14

4

COLLAR, FR. FORK (OUTER)

51486-087-711

$5.30

5

BOLT, FLANGE (6X40) (NSHF)

90004-GHB-710

$3.79

6

CAP (14MM)

90084-KY2-000

$14.34

7

CAP

90087-KT7-000

$17.72

8

O-RING (19.9X3.1)

91301-MCS-A11

$3.21

9

O-RING (13.8X2.5)

91303-377-000

$3.18

10

O-RING (16X2.1) (NOK)

91309-PX4-003

$2.80

11

O-RING (29.7X2.4) (NOK) This part replaces 91356-425-003.

91356-425-005

$2.80

11

O-RING (29.7X2.4) (NOK)

91356-425-005

$2.80

12

PIN, DOWEL (8X14)

94301-08140

$2.04

13

BOLT, FLANGE (6X18)

95701-06018-00

$1.48

14

COVER, FR. CRANKCASE

11340-MCS-D80

$419.61

15

IMPELLER, WATER PUMP

19210-MCS-000

$51.72

16

SEAL, MECHANICAL

19217-MAL-300

$47.62

17

OIL SEAL (12X22X5) This part replaces 91201-148-003.

91201-965-000

$3.77

17

OIL SEAL (12X22X5)

91201-965-000

$3.77

18

CLIP, TUBE (B10)

95002-02100

$1.72

19

BULK HOSE, VACUUM (5.5X8000) (5.3X300)

95005-55008-10M

Unavailable

20

BEARING, RADIAL BALL (6200)

96100-62003-00

$11.43
