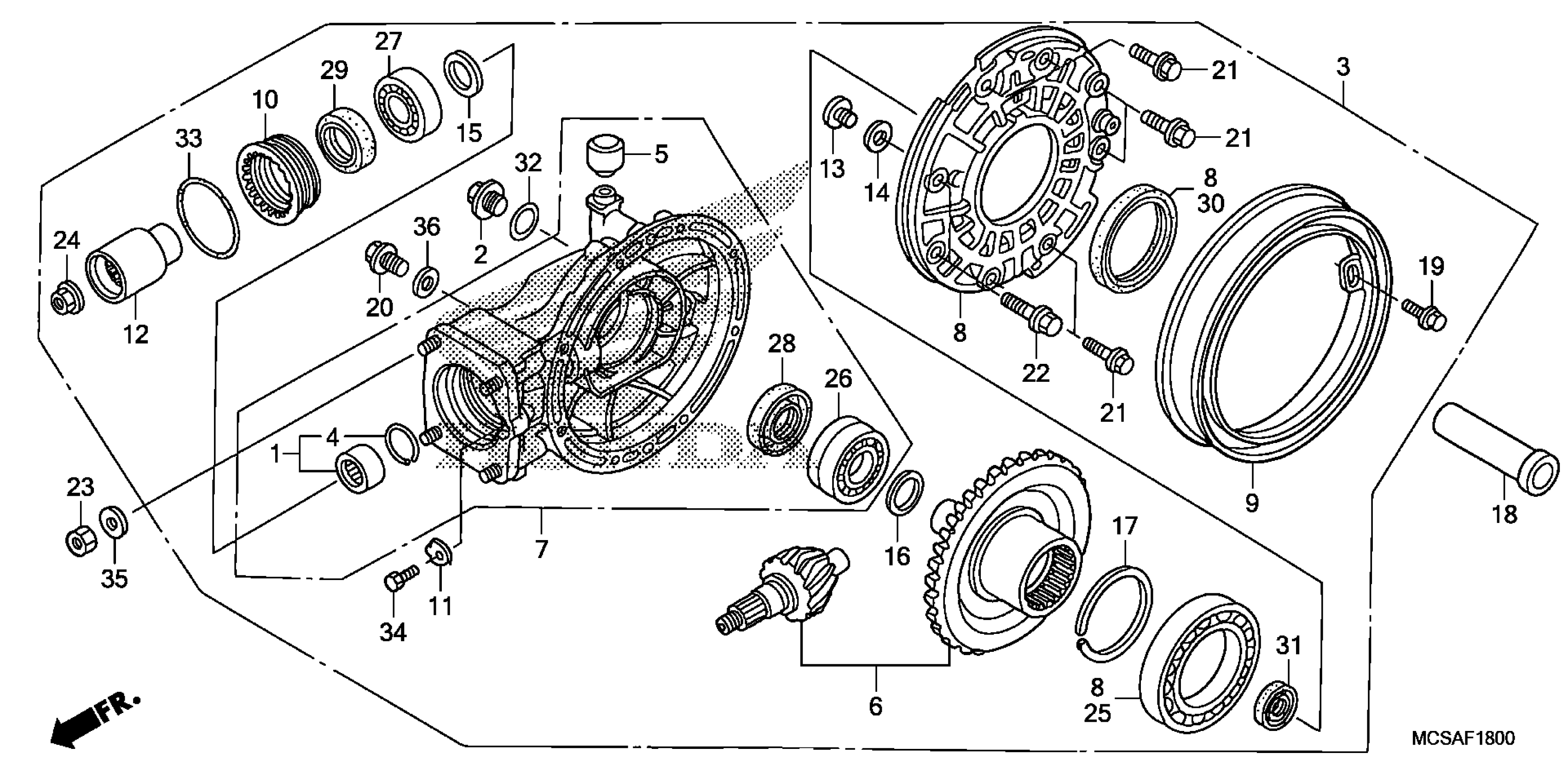

Honda ST1300A (10) MOTORCYCLE, JPN, VIN# JH2SC510-AK800001 FINAL DRIVEN GEAR (ST1300) Diagram

#

Description
Price

1

BEARING SET, NEEDLE

06910-MZ0-000

$33.00

2

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

2

CAP, VALVE ADJ.

12361-300-000

Unavailable

2

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

3

GEAR ASSY., FINAL DRIVEN

41300-MCS-612

Unavailable

4

RING, STOPPER

41305-MB4-770

$5.62

5

CAP, BREATHER

41306-MB0-020

$9.24

6

GEAR SET, FINAL

41310-MCS-G01

$394.51

7

CASE SUB-ASSY., FINAL GEAR

41311-MCS-G02

$1,217.48

8

COVER SUB-ASSY., FINAL GEAR

41320-MCS-610

$227.05

9

PLATE, DUST GUARD

41324-MAJ-G00

$32.10

10

RETAINER, BEARING

41331-MN5-000

$115.31

11

LOCK A, BEARING ADJUSTING (SINGLE TAB)

41332-415-000

$2.51

11

LOCK B, BEARING ADJUSTING (DOUBLE TABS)

41333-415-000

$2.51

12

JOINT, PINION

41410-MCS-G00

$65.80

13

PIN, RING GEAR STOPPER

41436-MB0-310

$31.90

14

SHIM A, STOPPER PIN (0.10)

41437-MB0-310

$5.45

14

SHIM B, STOPPER PIN (0.15)

41438-MB0-310

$5.14

15

SHIM A, PINION GEAR (1.32)

41450-MT3-610

$7.43

15

SHIM B, PINION GEAR (1.35)

41451-MT3-610

$7.43

15

SHIM C, PINION GEAR (1.38)

41452-MT3-610

$7.43

15

SHIM D, PINION GEAR (1.41)

41453-MT3-610

$7.43

15

SHIM E, PINION GEAR (1.44)

41454-MT3-610

$7.43

15

SHIM F, PINION GEAR (1.47)

41455-MT3-610

$7.43

15

SHIM G, PINION GEAR (1.50)

41456-MT3-610

$7.43

15

SHIM H, PINION GEAR (1.53)

41457-MT3-610

$7.43

15

SHIM I, PINION GEAR (1.56)

41458-MT3-610

$7.43

15

SHIM J, PINION GEAR (1.59)

41459-MT3-610

$7.43

15

SHIM K, PINION GEAR (1.62)

41460-MT3-610

$7.43

15

SHIM L, PINION GEAR (1.65)

41461-MT3-610

$7.43

15

SHIM M, PINION GEAR (1.68)

41462-MT3-610

$7.43

16

WASHER, SPECIAL (35X40)

41510-MB0-003

$12.26

17

SHIM A, RING GEAR (1.82)

41530-MT3-610

$22.69

17

SHIM B, RING GEAR (1.85)

41531-MT3-610

$23.72

17

SHIM C, RING GEAR (1.88)

41532-MT3-610

$22.69

17

SHIM D, RING GEAR (1.91)

41533-MT3-610

$22.69

17

SHIM E, RING GEAR (1.94)

41534-MT3-610

$23.72

17

SHIM F, RING GEAR (1.97)

41535-MT3-610

$22.69

17

SHIM G, RING GEAR (2.00)

41536-MT3-610

$23.72

17

SHIM H, RING GEAR (2.03)

41537-MT3-610

$22.69

17

SHIM I, RING GEAR (2.06)

41538-MT3-610

$23.72

17

SHIM J, RING GEAR (2.09)

41539-MT3-610

$22.69

17

SHIM K, RING GEAR (2.12)

41540-MT3-610

$23.72

17

SHIM L, RING GEAR (2.15)

41541-MT3-610

$22.69

17

SHIM M, RING GEAR (2.18)

41542-MT3-610

$22.69

17

SHIM N, RING GEAR (2.21)

41543-MT3-610

$22.69

17

SHIM O, RING GEAR (2.24)

41544-MT3-610

$22.69

17

SHIM P, RING GEAR (2.27)

41545-MT3-610

$22.69

17

SHIM Q, RING GEAR (2.30)

41546-MT3-610

$22.69

18

COLLAR B, RR. AXLE DISTANCE

42625-MCS-760

$31.02

19

BOLT, FLANGE (6X12) (CT200)

90013-883-000

$1.54

20

BOLT, PLUG (14MM)

90118-MCH-000

$6.78

21

BOLT, FLANGE (8X27)

90133-MB0-000

$8.11

22

BOLT, FLANGE (10X35)

90134-HA0-000

$7.88

23

NUT, HEX. (10MM)

90308-357-000

$4.85

24

NUT, HEX. (16MM)

90381-MT3-000

$7.95

25

BEARING, RADIAL BALL (65X100X11) (TOYO)

91051-MN5-003

$105.77

26

BEARING, RADIAL BALL (35X62X19)

91052-MCS-G01

$41.70

27

BEARING, RADIAL BALL (QJ3/28V1)

91061-MT3-003

$67.87

28

OIL SEAL (35X54X8) (NOK)

91261-MY3-003

$14.30

29

OIL SEAL (39X56X7) (NOK)

91262-MY3-003

$13.47

30

OIL SEAL (65X85X7) (NOK)

91265-MY3-003

$16.85

31

DUST SEAL (26X40X5)

91268-463-003

$6.61

32

O-RING (30.8MM)

91302-001-020

$3.75

33

O-RING (64.5X3.5) (ARAI)

91359-MG9-003

$4.53

34

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

35

WASHER, PLAIN (10MM)

94101-10000

$1.49

36

WASHER, DRAIN PLUG (14MM)

94109-14000

$1.49
