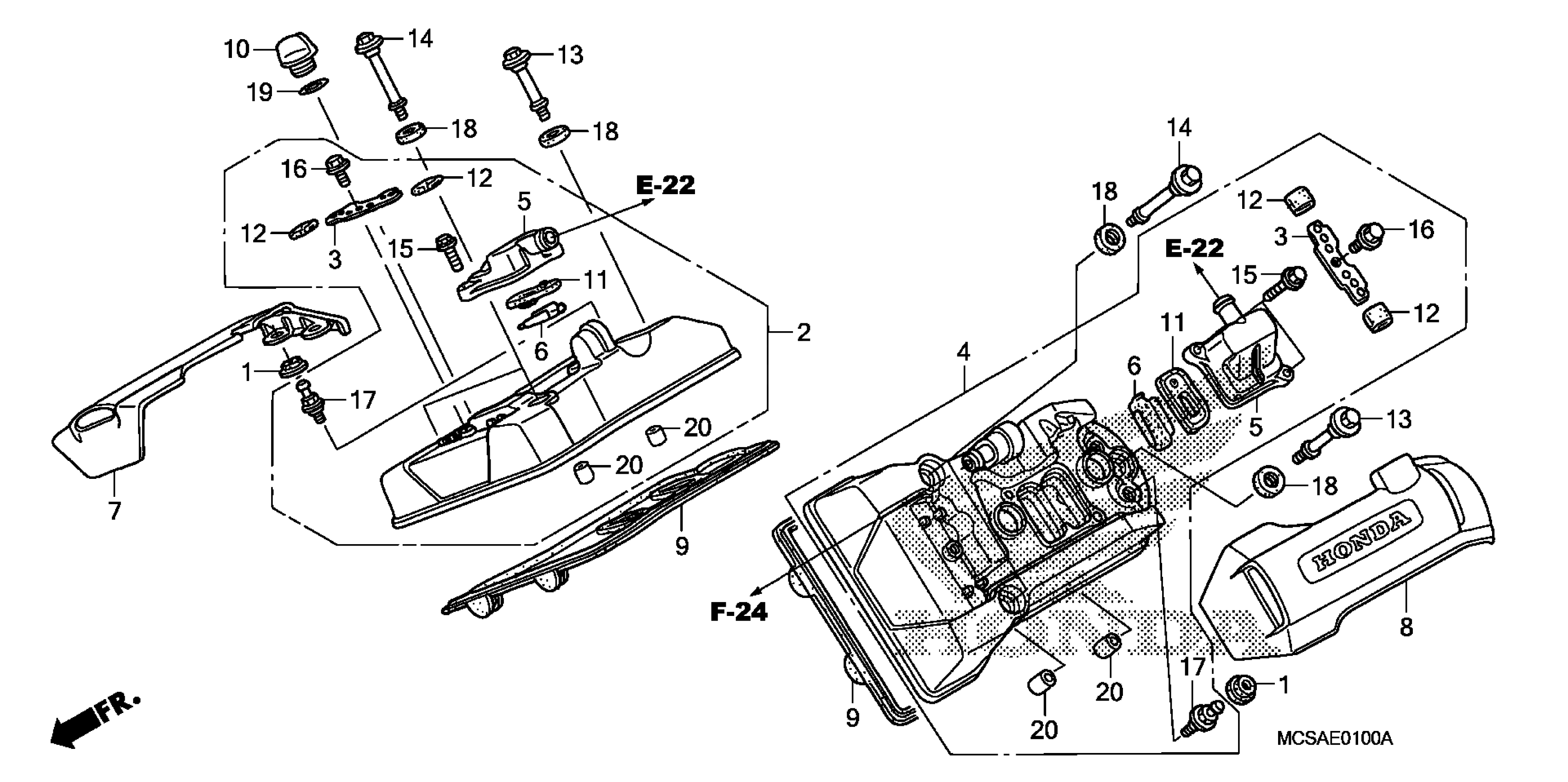

Honda ST1300A (10) MOTORCYCLE, JPN, VIN# JH2SC510-AK800001 CYLINDER HEAD COVER Diagram

#

Description
Price

1

GROMMET B, RR. COVER

11345-MB0-000

$4.06

2

COVER ASSY., R. CYLINDER HEAD

12310-MCS-000

$245.02

3

PLATE, SETTING

12313-MCS-000

$2.05

4

COVER, LH CLYN HEAD | Use up to Engine SN 2612995 This part replaces 12320-MCS-010.

12320-MCS-030

$366.52

4

COVER, LH CLYN HEAD This part replaces 12320-MCS-020.

12320-MCS-030

$366.52

5

COVER, REED VALVE

12331-MCS-000

$16.10

6

PLATE, PORT (AI)

12341-MAT-750

$13.98

7

COVER, R. OVER HEAD

12361-MCS-D80

$112.16

8

COVER, L. OVER HEAD

12371-MCS-D80

$101.66

9

GASKET, HEAD COVER

12391-MCS-000

$40.54

10

CAP, OIL FILLER

15611-MB0-000

$9.93

11

VALVE, REED

18601-MCH-003

$27.09

12

RUBBER B, BATTERY MOUNTING

31503-044-670

$2.56

13

BOLT, HEAD COVER

90017-MAL-600

$13.93

14

BOLT, HEAD COVER

90017-MCS-000

$4.30

15

BOLT, FLANGE (6X20)

90020-ZC3-000

$1.94

16

BOLT, FLANGE (6X10)

90083-657-000

$5.67

17

BOLT, SIDE SHELTER SETTING

90101-MN5-003

$12.97

18

RUBBER, MOUNTING

90543-MV9-670

$4.94

19

O-RING (21.5X3.2) This part replaces 91301-250-000.

91307-425-003

$2.59

19

O-RING (21.5X3.2)

91307-425-003

$2.59

20

PIN, DOWEL (8X14)

94301-08140

$2.25
