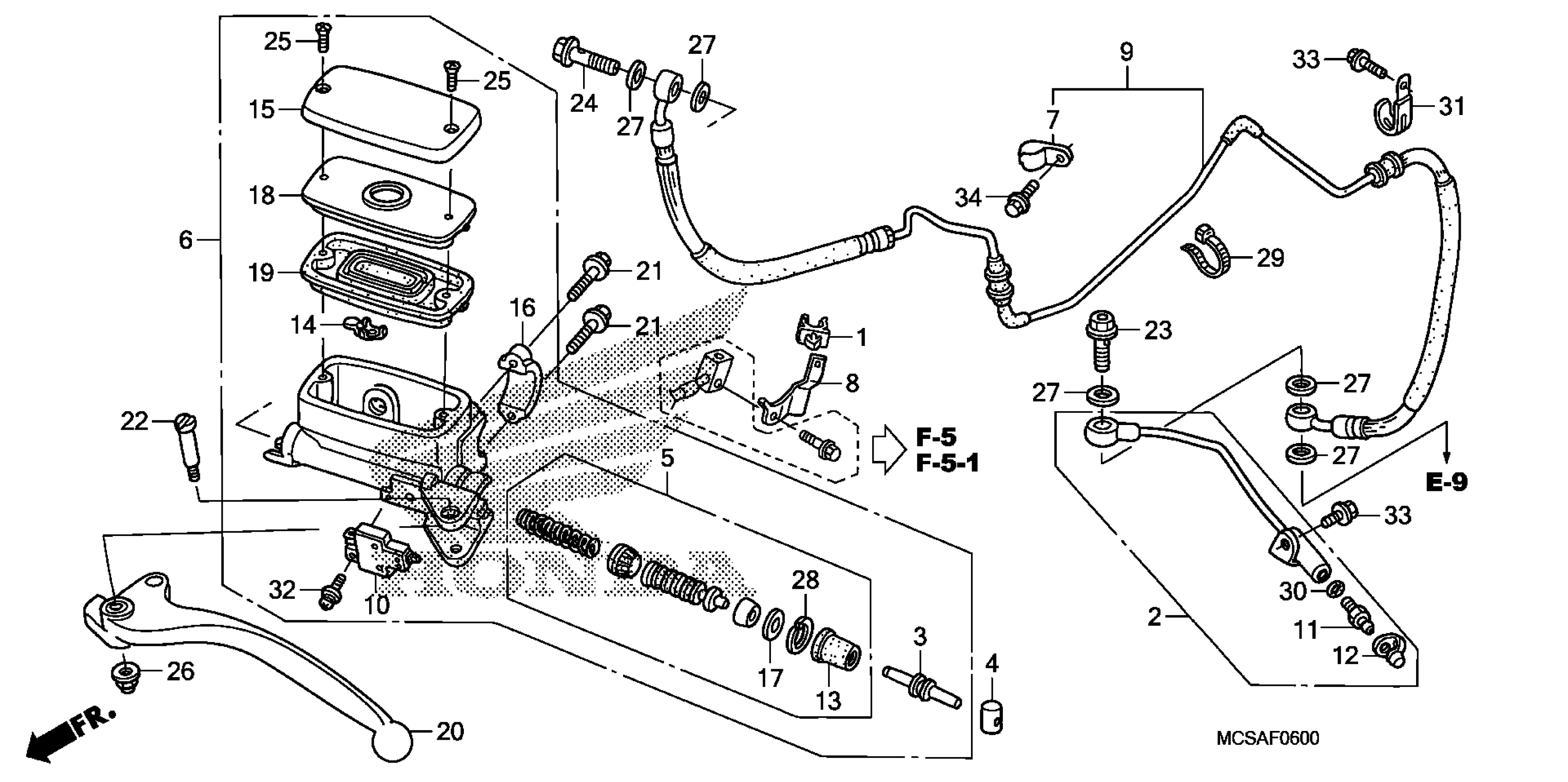

Honda ST1300A (10) MOTORCYCLE, JPN, VIN# JH2SC510-AK800001 CLUTCH MASTER CYLINDER Diagram

#

Description
Price

1

CLIP, THROTTLE WIRE

17938-SE0-941

$6.49

2

PIPE ASSY., BLEEDER

22865-MCS-G00

$57.67

3

ROD, PUSH

22884-MB0-006

$18.55

4

BUSH

22885-MB0-006

$11.63

5

PISTON SET, MASTER

22886-MCS-G01

$56.99

6

MASTER CYLINDER SUB-ASSY., CLUTCH (COO)

22890-MCS-305

$358.35

7

CLAMP A, CLUTCH PIPE

22891-MCS-G00

$3.68

8

CLAMP C, CLUTCH PIPE

22893-MCS-G01

$9.62

9

PIPE, CLUTCH

22900-MCS-D91

$195.13

10

SWITCH ASSY., CLUTCH

35330-MB0-003

$16.34

11

SCREW, BLEEDER

43352-MG9-006

$4.96

12

CAP, BLEEDER This part replaces 43353-MG9-006.

43353-461-771

$4.70

12

CAP, BLEEDER This part replaces 43353-443-761.

43353-461-771

$4.70

12

CAP, BLEEDER

43353-461-771

$4.70

13

BOOT

45504-410-003

$10.93

14

PROTECTOR

45512-MA6-006

$3.99

15

CAP, MASTER CYLINDER (NISSIN)

45513-MR1-016

$27.48

16

HOLDER, MASTER CYLINDER

45517-MCS-761

$10.39

17

PLATE, STOPPER

45518-MB0-006

$1.77

18

PLATE, DIAPHRAGM

45518-MM5-006

$9.57

19

DIAPHRAGM

45520-MM5-006

$13.57

20

LEVER, L. HANDLE (COO)

53178-MCS-305

$26.81

21

BOLT, FLANGE (6X22) This part replaces 90010-GHB-660.

96001-06022-00

$1.13

21

BOLT, FLANGE (6X22)

96001-06022-00

$1.13

22

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$8.46

23

BOLT, OIL (10X34)

90145-MR8-014

$6.62

24

BOLT, OIL (10X22)

90145-MS9-612

$6.82

25

SCREW, FLAT

90158-MT7-000

$1.96

26

NUT, CAP (6MM)

90201-415-000

$1.96

27

WASHER, OIL BOLT

90545-300-000

$3.72

28

CIRCLIP (INNER) (18MM)

90651-377-003

$1.77

29

BAND, WIRE (BLACK)

90652-KT1-771

$4.16

30

O-RING

91355-MG9-006

Unavailable

31

CLIP, CORD

91405-943-000

$3.08

32

SCREW-WASHER (4X12)

93893-04012-07

$1.22

32

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

33

BOLT, FLANGE (6X10)

96001-06010-00

$1.48

34

BOLT, FLANGE (6X16)

96001-06016-00

$0.96
