Description

Price

1

SPROCKET, WATER PUMP DRIVE (33T)

19230-MCS-000

$49.95

2

CLUTCH OUTER

22100-MCS-000

$369.97

3

COLLAR, CLUTCH (OUTER)

22116-MCS-700

$23.87

4

CENTER, CLUTCH

22120-MCS-000

$119.82

5

SEAT, JUDDER SPRING

22125-MAT-000

$12.10

6

DISK, CLUTCH FRICTION

22201-MCA-000

$18.04

7

DISK B, CLUTCH FRICTION

22202-MCS-000

$15.70

8

DISK A, CLUTCH FRICTION

22203-MCA-000

$18.93

9

PLATE A, CLUTCH

22321-MN5-000

$13.97

10

PLATE, CLUTCH PRESSURE

22350-MCH-000

$76.67

11

PIECE, CLUTCH JOINT

22366-MS2-611

$17.03

12

SPRING, CLUTCH

22401-MCS-000

$4.45

13

SPRING, JUDDER

22402-MAT-000

$24.22

14

ROD, CLUTCH LIFTER

22851-MCS-000

$27.98

15

GEAR ASSY., PRIMARY DRIVE (42T)

23100-MCS-000

$215.87

16

ROTOR, PULSER

30291-MCS-000

$15.11

17

BOLT, FLANGE (12X30)

90005-MN5-000

$8.41

18

BOLT-WASHER (6X35)

90022-MAT-E00

$4.87

19

NUT, LOCK (25MM)

90231-MS2-610

$18.78

20

WASHER (25.1X37X5)

90401-MBB-000

$3.97

21

WASHER, THRUST (28.2X56X2)

90401-MS2-610

$15.87

22

WASHER (12.5X36X6)

90402-MBB-000

$4.03

23

BEARING, RADIAL BALL (16003) This part replaces 91008-362-000.

91011-KK6-013

$15.40

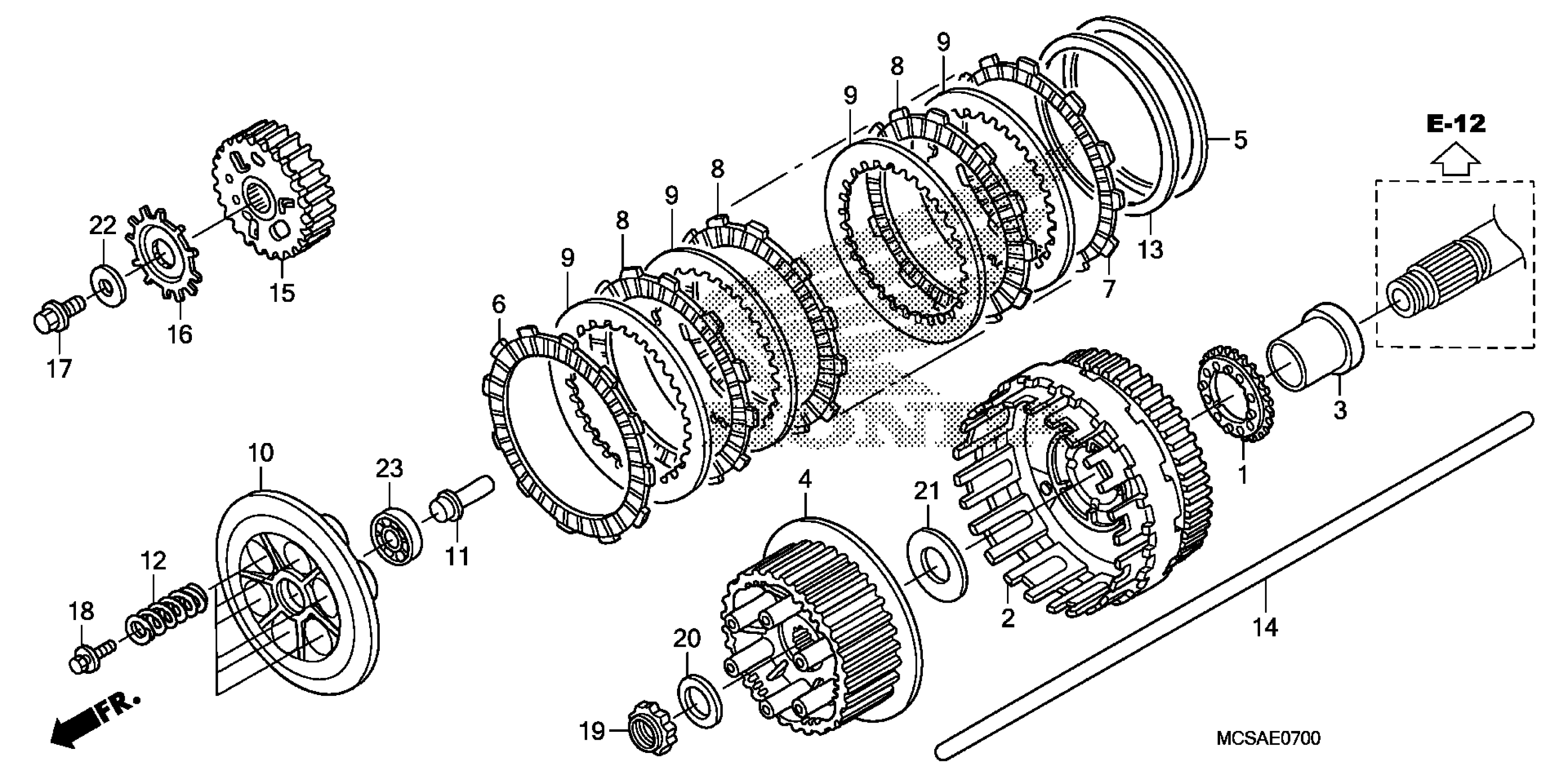

Honda ST1300A (10) MOTORCYCLE, JPN, VIN# JH2SC510-AK800001 CLUTCH Diagram
