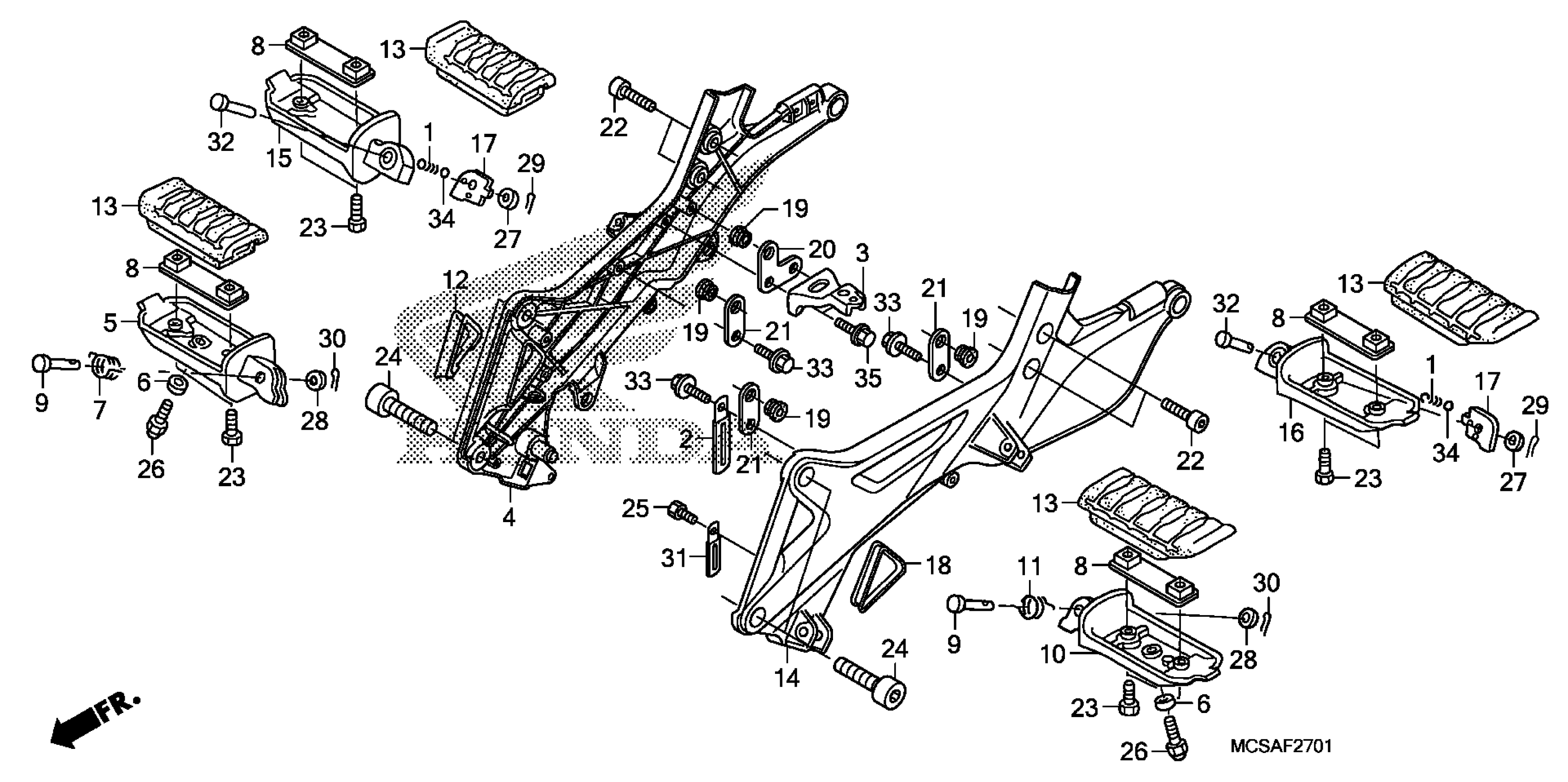

Honda ST1300A (09) MOTORCYCLE, JPN, VIN# JH2SC510-9K700001 TO JH2SC510-9K799999 STEP ('08-) Diagram

#

Description
Price

1

SPRING, KICK STARTER STOPPER

28333-300-000

$2.80

2

CLIP, PULSER WIRE

32925-958-000

$2.76

3

STAY, BATTERY

50325-MCS-G00

$9.78

4

HOLDER, R. MAIN STEP *NH146M* (ACCURATE SILVER METALLIC) | Candy glory red-u R101CU;

50600-MCS-D90ZA

$378.13

5

ARM, R. STEP (COO) This part replaces 50612-MT3-000.

50612-MT3-305

$41.44

5

ARM, R. STEP (COO)

50612-MT3-305

$41.44

6

COLLAR (5.0)

50613-MT3-000

$2.75

7

SPRING, R. STEP RETURN

50617-MM5-000

$4.58

8

PLATE, STEP SETTING

50619-MT3-000

$11.03

9

PIN, STEP BAR

50639-ML0-010

$4.84

10

ARM, L. STEP (COO) This part replaces 50642-MT3-000.

50642-MT3-305

$41.44

10

ARM, L. STEP (COO)

50642-MT3-305

$41.44

11

SPRING, L. STEP RETURN

50644-MM5-000

$4.58

12

COVER, R. STEP

50653-MCS-A30

$13.63

13

RUBBER, STEP (COO) This part replaces 50661-MT3-000.

50661-MT3-305

$6.91

13

RUBBER, STEP (COO)

50661-MT3-305

$6.91

14

HOLDER, L. MAIN STEP *NH146M* (ACCURATE SILVER METALLIC) | Candy glory red-u R101CU;

50700-MCS-D90ZA

$359.96

15

BAR, R. PILLION STEP (COO) This part replaces 50711-MT3-010.

50711-MT3-305

$54.18

15

BAR, R. PILLION STEP (COO)

50711-MT3-305

$54.18

16

BAR, L. PILLION STEP (COO) This part replaces 50712-MT3-010.

50712-MT3-305

$50.75

16

BAR, L. PILLION STEP (COO)

50712-MT3-305

$50.75

17

PLATE, PILLION STEP CLICK

50718-MT3-000

$4.29

18

COVER, L. STEP

50753-MCS-A30

$13.63

19

RUBBER, AIR DUCT COVER SETTING

64586-MBW-D20

$2.93

20

STAY A, COVER (LOWER)

83470-MCS-D90

$3.88

21

STAY B, COVER (LOWER)

83471-MCS-D90

$3.03

22

BOLT, SOCKET (10X23)

90105-KAF-000

$7.15

23

BOLT, MAIN STEP RUBBER SETTING

90115-MT3-000

$2.50

24

BOLT, SOCKET (12X34)

90127-MCS-G00

$4.29

25

BOLT, HEX. (4X10)

92101-04010-0A

$0.65

26

BOLT, CAP (8X16)

92501-08016-0A

$2.41

27

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

27

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

27

WASHER, PLAIN (6MM)

94101-06800

Unavailable

28

WASHER, PLAIN (8MM)

94101-08000

Unavailable

29

PIN, SPLIT (1.6X12)

94201-16120

$1.04

30

PIN, SPLIT (2.0X15)

94201-20150

$1.04

31

CLIP (2X50)

94591-25000

$2.13

32

PIN C, PILLION STEP

95015-83000

$2.22

33

BOLT, FLANGE (6X14)

95701-06014-07

$1.34

34

BALL, STEEL (#8) (1/4)

96211-08000

Unavailable

35

BOLT, FLANGE (6X16)

96300-06016-00

Unavailable
