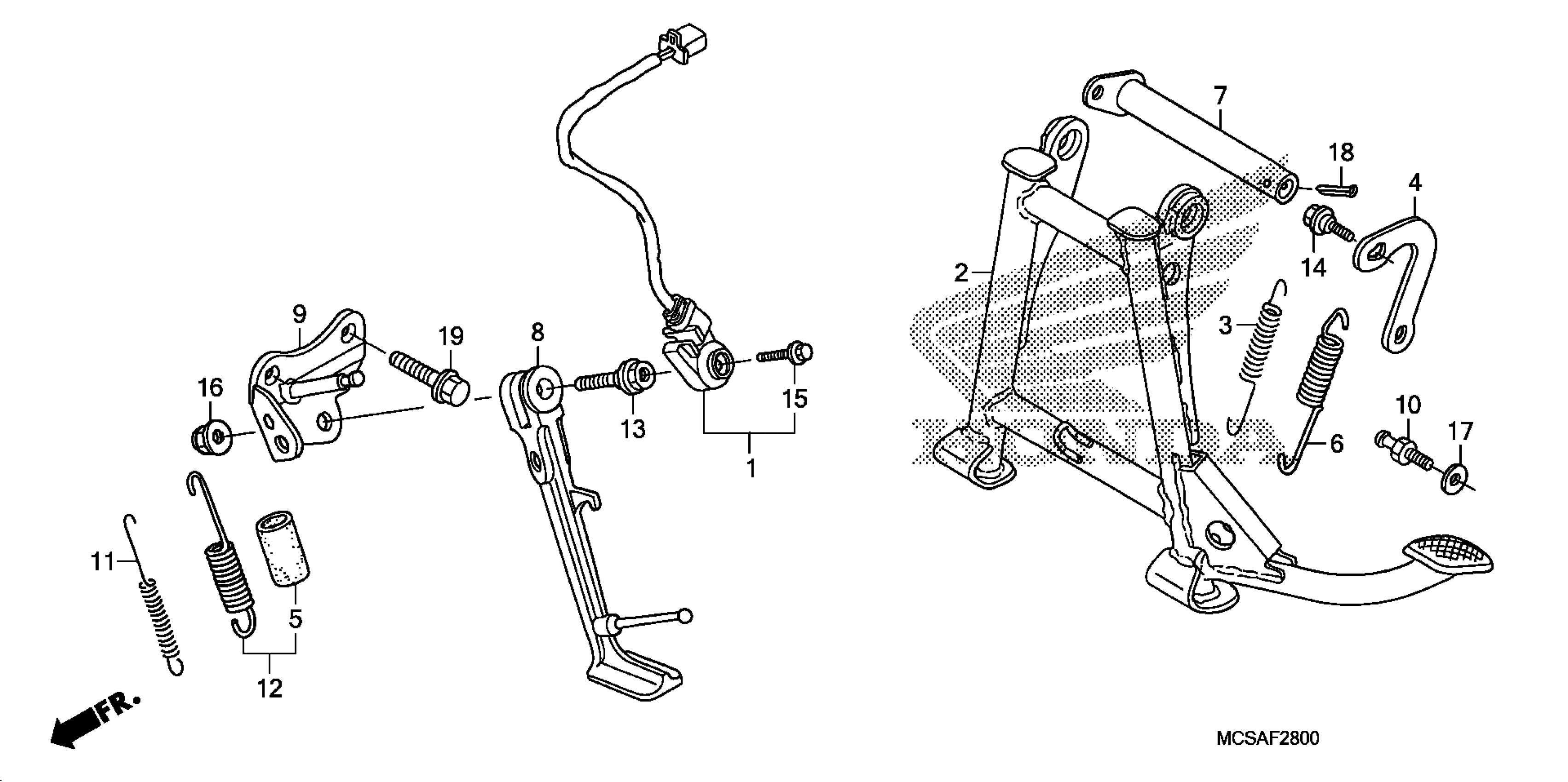

Honda ST1300A (07) MOTORCYCLE, JPN, VIN# JH2SC510-7M500001 TO JH2SC510-7M599999 STAND Diagram

SWITCH SET, SIDE STAND

35070-MCS-G00

Unavailable

STAND, MAIN (COO) This part replaces 50500-MCS-G01.

50500-MCS-305

$147.21

STAND, MAIN (COO)

50500-MCS-305

$147.21

SPRING B, MAIN STAND

50520-MCA-000

$5.72

PLATE, MAIN STAND SPRING

50520-MCS-G00

$4.57

TUBE (19X23)

50523-MM4-000

$8.41

SPRING A, MAIN STAND

50525-MCA-000

$9.78

PIPE, MAIN STAND PIVOT

50526-MCS-G01

$17.43

BAR, SIDE STAND (COO) This part replaces 50530-MCS-G00.

50530-MCS-305

$90.13

BAR, SIDE STAND (COO)

50530-MCS-305

$90.13

BRACKET, SIDE STAND

50535-MCS-G00

$27.13

HOOK, MAIN STAND SPRING

50538-ML7-000

$7.90

SPRING, SIDE STAND SUB

50542-MZ1-610

$9.77

SPRING ASSY., SIDE STAND

50543-MZ1-610

$10.39

BOLT, SIDE STAND PIVOT

90108-MK6-670

$7.78

BOLT, MAIN STAND PIVOT (6X15)

90120-MCS-G00

$2.74

BOLT, SPECIAL (6X16)

90147-MCE-950

$1.49

NUT, SIDE STAND

90203-MF9-710

$3.67

WASHER, PLAIN (8MM)

94101-08700

$1.49

PIN, SPLIT (2.5X28)

94201-25280

$1.49

BOLT, FLANGE (10X30)

95701-10030-07

$1.49
