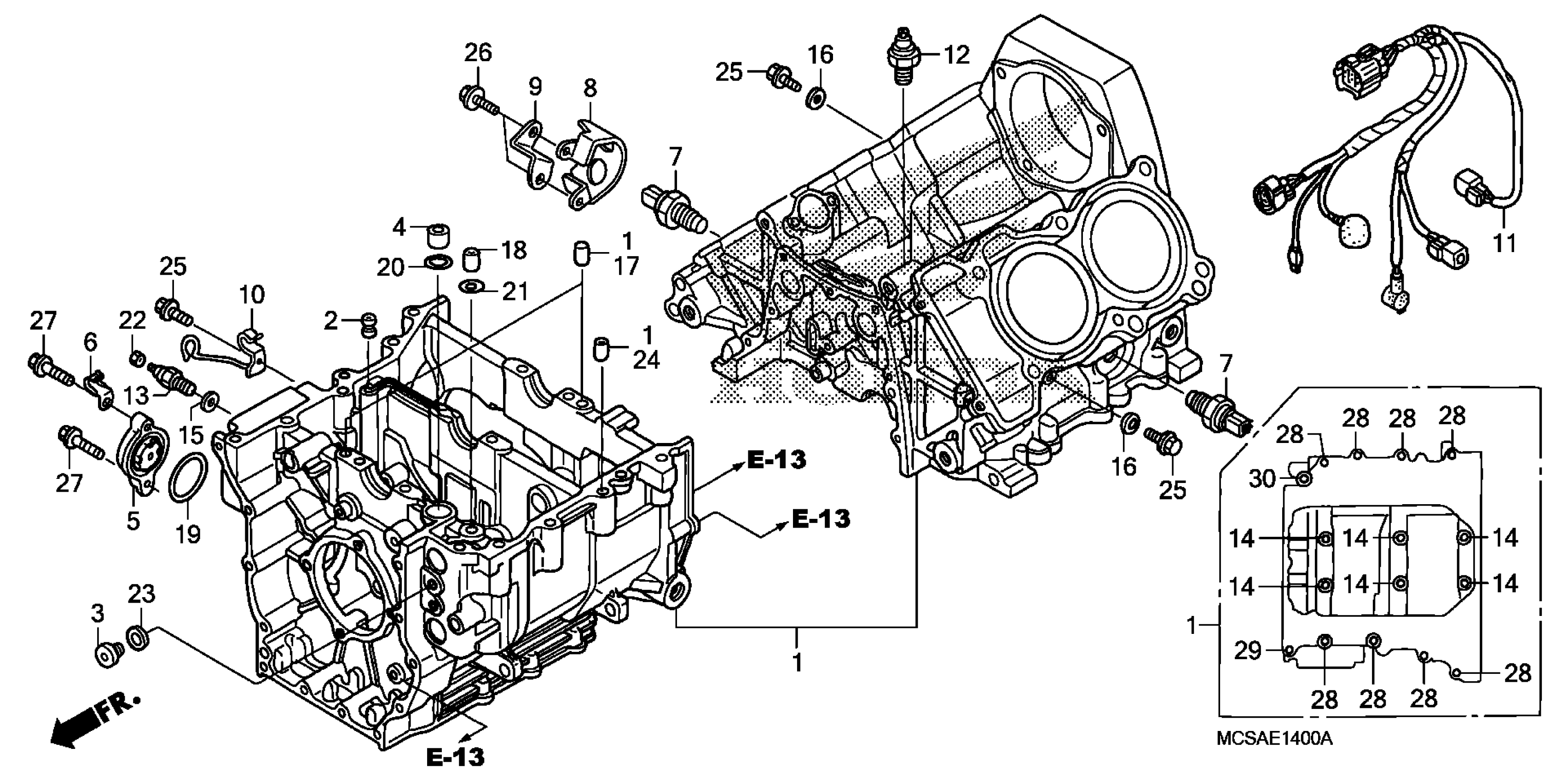

Honda ST1300A (07) MOTORCYCLE, JPN, VIN# JH2SC510-7M500001 TO JH2SC510-7M599999 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11000-MCS-010

$3,096.31

2

ORIFICE A (1.6MM)

11205-MCS-000

$3.51

3

BOLT, SEALING (14MM)

12206-MBW-000

$6.02

4

COLLAR (16X18X10)

15326-KBV-000

$4.44

5

FINDER, OIL LEVEL

15660-MCS-000

$28.44

6

CLIP B, TUBE

16106-KW7-900

$2.92

7

SENSOR ASSY., KNOCK

30530-MCS-004

$128.89

8

GUARD, SENSOR

30533-MCS-010

$10.25

9

PLATE, SENSOR GUARD

30534-MCS-000

$4.39

10

GUIDE, KNOCK SENSOR WIRE

30535-MCS-000

$12.34

11

SUB-WIRE, ENGINE

32109-MCS-700

$72.52

12

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$42.43

13

SWITCH ASSY., NEUTRAL

35600-MK4-860

$18.89

14

BOLT, FLANGE (10X87)

90001-MCS-000

$5.23

15

WASHER, NEUTRAL

90443-MJ6-000

$1.92

16

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

17

PIN, DOWEL (10X16)

90701-MV9-670

$4.30

18

PIN, DOWEL (10X10)

90702-MJ4-000

$3.26

19

O-RING (45X2.5) (ARAI)

91301-679-003

$5.22

20

O-RING (18X3) (ARAI)

91302-KE8-003

$2.61

21

O-RING (9.8X2.4)

91305-422-000

$2.47

22

NUT, FLANGE (4MM)

94050-04000

$1.49

23

WASHER, DRAIN PLUG (14MM)

94109-14000

$1.49

24

PIN, DOWEL (10X16)

94301-10160

$2.28

25

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

26

BOLT, FLANGE (6X18)

95701-06018-00

$1.62

27

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

28

BOLT, FLANGE (8X60)

95701-08060-00

$1.49

29

BOLT, FLANGE (8X80)

95701-08080-00

$1.64

30

BOLT, FLANGE (8X120)

95701-08120-00

$2.85
