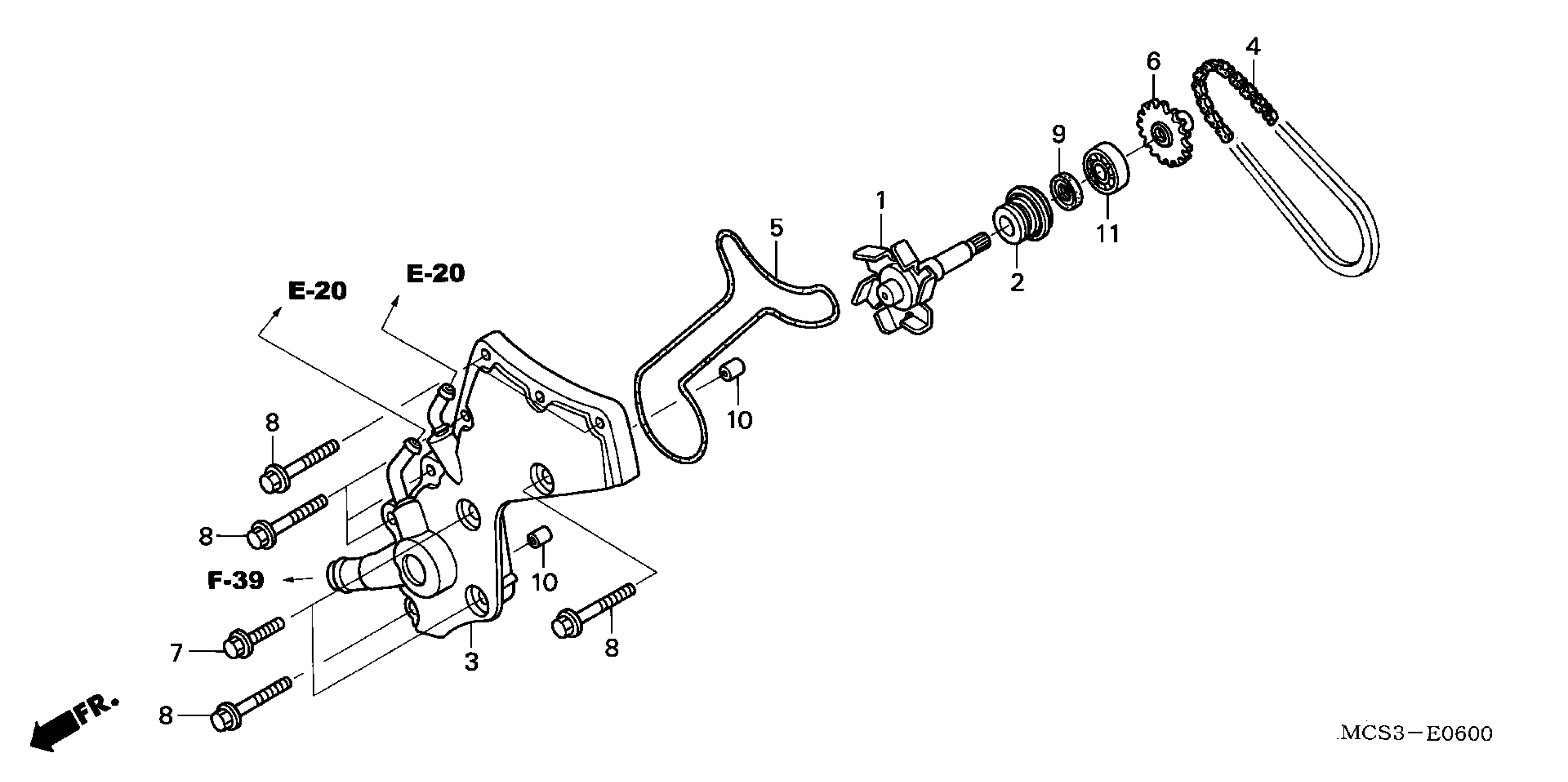

Honda ST1300A (06) ST1300, JPN, VIN# JH2SC510-6M400001 WATER PUMP Diagram

#

Description

Price

1

IMPELLER, WATER PUMP

19210-MCS-000

$57.60

2

SEAL, MECHANICAL

19217-MAL-300

$53.03

3

COVER, WATER PUMP

19220-MCS-010

Unavailable

4

CHAIN, WATER PUMP DRIVE (70L)

19225-MCS-003

$30.56

5

GASKET, WATER PUMP

19226-MCS-A10

$18.48

6

SPROCKET, WATER PUMP DRIVEN (20T)

19240-MCS-000

$71.21

7

BOLT, FLANGE (6X28) (NSHF)

90004-GHB-680

$3.33

8

BOLT, FLANGE (6X40) (NSHF)

90004-GHB-710

$4.07

9

OIL SEAL (12X22X5) This part replaces 91201-148-003.

91201-965-000

$4.06

9

OIL SEAL (12X22X5)

91201-965-000

$4.06

10

PIN, DOWEL (8X14)

94301-08140

$2.25

11

BEARING, RADIAL BALL (6200)

96100-62003-00

$12.72
