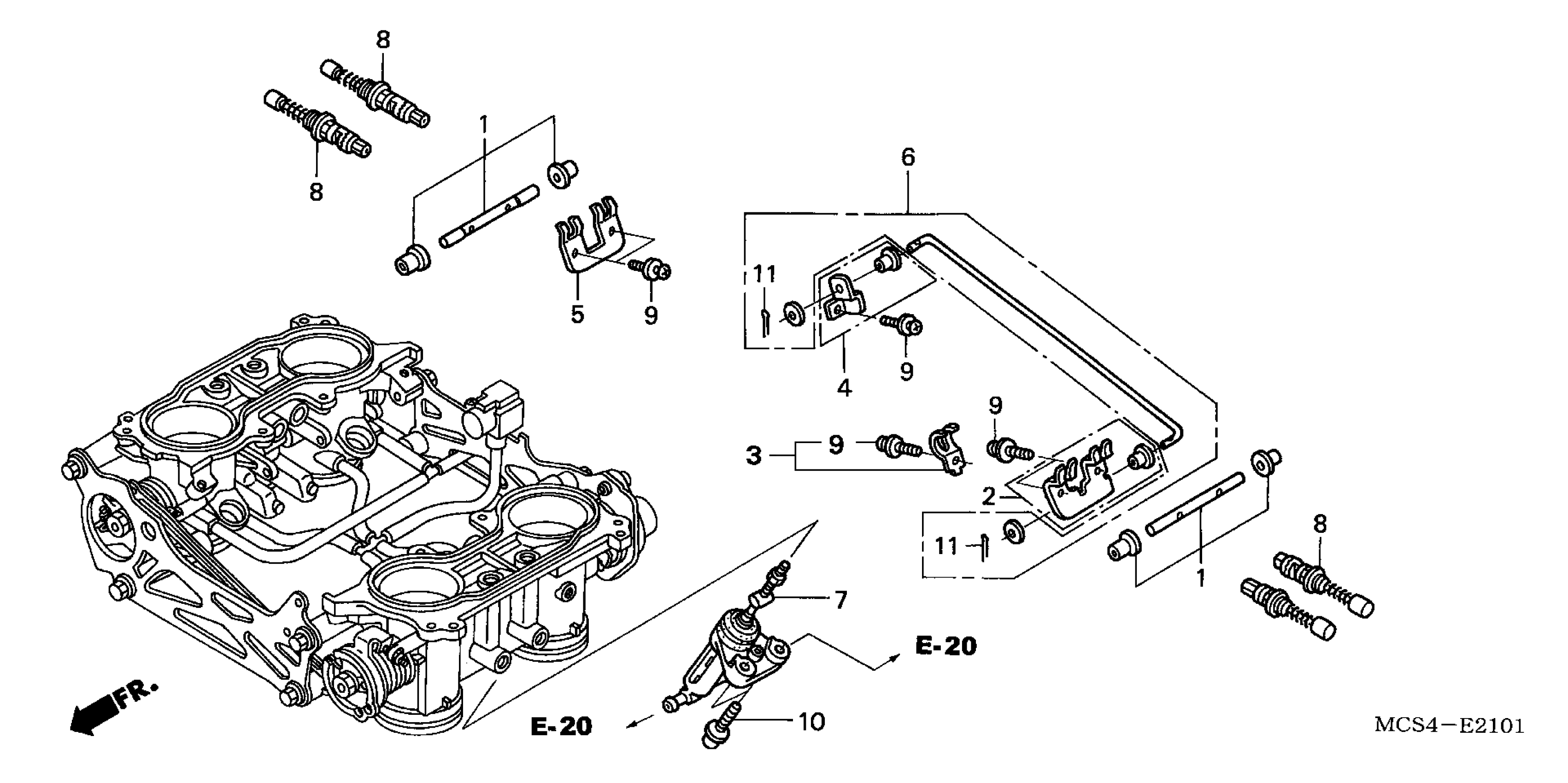

Honda ST1300A (06) ST1300, JPN, VIN# JH2SC510-6M400001 THROTTLE BODY (COMP.) Diagram

SHAFT SET, STARTER

16017-MCW-003

$19.53

LEVER A, STARTER

16018-MCW-003

$24.94

LEVER SET B, STARTER

16019-MCJ-003

$3.56

LEVER B, STARTER

16019-MCW-003

$14.76

LEVER C, STARTER

16020-MCW-003

$13.72

ROD SET, STARTER

16025-MCS-003

$11.62

WAX ASSY.

16044-MCW-003

$67.40

VALVE SET A, STARTER

16046-MCW-003

$41.84

SCREW-WASHER (3X8)

93892-03008-10

$0.90

SCREW-WASHER (6X20)

93892-06020-00

Unavailable

SCREW-WASHER (6X20) This part replaces 93892-06020-10.

93892-06020-00

Unavailable

PIN, SPLIT (1.2)

94201-12081

$0.60
