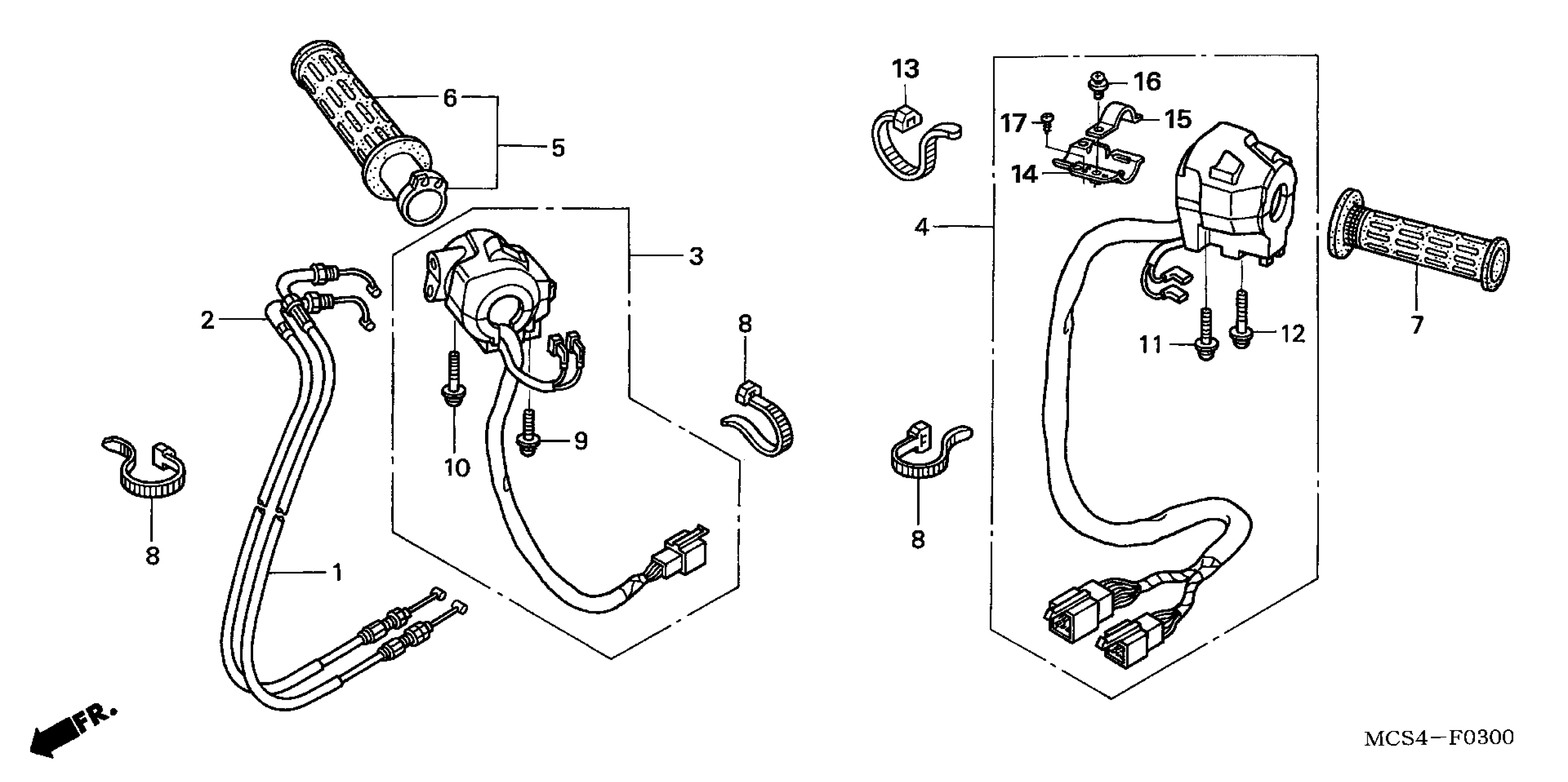

Honda ST1300A (06) ST1300, JPN, VIN# JH2SC510-6M400001 SWITCH + CABLE Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-MCS-G00

Unavailable

2

CABLE B, THROTTLE

17920-MCS-G00

Unavailable

3

SWITCH SET, STARTER STOP This part replaces 35013-MCS-L01.

35013-MCS-L02

$99.72

3

SWITCH SET, STARTER STOP

35013-MCS-L02

$99.72

4

SWITCH SET, TURN SIGNAL

35020-MCS-L03

$120.57

5

GRIP ASSY., THROTTLE (COO) This part replaces 53140-MT3-000.

53140-MT3-305

$19.87

5

GRIP ASSY., THROTTLE (COO)

53140-MT3-305

$19.87

6

GRIP, R. HANDLE

53165-422-000

$14.33

7

GRIP, L. HANDLE (COO) This part replaces 53166-422-000.

53166-422-305

$11.86

7

GRIP, L. HANDLE (COO)

53166-422-305

$11.86

8

BAND, WIRE (95MM)

90650-KV6-003

$2.90

9

SCREW-WASHER (5X20)

93892-05020-07

$0.78

10

SCREW-WASHER (5X25)

93892-05025-07

$0.99

11

SCREW-WASHER (5X20)

93892-05020-07

$0.78

12

SCREW-WASHER (5X40) (NOT AVAILABLE)

93892-05040-07

Unavailable

13

BAND, WIRE (BLACK)

90652-KT1-771

$4.16

14

PLATE A, SETTING

35202-MCS-G01

$3.38

15

PLATE B, SETTING

35203-MCS-G01

$3.90

16

SCREW-WASHER (5X10)

93892-05010-08

$1.04

17

SCREW, TAPPING (3X8)

93901-32120

$0.75
