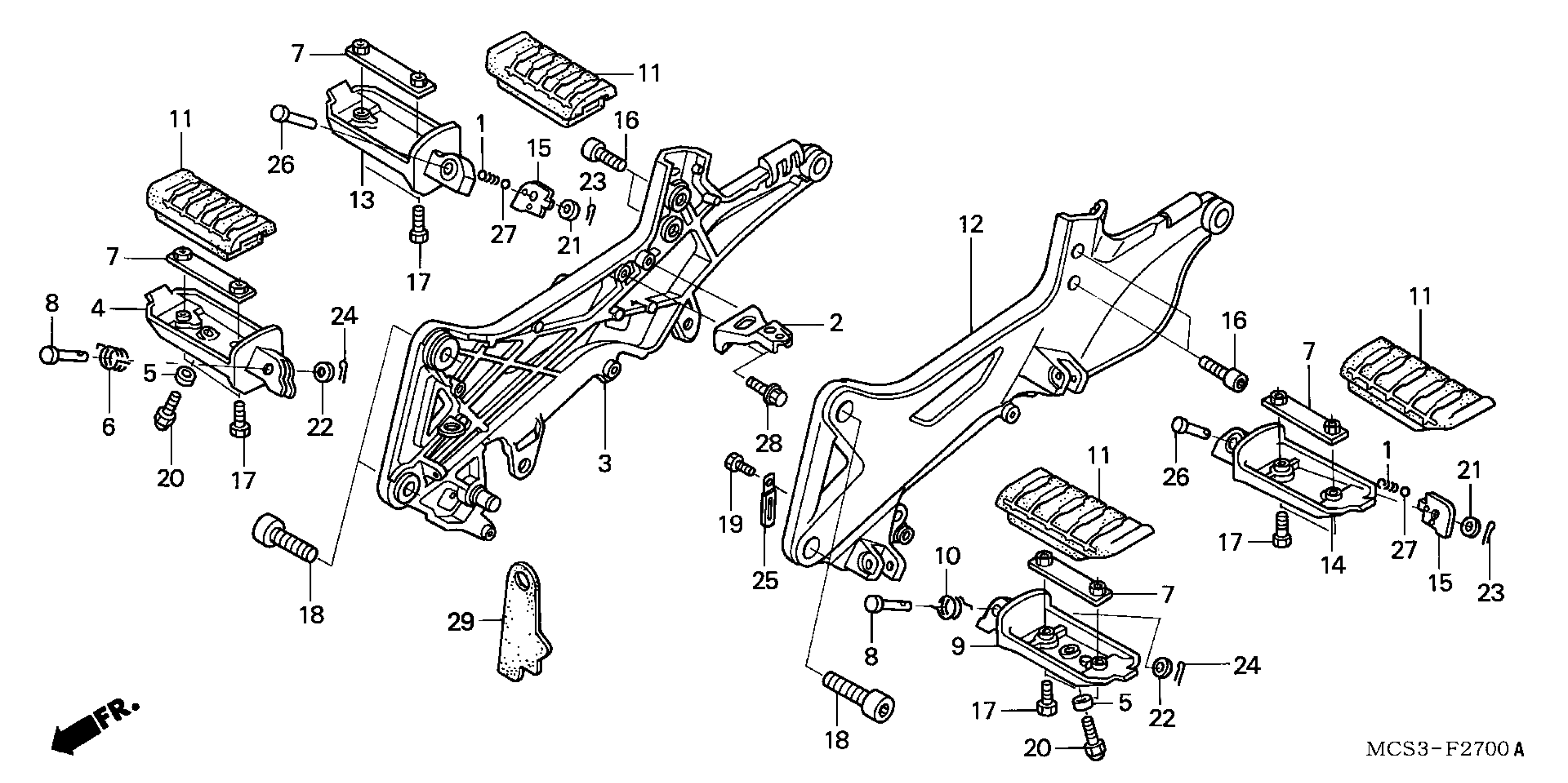

Honda ST1300A (06) ST1300, JPN, VIN# JH2SC510-6M400001 STEP Diagram

#

Description
Price

1

SPRING, KICK STARTER STOPPER

28333-300-000

$2.92

2

STAY, BATTERY

50325-MCS-G00

$10.59

3

HOLDER, R. MAIN STEP *NH146M* (ACCURATE SILVER METALLIC)

50600-MCS-D90ZA

$409.25

3

HOLDER, R. MAIN STEP *NH146M* (ACCURATE SILVER METALLIC) This part replaces 50600-MCS-G01ZA.

50600-MCS-D90ZA

$409.25

4

ARM, R. STEP (COO) This part replaces 50612-MT3-000.

50612-MT3-305

$44.85

4

ARM, R. STEP (COO)

50612-MT3-305

$44.85

5

COLLAR (5.0)

50613-MT3-000

$2.98

6

SPRING, R. STEP RETURN

50617-MM5-000

$4.78

7

PLATE, STEP SETTING

50619-MT3-000

$11.93

8

PIN, STEP BAR

50639-ML0-010

$5.22

9

ARM, L. STEP (COO) This part replaces 50642-MT3-000.

50642-MT3-305

$44.85

9

ARM, L. STEP (COO)

50642-MT3-305

$44.85

10

SPRING, L. STEP RETURN

50644-MM5-000

$4.78

11

RUBBER, STEP (COO) This part replaces 50661-MT3-000.

50661-MT3-305

$6.81

11

RUBBER, STEP (COO)

50661-MT3-305

$6.81

12

HOLDER, L. MAIN STEP *NH146M* (ACCURATE SILVER METALLIC)

50700-MCS-D90ZA

$389.61

12

HOLDER, L. MAIN STEP *NH146M* (ACCURATE SILVER METALLIC) This part replaces 50700-MCS-G00ZA.

50700-MCS-D90ZA

$389.61

13

BAR, R. PILLION STEP (COO) This part replaces 50711-MT3-010.

50711-MT3-305

$58.64

13

BAR, R. PILLION STEP (COO)

50711-MT3-305

$58.64

14

BAR, L. PILLION STEP (COO) This part replaces 50712-MT3-010.

50712-MT3-305

$58.64

14

BAR, L. PILLION STEP (COO)

50712-MT3-305

$58.64

15

PLATE, PILLION STEP CLICK

50718-MT3-000

$4.64

16

BOLT, SOCKET (10X23)

90105-KAF-000

$7.74

17

BOLT, MAIN STEP RUBBER SETTING

90115-MT3-000

$2.70

18

BOLT, SOCKET (12X34)

90127-MCS-G00

$4.66

19

BOLT, HEX. (4X10)

92101-04010-0A

$1.49

20

BOLT, CAP (8X16)

92501-08016-0A

$2.61

21

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

21

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

21

WASHER, PLAIN (6MM)

94101-06800

$1.49

22

WASHER, PLAIN (8MM)

94101-08000

$1.49

23

PIN, SPLIT (1.6X12)

94201-16120

$1.49

24

PIN, SPLIT (2.0X15)

94201-20150

$1.49

25

CLIP (2X50)

94591-25000

$2.31

26

PIN C, PILLION STEP

95015-83000

$2.41

27

BALL, STEEL (#8) (1/4)

96211-08000

$1.49

28

BOLT, FLANGE (6X16)

96300-06016-00

$1.49

29

RUBBER A, R. HEAT

64361-MCS-G00

Unavailable
