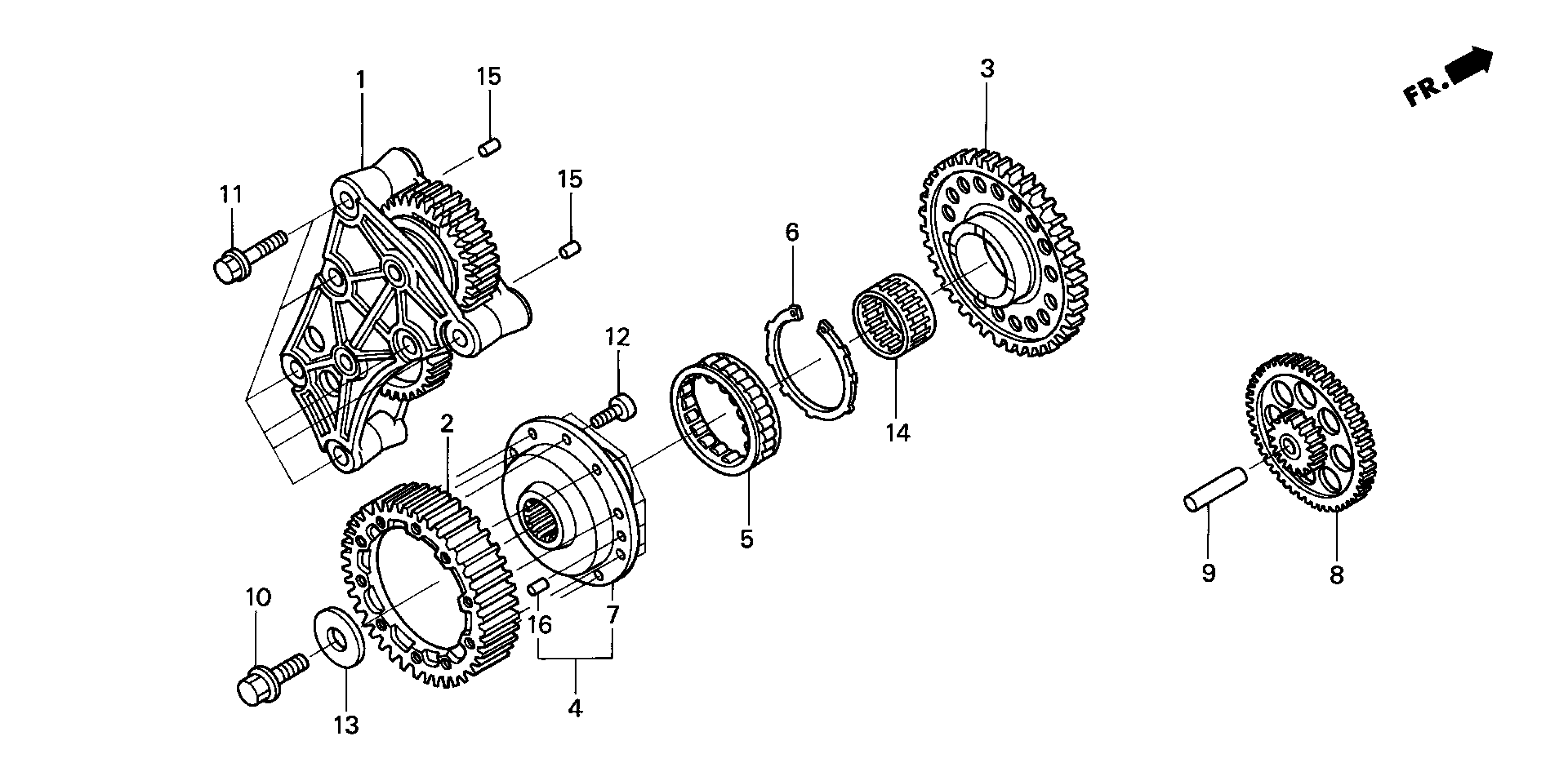

Honda ST1300A (06) ST1300, JPN, VIN# JH2SC510-6M400001 STARTING CLUTCH Diagram

GEAR TRAIN

13320-MCS-010

$704.72

GEAR, ALTERNATOR DRIVE (60T)

13321-MCS-000

$110.36

GEAR, STARTING DRIVEN (48T)

28110-MCS-000

$133.54

CLUTCH OUTER, STARTING

28120-MCS-000

$180.57

CLUTCH, ONE-WAY

28126-MN5-004

$69.93

RING, FRICTION

28127-MN5-004

$5.18

CLUTCH OUTER, STARTING

28128-MCS-000

$202.74

GEAR, STARTER REDUCTION (15T/91T)

28130-MCS-010

$103.03

SHAFT, REDUCTION GEAR

28132-KN6-930

$10.92

BOLT, FLANGE (12X30)

90005-MN5-000

$8.41

BOLT A, ENGINE MOUNT BRACKET (10X60)

90008-PR3-000

$9.38

BOLT, TORX (6MM)

90085-MCS-000

$2.39

WASHER (12.5X36X6)

90402-MBB-000

$4.03

BEARING, NEEDLE (36X41X18.3)

91027-MCS-003

$11.85

PIN B, DOWEL (8X10)

94302-08100

$2.14

PIN, DOWEL (5X8)

94303-05080

$2.14
