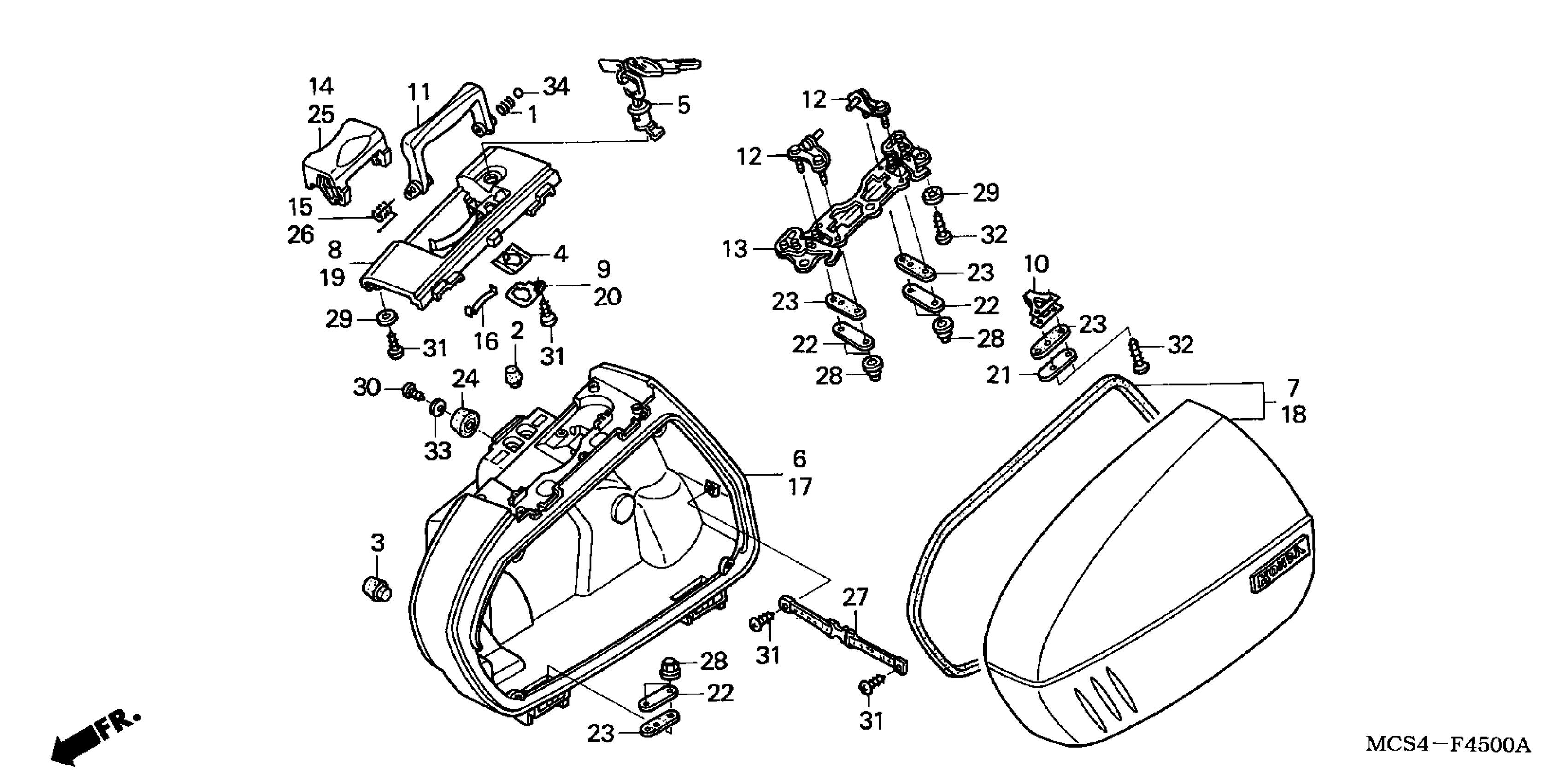

Honda ST1300A (06) ST1300, JPN, VIN# JH2SC510-6M400001 SADDLEBAG Diagram

SPRING, CLUTCH SUB-FREE (AS)

22431-121-880

$1.16

RUBBER A, STOPPER

50352-428-000

$2.66

RUBBER C, STOPPER

50355-434-000

$4.24

SPRING, LOCK KEY SETTING

75581-MAT-D00

$4.24

LOCK ASSY., SADDLEBAG LEVER

77227-MCS-G00

$26.63

BODY, R. SADDLEBAG *2TN266* (BLACK/MAT BLACK)

81201-MCS-G01ZB

$651.13

COVER, R. SADDLEBAG *NHB01* (GRAPHITE BLACK)

81205-MCS-770ZF

$551.66

COVER, R. SADDLEBAG LOCK *2TN266* (BLACK/MAT BLACK)

81207-MCS-G01ZB

$18.15

LOCK PLATE, R. SADDLEBAG KEY

81208-MCS-G00

$3.21

PLATE, SADDLEBAG COVER LOCK

81220-MCS-G00

$2.81

GRIP, SADDLEBAG *NH1* (BLACK)

81235-MCS-G00ZA

$13.24

BRACKET B, SADDLEBAG COVER LOCK

81255-MCS-G00

$5.97

LOCK, SADDLEBAG COVER

81260-MCS-G00

$42.97

LEVER, R. SADDLEBAG COVER LOCK *NH1* (BLACK)

81270-MCS-G00ZA

$10.38

SPRING, R. SADDLEBAG LEVER

81274-MCS-G00

$1.50

SPRING, SADDLEBAG KEY GUARD

81275-MCS-G00

$2.81

BODY, L. SADDLEBAG *2TN266* (BLACK/MAT BLACK)

81301-MCS-G01ZB

$680.40

COVER, L. SADDLEBAG *NHB01* (GRAPHITE BLACK)

81305-MCS-770ZF

$551.66

COVER, L. SADDLEBAG LOCK *2TN266* (BLACK/MAT BLACK)

81307-MCS-G01ZB

$18.96

LOCK PLATE, L. SADDLEBAG KEY

81308-MCS-G00

$3.37

PLATE, HINGE SETTING

81318-MCS-G00

$1.50

PLATE, HINGE SETTING

81318-MT3-000

$2.63

RUBBER, PLATE

81319-MCS-G00

$1.24

CUSHION, SADDLEBAG

81327-MT3-000

$4.29

LEVER, L. SADDLEBAG COVER LOCK *NH1* (BLACK)

81370-MCS-G00ZA

$12.40

SPRING, L. SADDLEBAG LEVER

81374-MCS-G00

$2.32

STOPPER, SADDLEBAG COVER

81380-MCS-G00

$23.87

NUT, MOLDING SIDE

90305-SJ4-003

$3.97

WASHER, THRUST (5MM)

90504-964-000

$1.75

SCREW, TAPPING (4X6)

93903-24080

$0.63

SCREW, TAPPING (4X12)

93903-24380

Unavailable

SCREW, TAPPING (4X25)

93903-44680

$0.32

WASHER, PLAIN (4MM)

94103-04700

$0.87

BALL, STEEL (#7) (7/32)

96211-07000

$1.18
