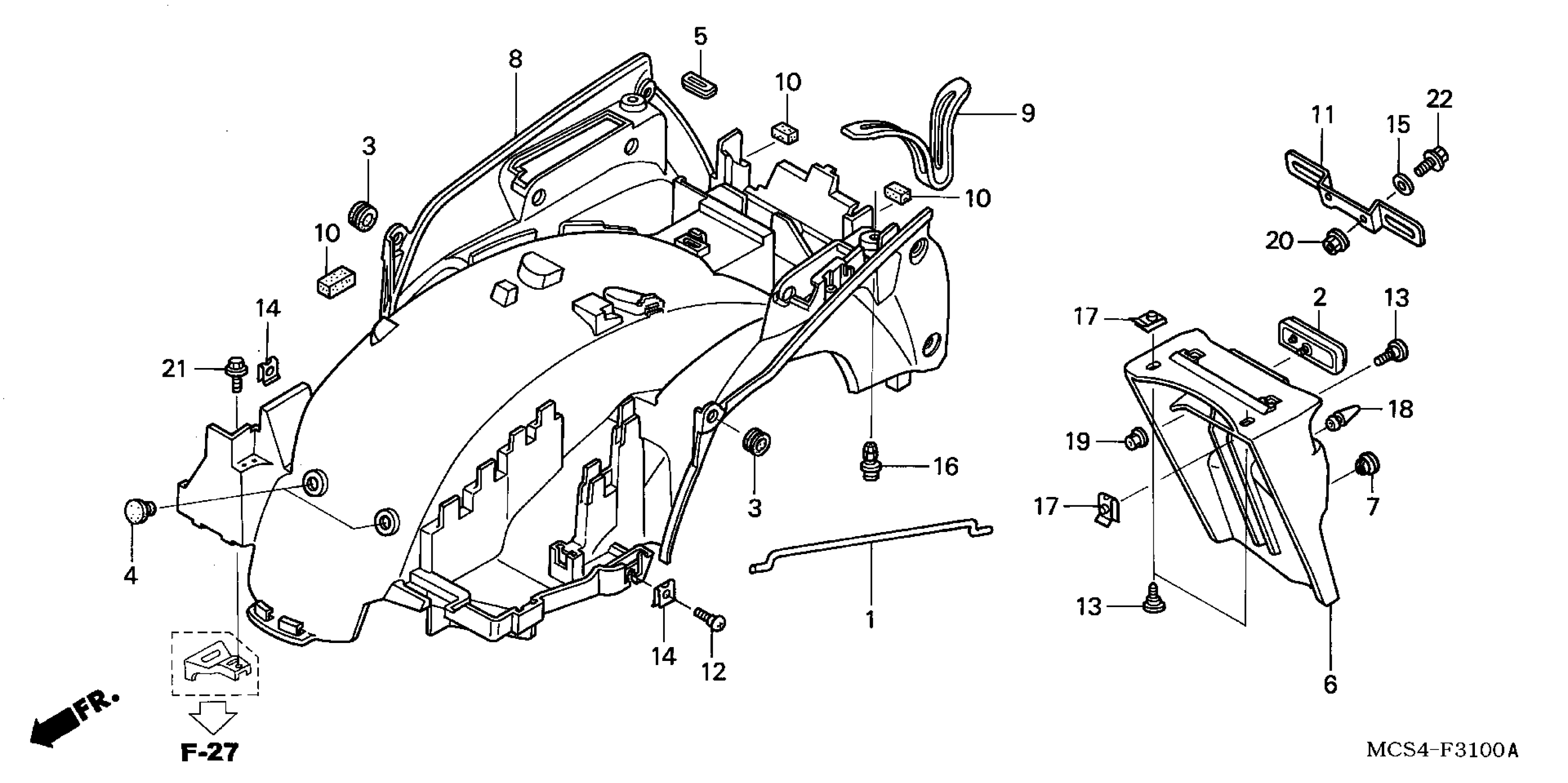

Honda ST1300A (06) ST1300, JPN, VIN# JH2SC510-6M400001 REAR FENDER Diagram

#

Description
Price

1

ROD, TANK OPEN

17891-MCJ-750

$14.87

2

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.93

3

GROMMET, TUBE

36130-ZA8-801

$2.60

4

PLUG, HOLE

50318-041-600

$2.11

5

GROMMET, TOOL TRAY

77309-KK6-000

$2.70

6

FENDER A, RR.

80100-MCS-770

$40.49

7

PLUG, RR. FENDER

80103-192-600

$4.02

8

FENDER B, RR.

80106-MCS-D90

$144.51

8

FENDER B, RR. This part replaces 80106-MCS-G00.

80106-MCS-D90

$144.51

9

BAND, UNIT

80109-MCS-G00

Unavailable

10

SEAL, RUBBER

83605-MCS-G00

$1.87

11

BRACKET, NUMBER PLATE

84700-MCS-770

$13.59

12

SCREW, SPECIAL (6MM)

90106-MBL-610

$2.23

13

SCREW, SPECIAL (5X12)

90106-MBY-000

$2.67

14

NUT, SPRING (6MM)

90320-747-000

$2.35

15

WASHER, CHAIN SLIDER

90556-KR3-000

$3.08

16

CLIP, SPLASH SHIELD

90657-SB0-003

$5.26

17

NUT, CLIP (5MM)

90677-KAN-961

$4.07

18

PLUG, CONE

90899-KL8-000

$3.26

19

NUT, FLANGE (5MM)

94050-05000

$1.49

20

NUT, FLANGE (6MM)

94050-06000

$1.49

21

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

22

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
