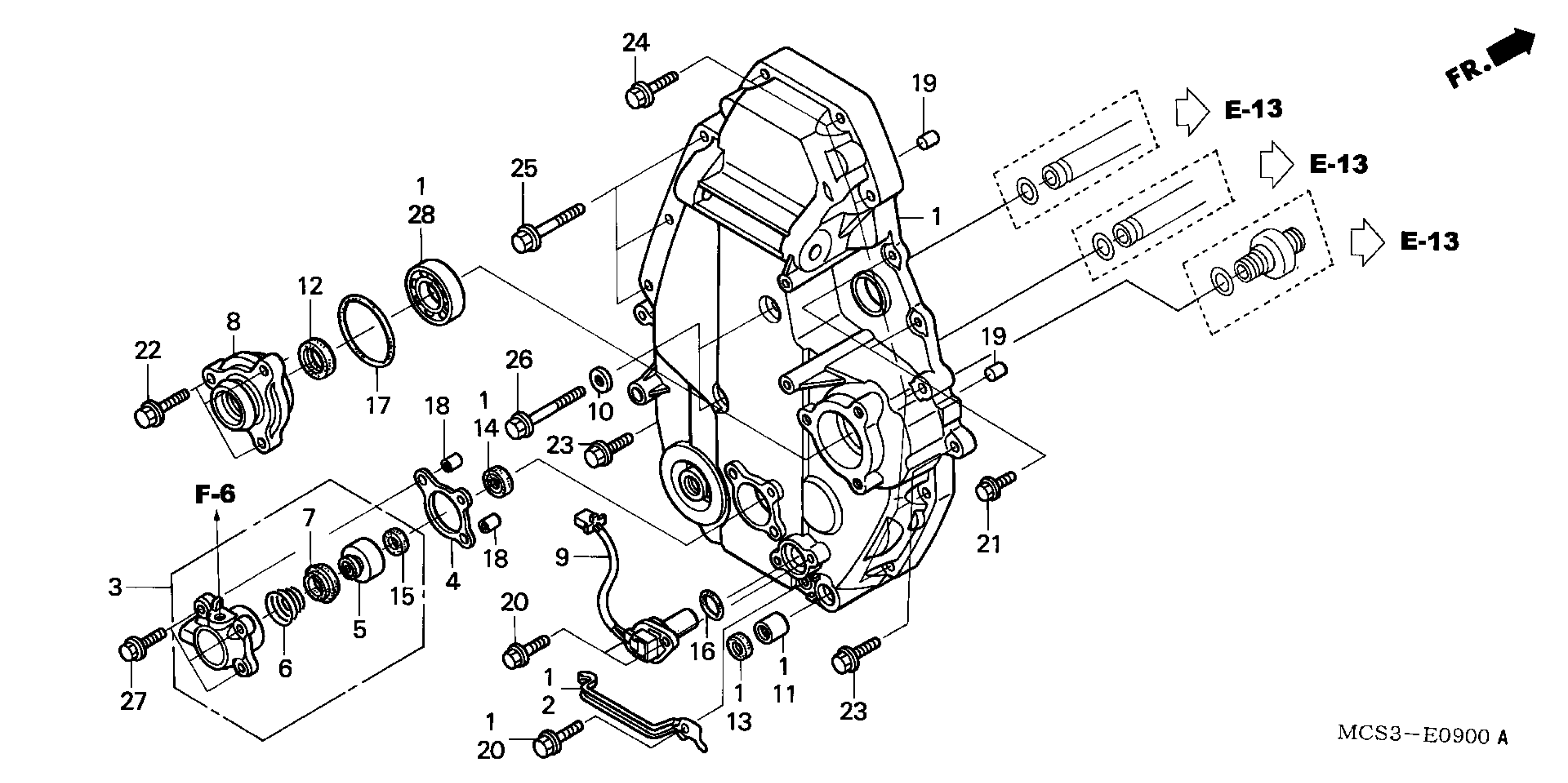

Honda ST1300A (06) ST1300, JPN, VIN# JH2SC510-6M400001 REAR CRANKCASE COVER Diagram

#

Description
Price

1

CASE, RR.

21110-MCS-010

$477.02

2

CLAMP B, DRAIN HOSE

21114-MCS-000

$6.18

3

CYLINDER ASSY., CLUTCH SLAVE

22860-MCS-000

$94.55

4

GASKET, SLAVE CYLINDER

22862-MGJ-D00

$4.98

4

GASKET, SLAVE CYLINDER This part replaces 22862-MW7-650.

22862-MGJ-D00

$4.98

5

PISTON, SLAVE CYLINDER

22863-MJ8-003

$26.65

6

SPRING, SLAVE CYLINDER

22864-MT7-016

$6.21

7

CUP, SLAVE CYLINDER

22865-MJ8-003

$11.50

8

HOLDER, FINAL SHAFT BEARING

23751-MCS-000

$28.21

9

SENSOR ASSY., SPEED

37700-MCS-003

$128.89

10

WASHER, SEALING (8.5MM)

90463-MCS-000

$2.25

11

BEARING, NEEDLE (14X22X16)

91106-KM1-013

$19.13

12

OIL SEAL (28X45X7)

91201-MV1-003

$7.32

13

OIL SEAL (14X22X5)

91203-KK3-830

$3.81

14

OIL SEAL (8X25X8) (ARAI)

91204-MB0-013

$4.06

15

OIL SEAL (8X18X5)

91209-MB0-003

$4.06

16

O-RING (18.1X3.6)

91302-MAL-601

$3.53

17

O-RING (66MM)

91351-881-000

$4.61

18

PIN, DOWEL (8X10)

94301-08100

$2.25

19

PIN, DOWEL (10X16)

94303-10160

$2.34

20

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

21

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

22

BOLT, FLANGE (8X28)

95701-08028-00

$1.49

23

BOLT, FLANGE (8X32)

95701-08032-00

$1.49

24

BOLT, FLANGE (8X40)

95701-08040-00

$1.49

25

BOLT, FLANGE (8X75)

95701-08075-00

$2.67

26

BOLT, FLANGE (8X85)

95701-08085-00

$2.48

27

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

28

BEARING, RADIAL BALL (6206)

96100-62063-00

$19.49
