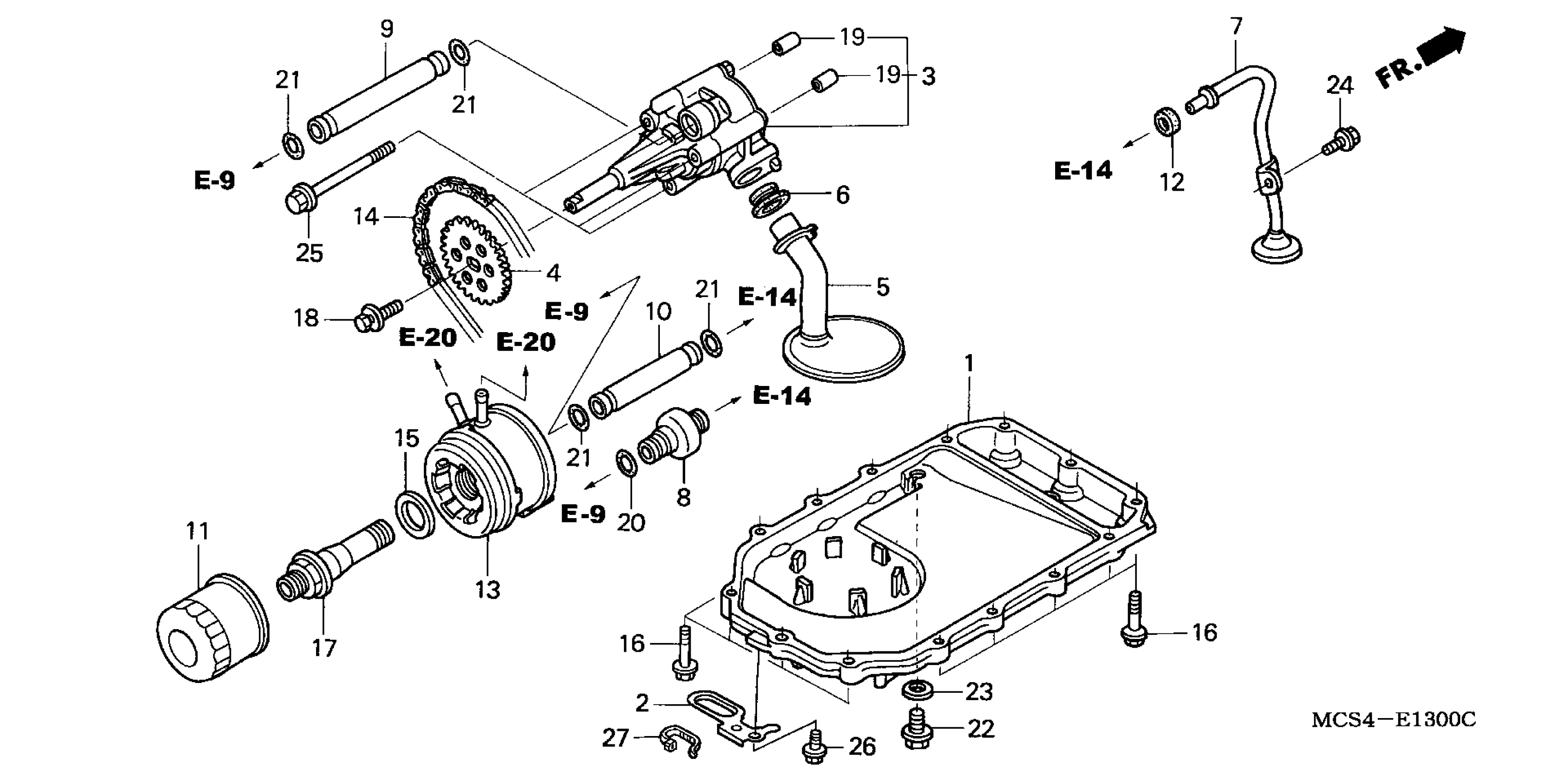

Honda ST1300A (06) ST1300, JPN, VIN# JH2SC510-6M400001 OIL PUMP + OIL PAN Diagram

PAN, OIL

11210-MCS-010

$243.07

CLAMP A, DRAIN HOSE

11211-MCS-010

$4.02

PUMP ASSY., OIL

15100-MCS-010

$199.62

SPROCKET, OIL PUMP DRIVEN (30T)

15134-MCS-000

$42.59

STRAINER, OIL

15150-MCS-000

$37.10

GASKET, OIL STRAINER

15154-MM5-000

$6.60

PIPE, OIL SCAVENGING

15160-MCS-000

$53.77

VALVE ASSY., RELIEF

15220-MW0-000

$40.77

PIPE A, OIL PASSAGE

15311-MCS-000

$14.16

PIPE B, OIL PASSAGE

15312-MCS-000

$12.54

FILTER, OIL (WAKO FILTER) This part replaces 15410-MCJ-003.

15410-MFJ-D02

$15.84

FILTER, OIL (WAKO FILTER) This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$15.84

SEAL, RING

15433-KGB-610

$2.72

COOLER, OIL

15700-MCS-003

$278.21

CHAIN, WATER PUMP DRIVE (70L)

19225-MCS-003

$30.56

WASHER, SPRING (24MM)

23929-PX4-700

$13.02

BOLT, FLANGE (6X28) (NSHF)

90004-GHB-680

$3.33

BOLT, OIL COOLER

90019-MCJ-000

$31.69

BOLT-WASHER (6X12)

90021-MM5-000

$5.12

PIN, DOWEL (8X14)

90501-MB0-000

$3.11

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.67

O-RING (14.8X2.2)

91313-MG7-004

$3.67

OIL SEAL, PASSAGE PIPE (20.3MM)

91315-MCS-003

$2.92

BOLT, DRAIN PLUG (14MM)

90004-MCS-000

$2.92

WASHER, DRAIN PLUG (14MM)

94109-14000

$1.49

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

BOLT, FLANGE (6X80)

95701-06080-00

$2.34

BOLT, FLANGE (6X10)

95701-06010-00

$1.49
