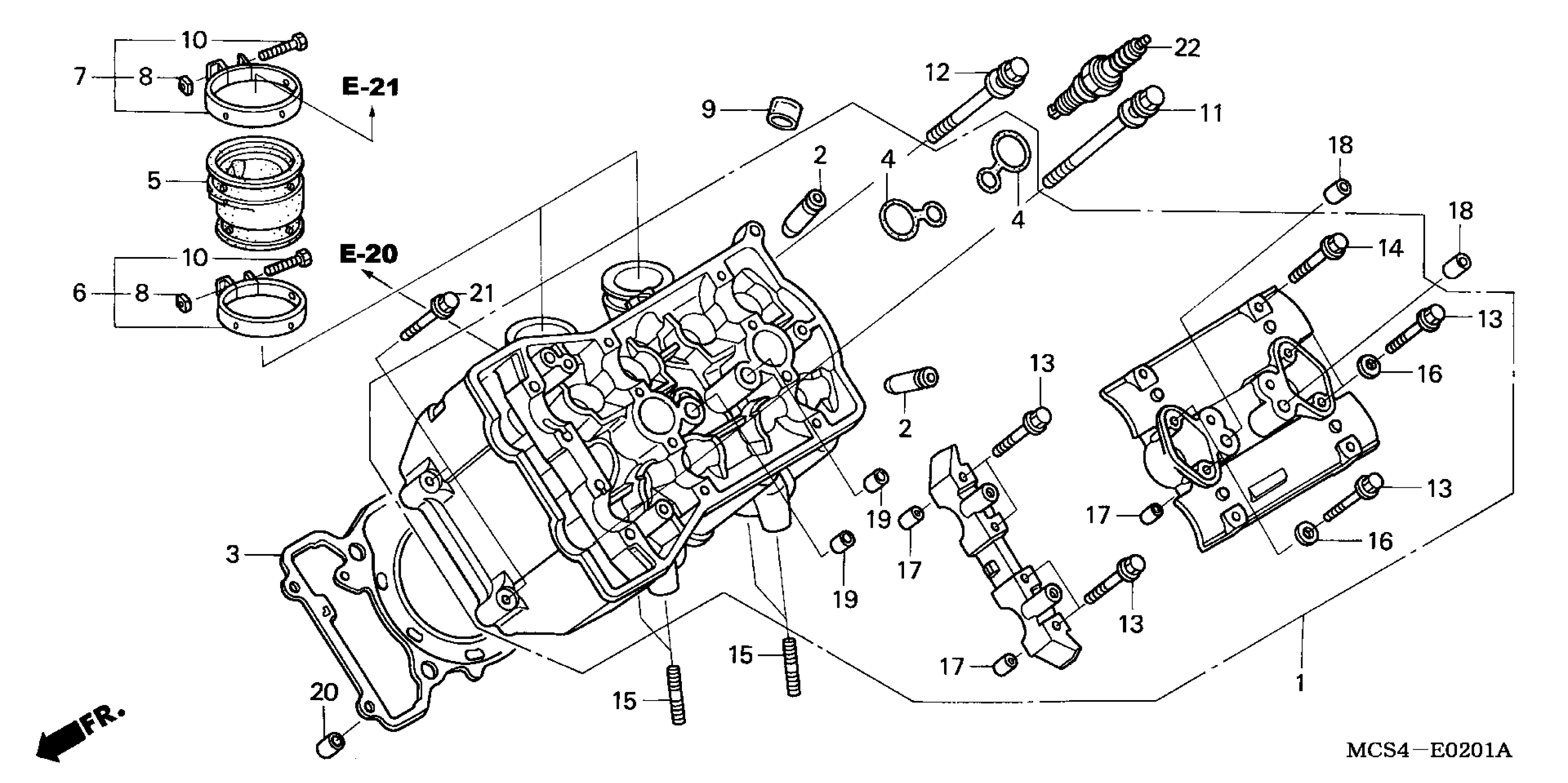

Honda ST1300A (06) ST1300, JPN, VIN# JH2SC510-6M400001 LEFT CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY., L.

12020-MCS-000

Unavailable

2

GUIDE, VALVE (OVER SIZE)

12205-MCS-305

$17.34

3

GASKET, L. CYLINDER HEAD

12252-MCS-003

$67.92

4

GASKET, PLUG HOLE

12395-MCS-000

$5.21

5

INSULATOR, THROTTLE BODY

16211-MCS-000

$20.48

6

BAND A, INSULATOR

16217-MCS-000

$4.30

7

BAND B, INSULATOR

16218-MCS-000

$4.97

8

NUT, SQUARE (5MM)

16222-MV4-300

$2.15

9

TUBE, BRAKE PEDAL SPRING

46515-MN1-670

$3.26

10

BOLT, RECESSED (5X28)

90005-MAS-E00

$3.20

11

BOLT-WASHER (10X105)

90007-MAT-000

$10.79

12

BOLT-WASHER (10X90)

90007-MCS-000

$5.56

13

BOLT, FLANGE (6X48)

90018-425-000

$3.35

14

BOLT, FLANGE (6X39.5)

90019-MA6-000

$2.92

15

BOLT, STUD (8X24)

90035-MM5-000

$5.12

16

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

17

PIN, DOWEL (8X16) This part replaces 90702-HC4-000.

94301-08160

$1.98

17

PIN, DOWEL (8X16)

94301-08160

$1.98

18

PIN, DOWEL (8X14)

94301-08140

$2.25

19

PIN, DOWEL (10X16)

94301-10160

$2.28

20

PIN, DOWEL (12X20)

94301-12200

$2.29

21

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

22

SPARK PLUG (CR7EH9) (NGK)

98059-57916

$7.24

22

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-57926.

98059-59916

$8.09

22

SPARK PLUG (CR8EH9) (NGK) | (Optional).

98059-58916

$8.09

22

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-58926.

98059-59916

$8.09

22

SPARK PLUG (CR9EH-9) (NGK) | (Optional). This part replaces 98059-58926.

98059-59916

$8.09

22

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-59910.

98059-59916

$8.09

22

SPARK PLUG (CR9EH-9) (NGK) | (Optional). This part replaces 98059-59910.

98059-59916

$8.09

22

SPARK PLUG (CR9EH-9) (NGK)

98059-59916

$8.09

22

SPARK PLUG (CR9EH-9) (NGK) | (Optional).

98059-59916

$8.09

22

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-59926.

98059-59916

$8.09

22

SPARK PLUG (CR9EH-9) (NGK) | (Optional). This part replaces 98059-59926.

98059-59916

$8.09
