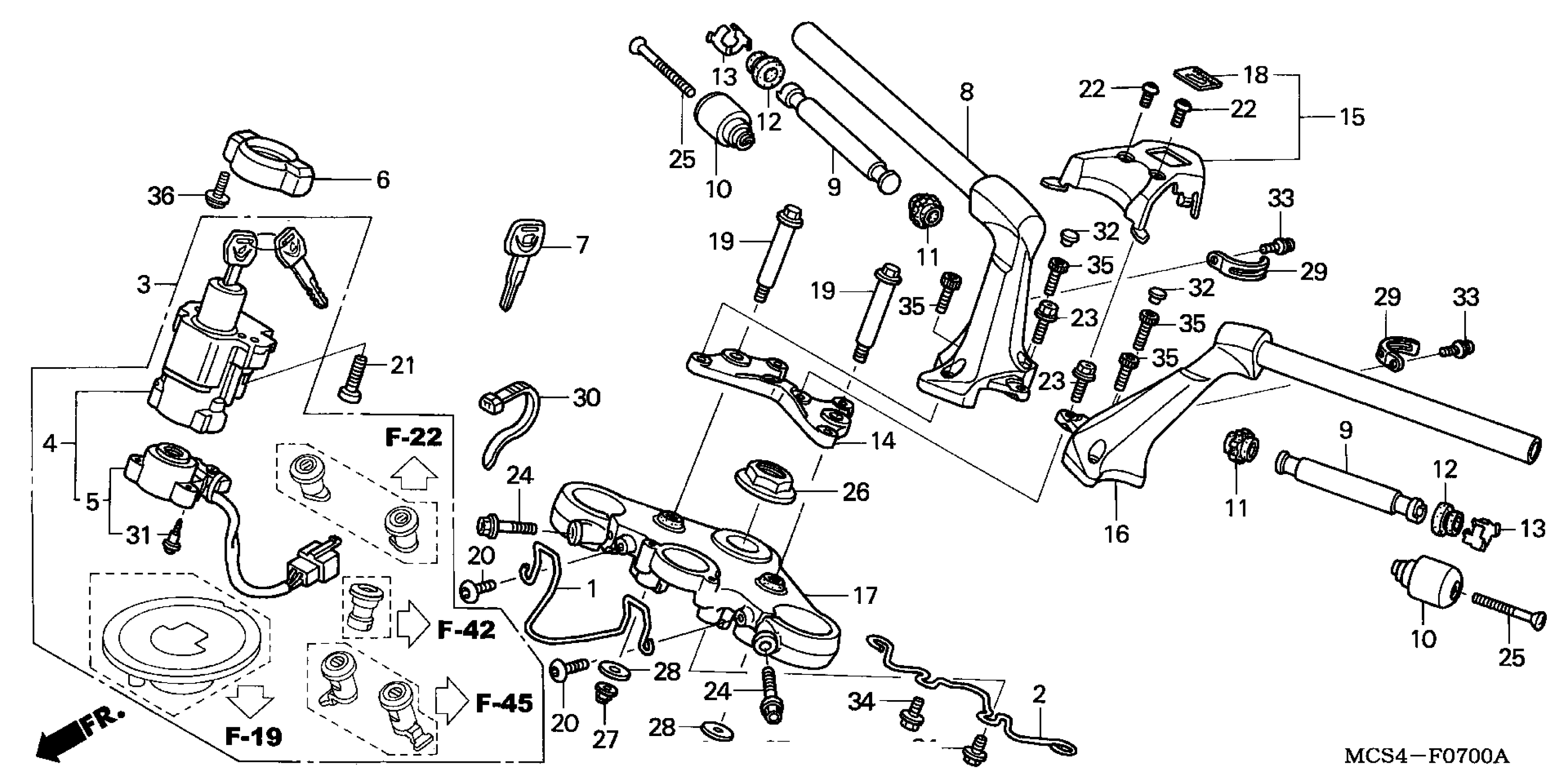

Honda ST1300A (06) ST1300, JPN, VIN# JH2SC510-6M400001 HANDLEBAR + TOP BRIDGE Diagram

#

Description
Price

1

GUIDE, THROTTLE CABLE

17970-MCS-G00

$10.87

2

GUIDE, WIRE HARNESS

17980-MCS-G00

$8.66

3

KEY SET This part replaces 35010-MCS-L00.

35010-MCS-L02

$509.30

3

KEY SET This part replaces 35010-MCS-L01.

35010-MCS-L02

$509.30

4

SWITCH ASSY., COMBINATION & LOCK

35100-MCS-L01

$166.51

5

BASE, CONTACT

35101-MCS-G01

$74.33

6

COVER, COMBINATION SWITCH

35106-MCS-L00

$10.81

7

KEY, BLANK | (Optional).

35121-MAS-G01

$12.74

8

HANDLEBAR, R. *NH295M* (SPARKLING SILVER METALLIC)

53100-MCS-G00ZA

Unavailable

9

WEIGHT B, HANDLEBAR

53105-KV3-000

$17.27

10

WEIGHT, HANDLEBAR

53105-MCS-G00

$21.19

11

RUBBER A, HANDLE WEIGHT

53106-MJ0-000

$3.92

12

RUBBER B, HANDLE WEIGHT

53107-MJ0-000

$3.77

13

RING, HANDLE WEIGHT SNAP

53108-MJ0-000

$5.14

14

SPACER, HANDLE

53111-MCS-G00

$43.11

15

COVER, HANDLE *NH295M* (SPARKLING SILVER METALLIC)

53115-MCS-G00ZA

$69.75

16

HANDLEBAR, L. *NH295M* (COO) (SPARKLING SILVER METALLIC) This part replaces 53150-MCS-G00ZA.

53150-MCS-305ZA

$305.62

16

HANDLEBAR, L. *NH295M* (COO) (SPARKLING SILVER METALLIC)

53150-MCS-305ZA

$305.62

17

BRIDGE, FORK TOP

53300-MCS-G00

$239.59

18

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.62

19

BOLT, SPECIAL (8MM)

90104-MCC-000

$5.04

20

SCREW, PAN (6X12)

90106-MAV-000

$2.18

21

BOLT, ONE-WAY (8MM)

90107-MBG-000

$2.92

22

SCREW, SPECIAL (4X6.5)

90136-MCS-G00

$2.66

23

BOLT, FLANGE (8X18)

90137-MCS-G00

$8.02

24

BOLT, FLANGE (8X40)

90165-MCJ-000

$2.43

25

BOLT, SOCKET (6X70)

90191-MAJ-G00

$2.97

26

NUT, STEERING STEM

90304-MK3-000

$16.34

27

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

27

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

28

WASHER, HANDLE CUSHION

90535-KB9-000

$6.14

29

CLIP (4X50)

90601-KJ9-000

$3.08

30

BAND, WIRE (95MM)

90650-KV6-003

$3.12

31

SCREW, TAPPING (3X16)

91059-KY2-711

$2.97

32

CAP, SOCKET BOLT (8MM)

91455-MB0-010

$3.77

33

SCREW-WASHER (5X8)

93891-05008-00

$1.49

34

BOLT, FLANGE (6X10)

96300-06010-00

$1.49

34

BOLT, FLANGE (6X10) This part replaces 96500-06010-00.

96300-06010-00

$1.49

35

BOLT, SOCKET (8X20)

96700-08020-00

$1.80

35

BOLT, SOCKET (8X20) This part replaces 96700-08020-10.

96700-08020-00

$1.80

36

SCREW-WASHER (5X28)

90020-MCS-G00

$1.62
