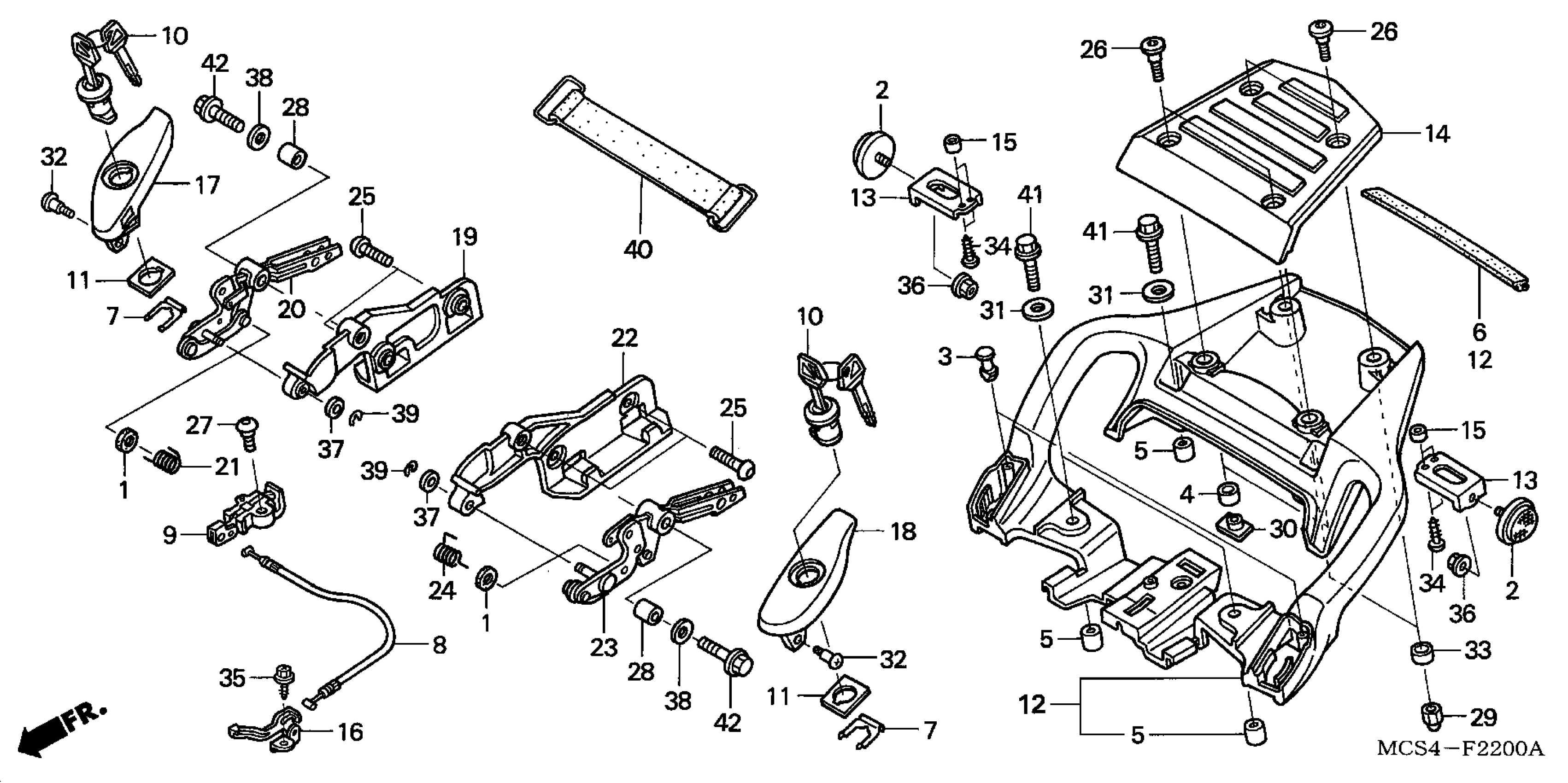

Honda ST1300A (06) ST1300, JPN, VIN# JH2SC510-6M400001 GRAB RAIL Diagram

#

Description
Price

1

RUBBER, RADIATOR MOUNTING

19113-MB1-870

$3.22

2

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$11.90

3

PLUG, HEAD PIPE

50049-046-000

$1.86

4

COLLAR (8.3)

50618-MN8-000

$2.65

5

COLLAR, TOP BRIDGE

53236-171-000

$2.20

6

RUBBER, SEAL

64121-MCS-G00

$3.70

7

SPRING, LOCK KEY SETTING

75581-GN8-920

$4.47

8

CABLE, SEAT LOCK

77156-MCS-G00

$8.99

9

HOOK, SEAT CATCH

77220-KY6-010

$26.19

10

LOCK ASSY., GRAB RAIL LEVER

77226-MCS-G00

$15.86

11

WASHER, SEAT LOCK

77236-GZ5-000

$2.78

12

GRAB RAIL, RR. *NH295M* (SPARKLING SILVER METALLIC)

77310-MCS-770ZA

$274.49

13

STAY, SIDE REFLECTOR

77312-MCS-770

$2.66

14

COVER, GRAB RAIL CENTER

77313-MCS-G00

$22.94

15

COLLAR, REFLECTOR

77316-MCS-770

$1.78

16

OPENER, SEAT

77330-MCS-G00

$8.64

17

LEVER, R. GRAB RAIL *NH295M* (SPARKLING SILVER METALLIC)

77340-MCS-G00ZB

$14.23

18

LEVER, L. GRAB RAIL *NH295M* (SPARKLING SILVER METALLIC)

77350-MCS-G00ZB

$17.23

19

HOLDER, R. SADDLEBAG

84240-MCS-G00

$56.09

20

LEVER, R. SADDLEBAG LOCK

84260-MCS-G00

$53.64

21

SPRING, R. GRAB RAIL LEVER

84273-MCS-G00

$3.09

22

HOLDER, L. SADDLEBAG

84340-MCS-G00

$56.07

23

LEVER, L. SADDLEBAG LOCK

84360-MCS-G00

$53.64

24

SPRING, L. GRAB RAIL LEVER

84373-MCS-G00

$3.25

25

BOLT, SOCKET (8X22)

90100-GCT-J50

$1.77

26

SCREW, SPECIAL (6X19)

90104-MN4-000

$5.39

27

SCREW, SPECIAL (6MM)

90106-MBL-610

$2.03

28

COLLAR, SADDLEBAG HOLDER PIVOT

90123-MCS-G00

$2.70

29

NUT, CAP (6MM)

90201-425-700

$3.93

30

NUT, SPECIAL (6X7)

90303-HA0-680

$3.57

31

WASHER (8.5X20)

90526-GB0-930

$1.90

32

SCREW, SPECIAL PAN (5MM)

91422-KFT-620

$1.30

33

COLLAR, DISTANCE (8.1X12X9)

91501-766-000

$2.80

34

SCREW-WASHER (4X20)

93893-04020-07

$0.83

35

SCREW, TAPPING (4X12)

93903-24320

$0.83

36

NUT, FLANGE (6MM)

94050-06000

$0.59

37

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

37

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

37

WASHER, PLAIN (6MM)

94101-06800

Unavailable

38

WASHER, PLAIN (8MM)

94102-08800

$0.86

39

E-RING (4MM)

94540-04010

$1.88

40

BAND F, BATTERY (155MM)

95012-17001

$6.72

41

BOLT, FLANGE (8X32)

96300-08032-00

$1.48

42

BOLT, FLANGE (8X32)

96400-08032-00

$2.07
