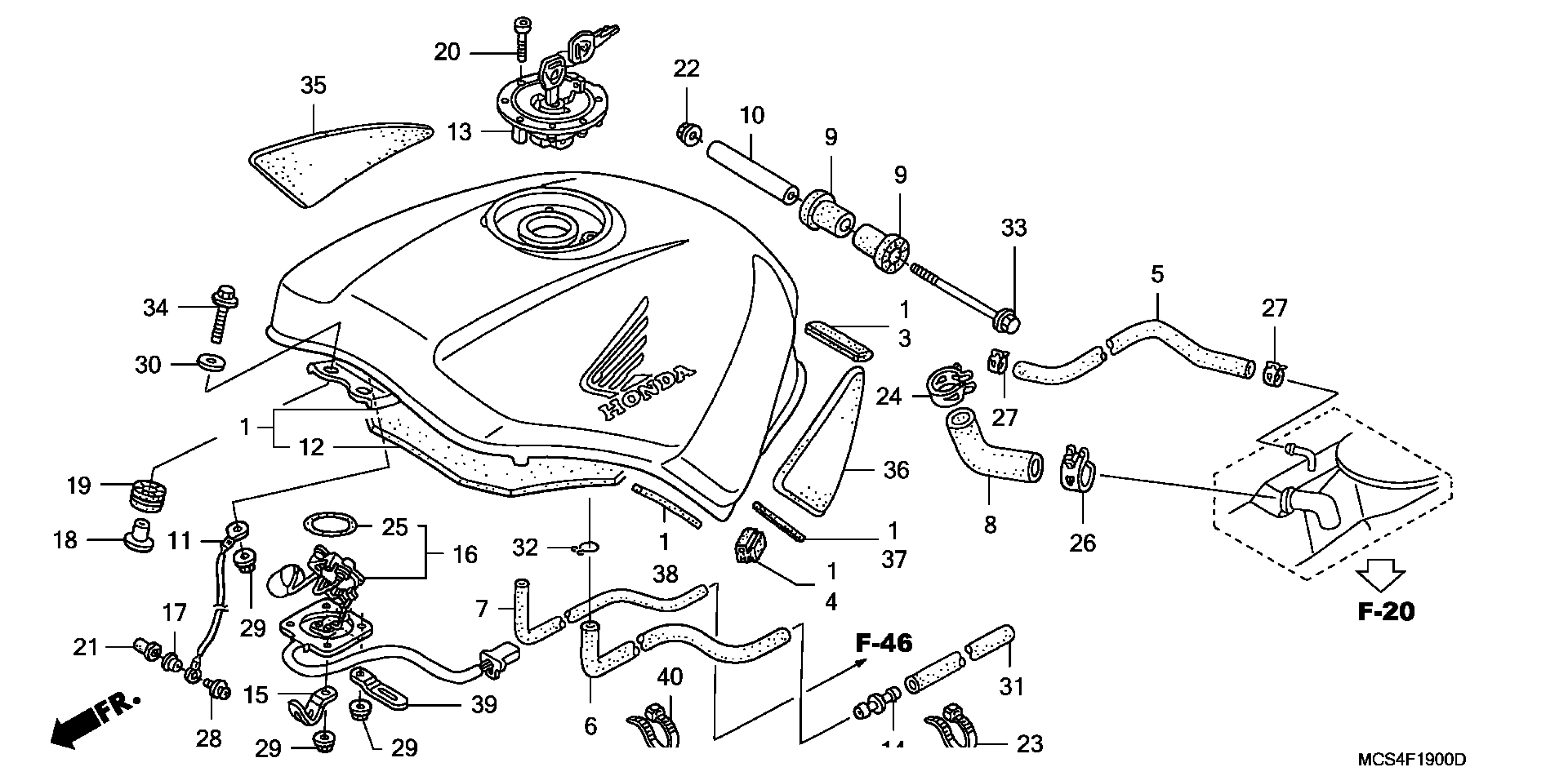

Honda ST1300A (06) ST1300, JPN, VIN# JH2SC510-6M400001 FUEL TANK Diagram

TANK SET, FUEL (TYPE2) (WL)

17500-MCS-D70ZA

Unavailable

TRIM, FUEL TANK

17516-HC0-000

$4.49

CUSHION, FUEL TANK

17514-MCS-G00

$4.07

BULK HOSE, FUEL (5.5X3000) (5.3X300)

95001-55003-60M

$42.48

HOSE, FUEL RETURN

17525-MCS-G02

$24.43

TUBE, DRAIN

17543-MCS-L00

$12.46

TUBE, BREATHER

17544-MCS-L01

Unavailable

TUBE, FUEL JOINT

17545-MCS-G00

$8.20

CUSHION, RR. FUEL TANK PIVOT

17548-MCS-G00

$5.16

COLLAR, TANK SETTING

17549-MCS-G00

$4.45

CABLE, FUEL TANK STOPPER

17575-MCS-G01

$7.49

MAT, FUEL TANK

17590-MCS-G00

$10.94

CAP, FUEL FILLER This part replaces 17620-MAS-E02.

17620-MAS-E04

$184.25

CAP, FUEL FILLER This part replaces 17620-MAS-E03.

17620-MAS-E04

$184.25

JOINT, BREATHER TUBE

17359-419-670

$1.87

CLIP, SUB-WIRE

32901-MA1-000

$4.74

FUEL UNIT SET

37080-MCS-G00

$102.35

COLLAR, RIVETING

61102-329-300

$2.80

COLLAR, SETTING

61104-422-000

$6.44

RUBBER, TAILLIGHT MOUNTING

84703-425-000

$4.40

BOLT, SOCKET (4X21)

90074-MT4-000

$2.83

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.20

NUT, U (6MM) (FUSE RASHI)

90301-473-003

$3.79

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.80

CLIP, HEATER HOSE (30MM)

90661-SL0-A01

$22.58

O-RING (39.5X5)

91305-MC7-000

Unavailable

CLAMP, TUBE (D23.6)

91405-MCS-G00

$3.91

CLAMP, FUEL HOSE (D10.5)

91406-SL4-931

$4.54

CLAMP, TUBE (D10)

95002-41000-08

$2.13

SCREW-WASHER (5X20)

93891-05020-00

$0.96

NUT, FLANGE (6MM)

94050-06080

$0.59

WASHER, PLAIN (6MM)

94103-06700

$0.65

BULK HOSE, FUEL (7.5X8000) (7.3X700)

95001-75008-60M

$93.20

CLIP, TUBE (B12)

95002-02120

Unavailable

BOLT, FLANGE (6X115)

95701-06115-08

$3.38

BOLT, FLANGE (6X28)

96001-06028-07

$1.38

PAD, R. KNEE GRIP

17506-MCS-G01

$34.48

PAD, L. KNEE GRIP

17507-MCS-G01

$34.48

MAT D, HEAT GUARD

64368-MCS-G00

$1.23

MAT E, HEAT GUARD

64369-MCS-G00

$2.43

CLAMP A, TUBE

17522-MCW-D00

$1.70

BAND, WIRE (95MM)

90650-KV6-003

$2.90
